IJK Bearing Range — Quick Reference
IJK produces precision ball bearings — self-aligning, angular contact, deep groove and specialty bearings — engineered for industrial machinery, conveyors and rotating equipment. The self-aligning designs accommodate shaft deflection; angular contact designs handle axial loads in addition to radial. Used in mining, manufacturing and processing plant environments.
| IJK Bearing Type | Series | Best For |
|---|---|---|
| Self-Aligning Ball Bearings | 1200, 1300, 2200, 2300 series | Shaft deflection accommodation — long shafts, machinery with alignment tolerance |
| Angular Contact Ball Bearings | 7000, 7200, 7300 series | Combined radial + axial load — pump shafts, machine tool spindles |
| Deep Groove Ball Bearings | 6000, 6200, 6300 series | Standard radial load applications — electric motors, fans, pumps |
| Sealed Bearing Variants (2NSE / 2RS) | Per series — contact rubber seal both sides | Standard environments — workshop default |
| Shielded Bearing Variants (ZZ) | Per series — metal shield both sides | Higher-temp + dirty applications, lower friction than rubber seal |
| Snap-Ring Variants (N) | Bearing with external snap-ring groove | Axial location via external circlip — simplifies housing design |
| C3 Internal Clearance Variants | Per series — wider internal clearance | Thermal expansion accommodation, motor bearings |
IJK bearings cross-reference directly to SKF, NSK, NTN, NACHI and Koyo equivalents — a 7204 IJK fits the same housing/shaft as 7204 SKF/NSK/etc. Boundary dimensions per ISO 15 / ISO 355. For complete bearings range, see bearings, angular contact bearings. For cross-referencing, see our bearing cross-reference guide.
IJK Self-Aligning & Angular Contact Ball Bearings
IJK produces precision ball bearings engineered for industrial machinery, conveyor systems and rotating equipment. Their self-aligning and angular contact designs accommodate shaft deflection and axial loads — critical performance requirements in mining, manufacturing and processing plant environments. AIMS Industrial sells IJK bearings for Australia-wide delivery to maintenance workshops, OEM assemblers and plant engineering teams.
IJK Precision Ball Bearings
The IJK range at AIMS Industrial covers two core bearing families — self-aligning ball bearings and angular contact ball bearings — available in sealed, shielded and open configurations to match specific operating conditions and lubrication requirements.

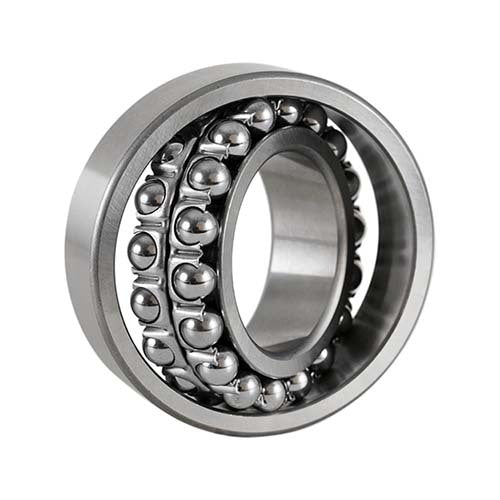

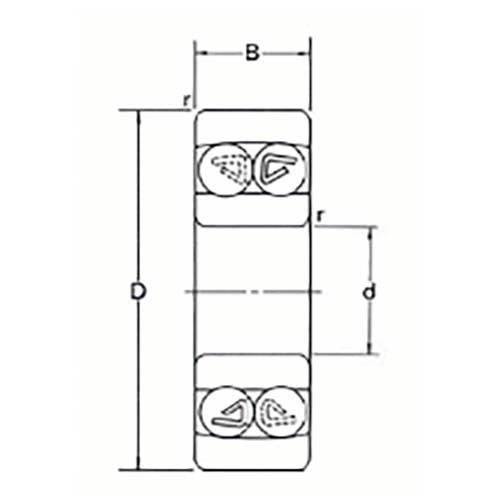

- IJK Self-Aligning Ball Bearing (Sealed): A double-row self-aligning ball bearing with integral contact seals that retain lubricant and exclude contaminants. The self-aligning inner ring compensates for shaft deflection and housing misalignment up to several degrees, making it suited to applications where perfect shaft alignment is difficult to maintain.
- IJK Angular Contact Ball Bearing (Sealed): A sealed angular contact ball bearing designed to support combined radial and axial loads in a single direction. The contact angle provides thrust capacity essential for spindle assemblies, pump shafts and gearbox input shafts operating under constant axial preload.
- IJK Angular Contact Ball Bearing (Shielded): Shielded angular contact bearing offering contamination protection with lower running torque. Specified in applications such as electric motor drives, fan assemblies and light-duty gearboxes where axial load support and low friction are both required.
- IJK Angular Contact Ball Bearing (Open): Open configuration angular contact bearing for use in oil-bath or externally lubricated housings. The open design allows unrestricted lubricant flow around the raceway, making it suited to high-speed or high-temperature applications with dedicated lubrication systems.
Buy IJK bearings at AIMS Industrial alongside our complete range of Bearings, NSK, and Nachi collections.
Order online, Contact our team for assistance or to Request a quote.
