SIT Boiler Tube Brush 22 mm, BTB22 | BTB22
Available

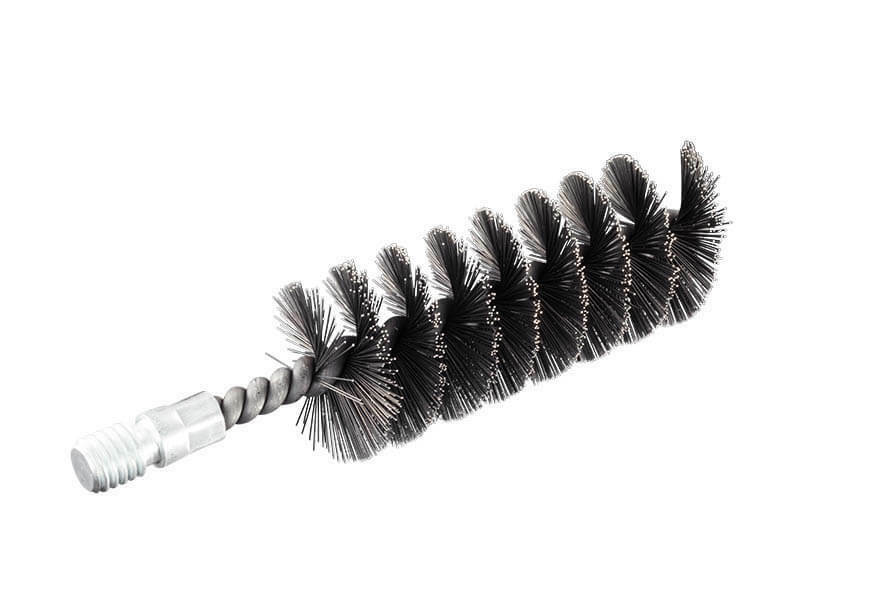

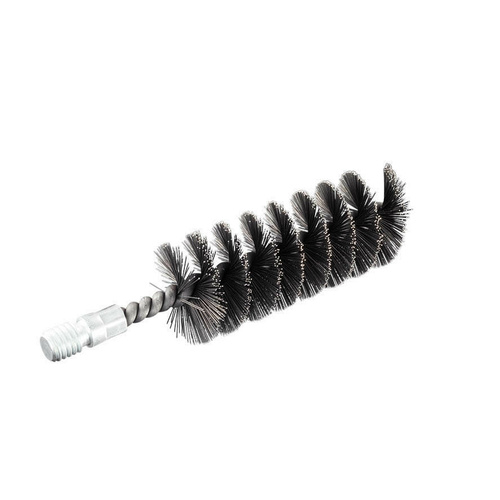

Condenser and boiler tube brushes are bound with a spiral held together with a wire core, and are made for cleaning the inside of pipes, including threaded pipe and O ring slots. This boiler tube brush comes in 20 diameters from 22 mm to 127 mm, all with a 1/2 in BSW thread.
The spiral of tempered steel gives a greater brush density, and the brush removes rust and residue and soft or hard deposits. A 1.5 m flexible extension is available (BTBEXT), which attaches to the threaded section of the brush. Fit the brush to a drill chuck only at extremely low speed, below 80 rpm: the brush will bend or snap at higher speeds.
Where this product is used
- Boiler tube cleaning
- Removing rust and residue
- Removing soft or hard deposits
- Cleaning pipes, threaded pipe and O ring slots
Features
- 20 diameters, from 22 mm to 127 mm
- Steel wire
- 1/2 in BSW thread
- 210 mm overall length, 120 mm bristle length
- Use at extremely low speed, below 80 rpm
- Fits the 1.5 m flexible extension
- Made in Italy
Key specifications
| Specification | Detail |
|---|---|
| Brand | SIT |
| Brush type | Boiler tube brush |
| Wire | Steel |
| Diameters | 22 mm, 25 mm, 28 mm, 32 mm, 38 mm, 41 mm, 47 mm, 50 mm, 56 mm, 60 mm, 64 mm, 66 mm, 70 mm, 73 mm, 76 mm, 82 mm, 89 mm, 95 mm, 100 mm and 127 mm |
| Overall length | 210 mm |
| Bristle length | 120 mm |
| Maximum drill speed | Below 80 rpm |
| Origin | Italy |
Options and part numbers
| Diameter | Part number | Thread | Overall length | Bristle length |
|---|---|---|---|---|
| 22 mm | BTB22 | 1/2 in BSW | 210 mm | 120 mm |
| 25 mm | BTB25 | 1/2 in BSW | 210 mm | 120 mm |
| 28 mm | BTB28 | 1/2 in BSW | 210 mm | 120 mm |
| 32 mm | BTB32 | 1/2 in BSW | 210 mm | 120 mm |
| 38 mm | BTB38 | 1/2 in BSW | 210 mm | 120 mm |
| 41 mm | BTB41 | 1/2 in BSW | 210 mm | 120 mm |
| 47 mm | BTB47 | 1/2 in BSW | 210 mm | 120 mm |
| 50 mm | BTB50 | 1/2 in BSW | 210 mm | 120 mm |
| 56 mm | BTB56 | 1/2 in BSW | 210 mm | 120 mm |
| 60 mm | BTB60 | 1/2 in BSW | 210 mm | 120 mm |
| 64 mm | BTB64 | 1/2 in BSW | 210 mm | 120 mm |
| 66 mm | BTB66 | 1/2 in BSW | 210 mm | 120 mm |
| 70 mm | BTB70 | 1/2 in BSW | 210 mm | 120 mm |
| 73 mm | BTB73 | 1/2 in BSW | 210 mm | 120 mm |
| 76 mm | BTB76 | 1/2 in BSW | 210 mm | 120 mm |
| 82 mm | BTB82 | 1/2 in BSW | 210 mm | 120 mm |
| 89 mm | BTB89 | 1/2 in BSW | 210 mm | 120 mm |
| 95 mm | BTB95 | 1/2 in BSW | 210 mm | 120 mm |
| 100 mm | BTB100 | 1/2 in BSW | 210 mm | 120 mm |
| 127 mm | BTB127 | 1/2 in BSW | 210 mm | 120 mm |
Selecting the right option
Choose the diameter to suit the inside of the tube. For long pipes, add the 1.5 m flexible extension, which attaches to the threaded section of the brush. Fit the brush to a drill chuck only at extremely low speed, below 80 rpm: the brush will bend or snap at higher speeds. Wear eye protection and gloves when brushing, because wire can break off during use.
Related products
See also SIT Boiler Tube Brush Flexible Extension 1.5m BTBEXT, SIT Steel Condenser Tube Brush, 6mm to 25mm and SIT Brass Condenser Tube Brush, 6mm to 25mm.
