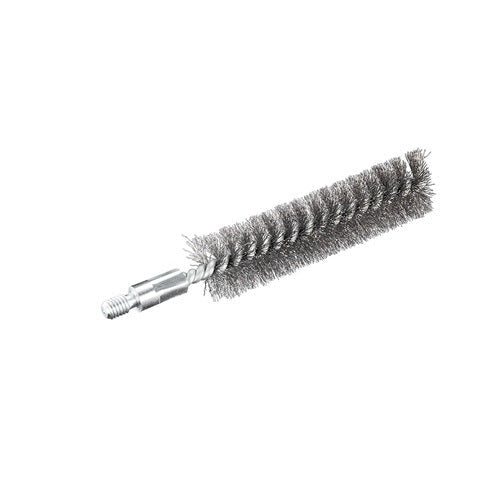

SIT Steel Tube Brush 6 mm, CTBS6 | CTBS6
Available
Condenser and boiler tube brushes are bound with a spiral held together with a wire core, and are made for cleaning the inside of pipes, including threaded pipe and O ring slots. This steel version comes in 8 diameters from 6 mm to 25 mm, with a 3/16 in BSW thread on the smaller sizes and a 5/16 in BSW thread from 13 mm up. The 11 mm size is listed separately.
Fit the brush to a drill chuck only at extremely low speed, below 80 rpm: the brush will bend or snap at higher speeds. Condenser tube brushes are often pulled through a pipe on fishing line or similar.
Where this product is used
- Condenser tube cleaning
- Heat exchanger tube cleaning
- Cleaning pipes, threaded pipe and O ring slots
- Boiler and heat exchanger servicing
Features
- 8 diameters, from 6 mm to 25 mm
- Steel wire
- 3/16 in or 5/16 in BSW thread, by size
- 210 mm overall length, 120 mm bristle length
- Use at extremely low speed, below 80 rpm
- Made in Italy
Key specifications
| Specification | Detail |
|---|---|
| Brand | SIT |
| Brush type | Condenser tube brush |
| Wire | Steel |
| Diameters | 6 mm, 8 mm, 10 mm, 13 mm, 14 mm, 16 mm, 19 mm and 25 mm |
| Overall length | 210 mm |
| Bristle length | 120 mm |
| Maximum drill speed | Below 80 rpm |
| Origin | Italy |
Options and part numbers
| Diameter | Part number | Thread | Overall length | Bristle length |
|---|---|---|---|---|
| 6 mm | CTBS6 | 3/16 in BSW | 210 mm | 120 mm |
| 8 mm | CTBS8 | 3/16 in BSW | 210 mm | 120 mm |
| 10 mm | CTBS10 | 3/16 in BSW | 210 mm | 120 mm |
| 13 mm | CTBS13 | 5/16 in BSW | 210 mm | 120 mm |
| 14 mm | CTBS14 | 5/16 in BSW | 210 mm | 120 mm |
| 16 mm | CTBS16 | 5/16 in BSW | 210 mm | 120 mm |
| 19 mm | CTBS19 | 5/16 in BSW | 210 mm | 120 mm |
| 25 mm | CTBS25 | 5/16 in BSW | 210 mm | 120 mm |
Selecting the right option
Choose the diameter to suit the inside of the tube, and the thread to suit your rod or drill fitting: 3/16 in BSW on the smaller sizes and 5/16 in BSW from 13 mm up. Fit the brush to a drill chuck only at extremely low speed, below 80 rpm: the brush will bend or snap at higher speeds. Condenser tube brushes are often pulled through a pipe on fishing line or similar. Wear eye protection and gloves when brushing, because wire can break off during use.
Related products
See also SIT Brass Condenser Tube Brush, 6mm to 25mm, SIT Steel Condenser Tube Brush 11mm, 3/16 in BSW CTBS11 and SIT Boiler Tube Brush, 22mm to 127mm - 1/2 in BSW.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
SIT Steel Condenser Tube Brush, 6mm to 25mm: 6
SKU: A0115616 | Model: CTBS6
Diameter (mm) 6. SIT Steel Condenser Tube Brush - Steel
Manufacturers- Welders- DIY
High-quality condenser tube brush features spiraled Stainless Steel wire.
Ideal for removing residue build-up & rust from condenser tubes & holes.
Key Points
Ideal for light-duty cleaning of internal pipes and bolier tubes.
Suitable for hand use or fitted to a drill at low speed.
Always wear protective clothing & follow your tool's safety instructions.
Never exceed the maximum RPM of 80.
