Description

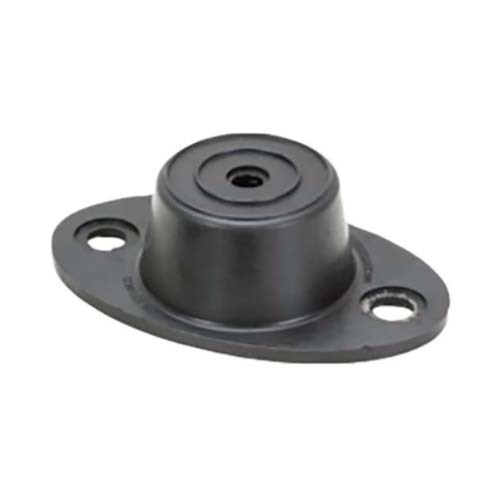

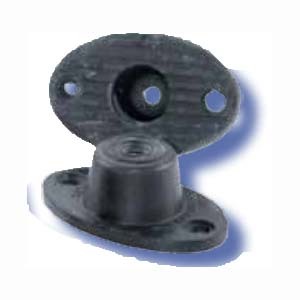

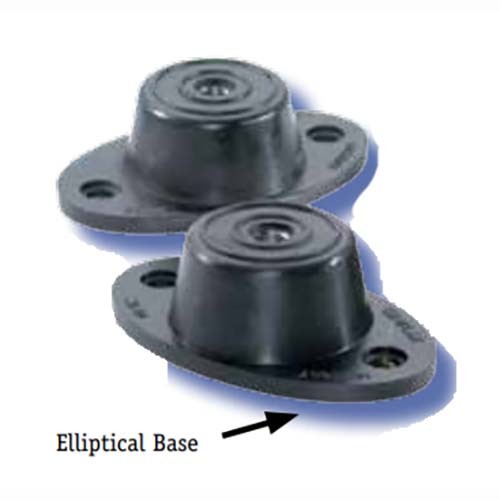

Mackay Conflex Isolator Small HD

  • Conflex isolators are designed to meet almost all machinery installations within the load range.
  • Available in four rubber hardnesses (Duro) they are the versatile answer to your mobile or static vibration problems.
  • Rubber base for anti-skid when used without bolting base to the floor.

Specifications

  • AIMS SKU A0167917
  • Brand Mackay
  • Model Number M1111D35
  • Barcode Number 9313699030427
  • Thread Size M8
  • Weight (kg) 0.095
  • Hole Diameter 8.5 mm
  • Head Diameter (mm) 31
  • Width 50 mm
  • Length in (mm) 80
  • Height Size (mm) 38
  • Centre To Centre 60 mm
  • Duro 35
  • Compression Max Load (kg) 40
  • Deflection at Max Load (mm) 8
  • Type Conflex Isolator
  • Material Rubber
SKU: A0167917

Mackay M1111D35 Conflex Isolator Small HD 35 Duro 80 x 50 x 38mm Load 40kg
