Description

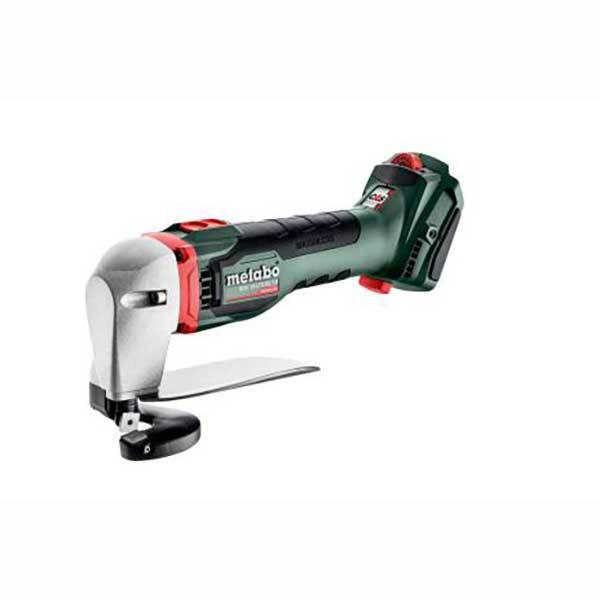

Metabo SCV 18 LTX BL 1.6 Cordless Metal Sheet Shears

  • Very handy and manoeuvrable cordless sheet-metal shears for burr-free cutting of sheet metal on site.
  • Maximum cornering ability, for comfortable cutting of narrow radii from 15mm.
  • Faster working, thanks to the efficient brushless motor.
  • Infinitely adjustable cutting speed for individual customisation to the given material and task at hand.
  • Comfortable handling thanks to low weight, slim grip area and switch located on the top.
  • Blade spacing can be flexibly adjusted to different sheet thicknesses.
  • Economical four-way reversible blade, with the highest cut quality.
  • Maximum safety in every cutting direction, thanks to large hand guard.
  • Electronic overload protection for long service life.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • 2 reversible blades
  • without battery pack, without charger
  • Feeler gauge
  • 2 Hexagonal wrenches

Technical Data

  • Battery voltage: 18V
  • Max. sheet thickness for steel: 400 N/mm²: 1.6mm / 0.0629"
  • Strokes in idle:1350 - 4840 rpm
  • Smallest curve radius: 15 mm / 0.5905"

Characteristics

Type of battery pack Li-Power
Battery voltage 18 V
Max. sheet thickness for steel: 400 N/mm² 1.6 mm / 0.0629 "
Max. sheet thickness for steel: 600 N/mm2 1.2 mm / 0.0472 "
Max. sheet thickness for steel: 800 N/mm2 0.7 mm / 0.0275 "
Max. sheet thickness for aluminium: 250 N/mm2 2 mm / 0.0787 "
Strokes in idle 1350 - 4840 rpm
Cutting speed 7 m/min // 275 inch/min
Starting hole diameter 27 mm / 1.0629 "
Smallest curve radius 15 mm / 0.5905 "
Weight without battery pack 1.4 kg / 3.1 lbs
Weight with battery pack 1.8 kg / 4 lbs

Vibration

Cutting of sheets 7.6 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 74 dB(A)
Sound power level (LwA) 85 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0174945
  • Brand Metabo
  • Model Number 601615850
  • Barcode Number 4061792183353
  • Type Metal Sheet Shears
SKU: A0174945

Metabo 18V 1.6mm Brushless Metal Sheet Shears - (Tool Only) 601615850

Metabo SCV 18 LTX BL 1.6 Cordless Metal Sheet Shears

$730.11
