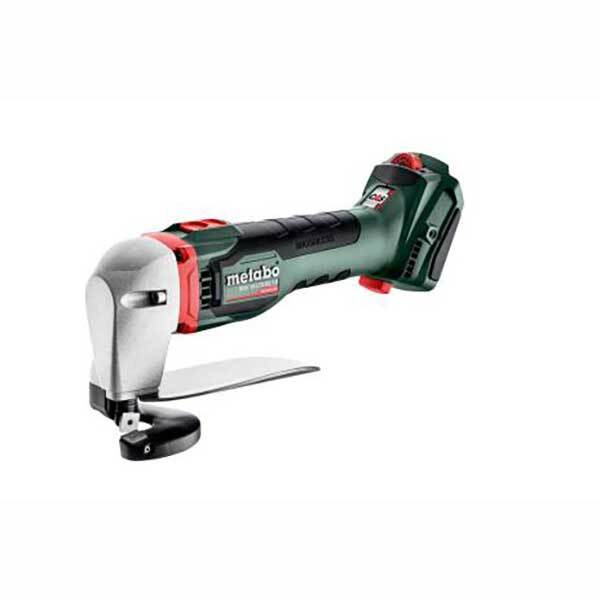

Metabo SCV 18 LTX BL 1.6 Cordless Metal Sheet Shears

• Very handy and manoeuvrable cordless sheet-metal shears for burr-free cutting of sheet metal on site.
• Maximum cornering ability, for comfortable cutting of narrow radii from 15mm.
• Faster working, thanks to the efficient brushless motor.
• Infinitely adjustable cutting speed for individual customisation to the given material and task at hand.
• Comfortable handling thanks to low weight, slim grip area and switch located on the top.
• Blade spacing can be flexibly adjusted to different sheet thicknesses.
• Economical four-way reversible blade, with the highest cut quality.
• Maximum safety in every cutting direction, thanks to large hand guard.
• Electronic overload protection for long service life.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• 2 reversible blades
• without battery pack, without charger
• Feeler gauge
• 2 Hexagonal wrenches

Technical Data

• Battery voltage: 18V
• Max. sheet thickness for steel: 400 N/mm²: 1.6mm / 0.0629"
• Strokes in idle:1350 - 4840 rpm
• Smallest curve radius: 15 mm / 0.5905"

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Max. sheet thickness for steel: 400 N/mm²
1.6 mm / 0.0629 "
Max. sheet thickness for steel: 600 N/mm2
1.2 mm / 0.0472 "
Max. sheet thickness for steel: 800 N/mm2
0.7 mm / 0.0275 "
Max. sheet thickness for aluminium: 250 N/mm2
2 mm / 0.0787 "
Strokes in idle
1350 - 4840 rpm
Cutting speed
7 m/min // 275 inch/min
Starting hole diameter
27 mm / 1.0629 "
Smallest curve radius
15 mm / 0.5905 "
Weight without battery pack
1.4 kg / 3.1 lbs
Weight with battery pack
1.8 kg / 4 lbs

Vibration

Cutting of sheets
7.6 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
74 dB(A)
Sound power level (LwA)
85 dB(A)
Uncertainty of measurement K
3 dB(A)
