9 mm x 10-16 mm Worm Drive Hose Clamp, 304 Stainless Steel - HCWA2000
Available

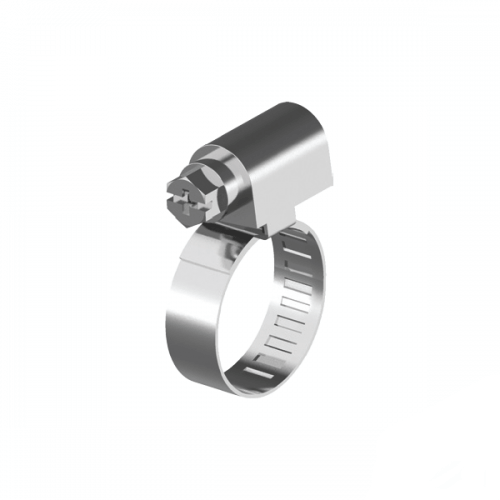

This 304 stainless steel worm drive hose clamp is a stainless band clamp with a worm screw. Turning the screw tightens the band around a hose on a spigot or fitting.
Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4).
This listing has 17 variants covering sizes 9 mm to 12 mm. Variants are supplied in packs of 5 to 10, depending on size.
In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Food-service and light food-handling equipment
- Water, air and low-pressure fluid lines
- Indoor architectural and joinery work
- Kitchen, bathroom and laundry fixtures
- Securing hoses to spigots and fittings
Features
- Band width and diameter range shown on each variant
- Supplied in packs of 5 to 10
- Worm drive screw adjusts the clamp diameter
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Choice of 17 sizes, 9 mm to 12 mm
Key specifications
| Specification | Detail |
|---|---|
| Product | Worm Drive Hose Clamp |
| Type | Stainless band clamp with a worm screw |
| Material | A2 (304) stainless steel |
| Listed variants | 17 |
| Key features | Worm drive screw adjusts the clamp diameter; Band width and diameter range shown on each variant |
| Typical environment | Indoor, fresh water and general outdoor use |
| Sizes | 9 mm to 12 mm |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Pack size | 5 to 10, by size |
Selecting the right option
Choose a clamp whose diameter range covers the hose diameter on the fitting. Sizes are shown as clamp width and diameter range on the variant. Do not over-tighten, which can cut the hose.
Related products
Also available: 16-27 x 9mm 304 Stainless Steel Size 0 Worm Drive Hose Clamp Box of 10.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

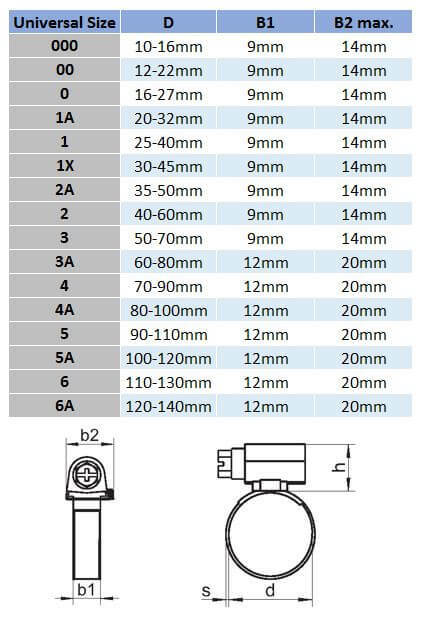

9 / 10-16
Model Number: HCWA2000
-
9 / 12-22
Model Number: HCWA200
-
9 / 16-27
Model Number: HCWA20
-
9 / 20-32
Model Number: HCWA21A
-
9 / 25-40
Model Number: HCWA21
-
9 / 30-45
Model Number: HCWA21X
-
9 / 35-50
Model Number: HCWA22A
-
9 / 40-60
Model Number: HCWA22
-
9 / 50-70
Model Number: HCWA23
-
12 / 70-90
Model Number: HCWA24
-
12 / 60- 80
Model Number: HCWA23A
-
12 / 80-100
Model Number: HCWA24A
-
12 / 90-110
Model Number: HCWA25
-
12 / 100-120
Model Number: HCWA25A
-
12 / 110-130
Model Number: HCWA26
-
12 / 120-140
Model Number: HCWA26A
-
9 / 8-12
Model Number: HCWA20000
