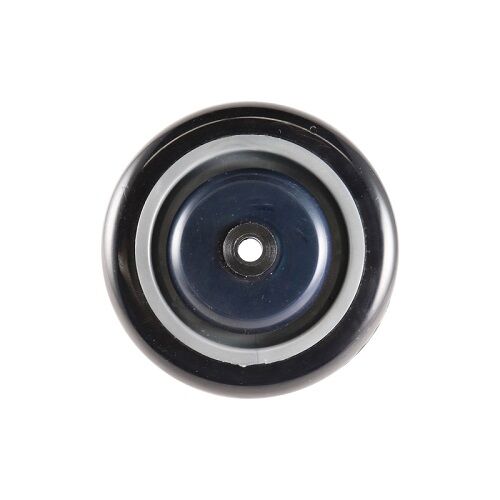

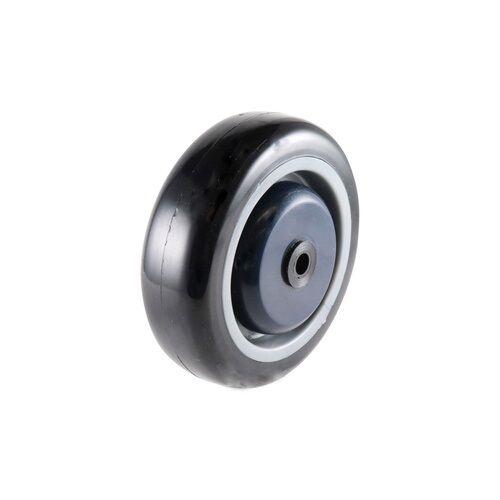

EasyRoll Urethane Wheel - Ball Bearing, Nylon Centre, Grey, 100 mm | W64B100

The EasyRoll grey urethane wheel with a nylon centre is a 100 mm wheel with ball bearings, a 32 mm tread and an 8 mm bore. The load capacity is 100 kg per wheel (manufacturer-stated).

EHI rates polyurethane wheels as follows: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. EHI describes it as the best all-round choice and suited to all surfaces, including irregular ones. Ratings are EHI general guidance for the wheel material (manufacturer-stated).

Where this product is used

• Trolleys and carts that cross mixed floor surfaces
• Equipment moved over irregular floors
• Replacing worn or damaged wheels
• Workshop, warehouse and factory equipment

Features

• 100 mm diameter, 32 mm tread
• Load capacity 100 kg per wheel (manufacturer-stated)
• Ball bearings
• Nylon centre
• Polyurethane wheel material, rated by EHI for shock absorbency, load capacity and floor protection (manufacturer-stated)

Key specifications

Selecting the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Ball bearings are compact, simple bearing units, with balls rolling between the inner and outer rings in a moulded sheet metal housing (manufacturer-stated). Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
