14M HTD Taper Lock Timing Pulley - Grey Cast Iron
14M HTD Taper Lock Timing Pulley - Grey Cast Iron

Finer Power 14M HTD Taper Lock Timing Pulley, 28 / 40

$217.18
$217.18
Inc. GST

Available

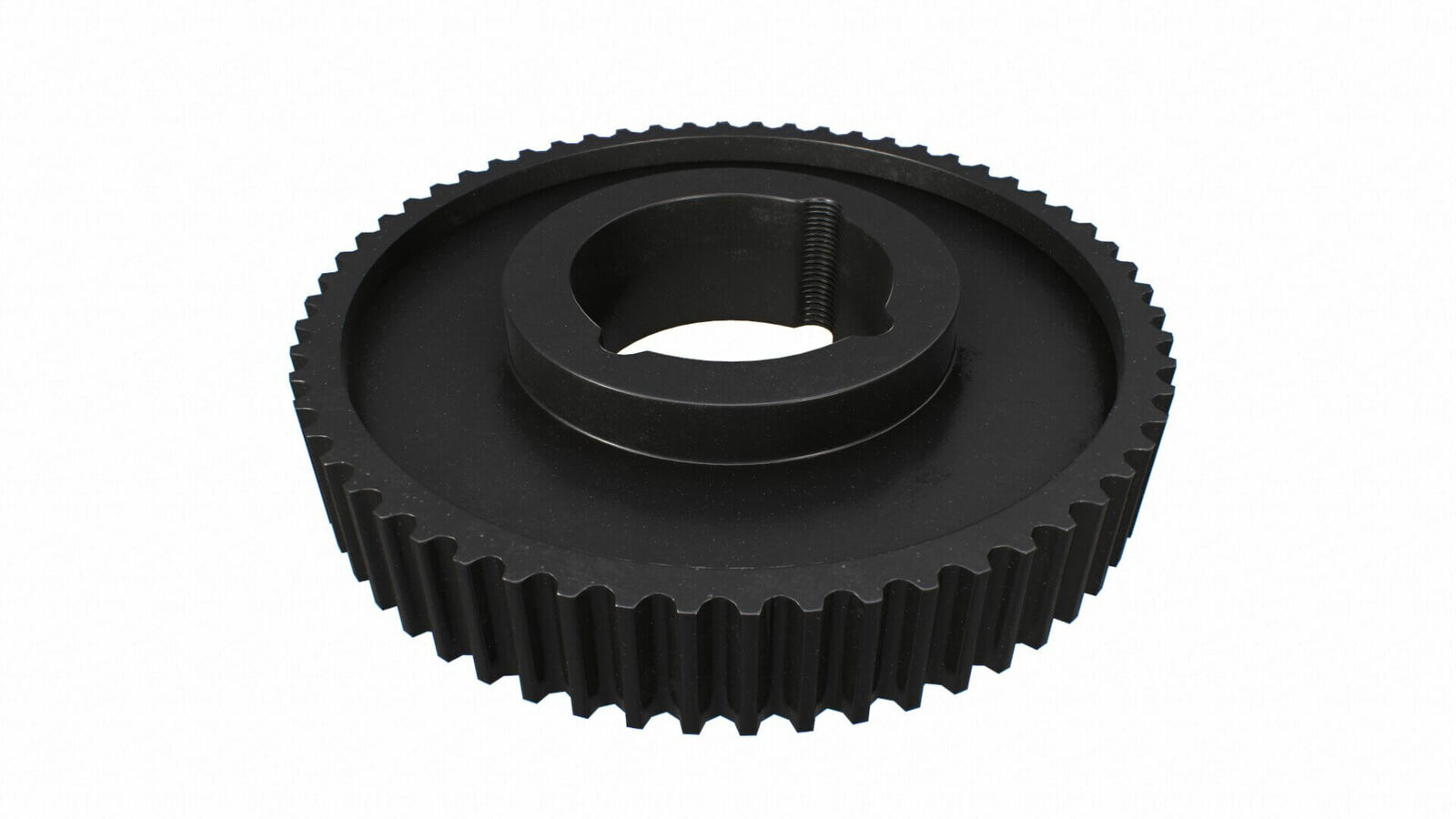

These are 14M HTD taper lock timing pulleys in grey cast iron for HTD belts with a 14mm pitch. The range covers 81 models from 28 to 216 teeth, for 40, 55, 85 and 115mm wide belts.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The last number in each model code is the belt width in millimetres.

Where this product is used

  • Synchronous drives where the driven shaft must keep in step with the driver
  • Indexing and positioning drives
  • Conveyor and material handling drives
  • Machinery drives with torque loads that would make a V-belt slip
  • Replacement pulleys on existing 14M HTD belt drives

Features

  • Taper lock hub that takes a separately sold taper lock bush
  • HTD tooth profile with a 14mm pitch for 14M HTD belts
  • Grey cast iron construction
  • 28 to 216 teeth, for 40, 55, 85 and 115mm wide belts
  • Bush series 2012, 2517, 3020, 3030, 3525, 3535 and 4040, with the maximum bore for every model
  • Pitch diameter, outside diameter and pulley width for every model

Key specifications

Specification Detail
Belt profile 14M HTD (14mm pitch)
Teeth 28 to 216
Belt widths 40, 55, 85 and 115mm
Pitch diameter 124.78 to 962.57mm
Outside diameter 122.12 to 959.76mm
Material Grey cast iron
Bore type Taper lock (bush sold separately)
Bush series 2012, 2517, 3020, 3030, 3525, 3535, 4040
Maximum bore 50 to 100mm (depends on the bush)
Pulley width 54 to 133mm

Sizes available

Model Teeth Belt (mm) Bush Max bore (mm) Pitch dia. (mm) Outside dia. (mm) Pulley width (mm)
28-14M-40TL 28 40 2012 50 124.78 122.12 54
28-14M-55TL 28 55 2012 50 124.78 122.12 70
28-14M-55TL 28 55 2012 50 124.78 122.12 70
28-14M-85TL 28 85 2517 60 124.78 122.12 102
28-14M-115TL 28 115 2517 60 124.78 122.12 133
29-14M-40TL 29 40 2012 50 129.23 126.57 54
29-14M-55TL 29 55 2012 50 129.23 126.57 70
29-14M-85TL 29 85 2517 60 129.23 126.57 102
29-14M-115TL 29 115 2517 60 129.23 126.57 133
30-14M-40TL 30 40 2012 50 133.69 130.99 54
30-14M-55TL 30 55 2517 60 133.69 130.99 70
30-14M-85TL 30 85 2517 60 133.69 130.99 102
30-14M-115TL 30 115 2517 60 133.69 130.99 133
32-14M-40TL 32 40 2012 50 142.6 139.88 54
32-14M-55TL 32 55 2517 60 142.6 139.88 70
32-14M-85TL 32 85 2517 60 142.6 139.88 102
32-14M-115TL 32 115 2517 60 142.6 139.88 133
34-14M-40TL 34 40 2517 60 151.52 148.79 54
34-14M-55TL 34 55 2517 60 151.52 148.79 70
34-14M-85TL 34 85 2517 60 151.52 148.79 102
34-14M-115TL 34 115 2517 60 151.52 148.79 133
36-14M-40TL 36 40 2517 60 160.43 157.68 54
36-14M-55TL 36 55 2517 60 160.43 157.68 70
36-14M-85TL 36 85 3020 75 160.43 157.68 102
36-14M-115TL 36 115 3020 75 160.43 157.68 133
38-14M-40TL 38 40 2517 60 169.34 166.6 54
38-14M-55TL 38 55 2517 60 169.34 166.6 70
38-14M-85TL 38 85 3020 75 169.34 166.6 102
38-14M-115TL 38 115 3020 75 169.34 166.6 133
40-14M-40TL 40 40 2517 60 178.25 175.49 54
40-14M-55TL 40 55 2517 60 178.25 175.49 70
40-14M-85TL 40 85 3020 75 178.25 175.49 102
40-14M-115TL 40 115 3020 75 178.25 175.49 133
44-14M-40TL 44 40 3020 75 196.08 193.28 54
44-14M-55TL 44 55 3020 75 196.08 193.28 70
44-14M-85TL 44 85 3030 75 196.08 193.28 102
44-14M-115TL 44 115 3030 75 196.08 193.28 133
48-14M-40TL 48 40 3020 75 213.9 211.11 54
48-14M-55TL 48 55 3020 75 213.9 211.11 70
48-14M-85TL 48 85 3030 75 213.9 211.11 102
48-14M-115TL 48 115 3030 75 213.9 211.11 133
56-14M-40TL 56 40 3020 75 249.55 246.76 54
56-14M-55TL 56 55 3020 75 249.55 246.76 70
56-14M-85TL 56 85 3535 90 249.55 246.76 102
56-14M-115TL 56 115 3535 90 249.55 246.76 133
64-14M-40TL 64 40 3020 75 285.21 282.41 54
64-14M-55TL 64 55 3020 75 285.21 282.41 70
64-14M-85TL 64 85 3525 90 285.21 282.41 102
64-14M-115TL 64 115 3535 90 285.21 282.41 133
72-14M-40TL 72 40 3020 75 320.86 318.06 54
72-14M-55TL 72 55 3020 75 320.86 318.06 70
72-14M-85TL 72 85 3535 90 320.86 318.06 102
72-14M-115TL 72 115 3535 90 320.86 318.06 133
80-14M-40TL 80 40 3535 90 356.51 353.71 54
80-14M-55TL 80 55 3020 75 356.51 353.71 70
80-14M-85TL 80 85 3525 90 356.51 353.71 102
80-14M-115TL 80 115 3535 90 356.51 353.71 133
90-14M-40TL 90 40 3020 75 401.07 398.28 54
90-14M-55TL 90 55 3020 75 401.07 398.28 70
90-14M-85TL 90 85 3525 90 401.07 398.28 102
90-14M-115TL 90 115 3535 90 401.07 398.28 133
112-14M-40TL 112 40 3020 75 499.11 496.32 54
112-14M-55TL 112 55 3020 75 499.11 496.32 70
112-14M-85TL 112 85 3525 90 499.11 496.32 102
112-14M-115TL 112 115 3535 90 499.11 496.32 133
144-14M-40TL 144 40 3020 75 641.71 638.92 54
144-14M-55TL 144 55 3020 75 641.71 638.92 70
144-14M-85TL 144 85 3535 90 641.71 638.92 102
144-14M-115TL 144 115 4040 100 641.71 638.92 133
168-14M-40TL 168 40 3020 75 748.66 745.87 54
168-14M-55TL 168 55 3020 75 748.66 745.87 70
168-14M-85TL 168 85 3525 90 748.66 745.87 102
168-14M-115TL 168 115 4040 100 748.66 745.87 133
192-14M-40TL 192 40 3020 75 855.62 852.82 54
192-14M-55TL 192 55 3020 75 855.62 852.82 70
192-14M-85TL 192 85 4040 100 855.62 852.82 102
192-14M-115TL 192 115 4040 100 855.62 852.82 133
216-14M-40TL 216 40 3020 75 962.57 959.76 54
216-14M-55TL 216 55 3535 90 962.57 959.76 70
216-14M-85TL 216 85 4040 100 962.57 959.76 102
216-14M-115TL 216 115 4040 100 962.57 959.76 133

Choosing the right option

Choose the pulley by belt profile (14M HTD), belt width and number of teeth. Divide the driven teeth by the driver teeth to find the speed ratio. Both pulleys on a drive must have the same tooth pitch as the belt.

Then choose the bush. Where two series are, either fits. Order a bush of that series with the bore and keyway you need: see the metric cast iron taper lock bushes or imperial cast iron taper lock bushes, or the metric steel taper lock bushes or imperial steel taper lock bushes.

Fit the bush in the pulley hub, slide the assembly onto the shaft and align the pulley with its mating pulley. Check the two pulleys are in line with a straight edge before fitting the belt.

Fit the belt by moving the shafts closer together, not by levering it over the flanges or teeth.

Option Part number SKU
28 / 40 28-14M-40TL A0059795
28 / 55 28-14M-55TL A0059796
28 / 85 28-14M-85TL A0059798
28 / 115 28-14M-115TL A0059794
29 / 40 29-14M-40TL A0059800
29 / 55 29-14M-55TL A0059801
29 / 85 29-14M-85TL A0059802
29 / 115 29-14M-115TL A0059799
30 / 40 30-14M-40TL A0059804
30 / 55 30-14M-55TL A0059805
30 / 85 30-14M-85TL A0059806
30 / 115 30-14M-115TL A0059803
32 / 40 32-14M-40TL A0059808
32 / 55 32-14M-55TL A0059809
32 / 85 32-14M-85TL A0059810
32 / 115 32-14M-115TL A0059807
34 / 40 34-14M-40TL A0059812
34 / 55 34-14M-55TL A0059813
34 / 85 34-14M-85TL A0059814
34 / 115 34-14M-115TL A0059811
36 / 40 36-14M-40TL A0059816
36 / 55 36-14M-55TL A0059817
36 / 85 36-14M-85TL A0059818
36 / 115 36-14M-115TL A0059815
38 / 40 38-14M-40TL A0059820
38 / 55 38-14M-55TL A0059821
38 / 85 38-14M-85TL A0059822
38 / 115 38-14M-115TL A0059819
40 / 40 40-14M-40TL A0059824
40 / 55 40-14M-55TL A0059825
40 / 85 40-14M-85TL A0059826
40 / 115 40-14M-115TL A0059823
44 / 40 44-14M-40TL A0059828
44 / 55 44-14M-55TL A0059829
44 / 85 44-14M-85TL A0059830
44 / 115 44-14M-115TL A0059827
48 / 40 48-14M-40TL A0059832
48 / 55 48-14M-55TL A0059833
48 / 85 48-14M-85TL A0059834
48 / 115 48-14M-115TL A0059831
56 / 40 56-14M-40TL A0059836
56 / 55 56-14M-55TL A0059837
56 / 85 56-14M-85TL A0059838
56 / 115 56-14M-115TL A0059835
64 / 40 64-14M-40TL A0059840
64 / 55 64-14M-55TL A0059841
64 / 85 64-14M-85TL A0059842
64 / 115 64-14M-115TL A0059839
72 / 40 72-14M-40TL A0059844
72 / 55 72-14M-55TL A0059845
72 / 85 72-14M-85TL A0059846
72 / 115 72-14M-115TL A0059843
80 / 40 80-14M-40TL A0059848
80 / 55 80-14M-55TL A0059849
80 / 85 80-14M-85TL A0059850
80 / 115 80-14M-115TL A0059847
90 / 40 90-14M-40TL A0059852
90 / 55 90-14M-55TL A0059853
90 / 85 90-14M-85TL A0059854
90 / 115 90-14M-115TL A0059851
112 / 40 112-14M-40TL A0059775
112 / 55 112-14M-55TL A0059776
112 / 85 112-14M-85TL A0059777
112 / 115 112-14M-115TL A0059774
144 / 40 144-14M-40TL A0059779
144 / 55 144-14M-55TL A0059780
144 / 85 144-14M-85TL A0059781
144 / 115 144-14M-115TL A0059778
168 / 40 168-14M-40TL A0059783
168 / 55 168-14M-55TL A0059784
168 / 85 168-14M-85TL A0059785
168 / 115 168-14M-115TL A0059782
192 / 40 192-14M-40TL A0059787
192 / 55 192-14M-55TL A0059788
192 / 85 192-14M-85TL A0059789
192 / 115 192-14M-115TL A0059786
216 / 40 216-14M-40TL A0059791
216 / 55 216-14M-55TL A0059792
216 / 85 216-14M-85TL A0059793
216 / 115 216-14M-115TL A0059790
28-28-14M-55TL / 55 28-14M-55TL A0059797
Product Highlights −

These are 14M HTD taper lock timing pulleys in grey cast iron for HTD belts with a 14mm pitch. The range covers 81 models from 28 to 216 teeth, for 40, 55, 85 and 115mm wide belts.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The last number in each model code is the belt width in millimetres.
