Reach Locking Assembly, 180 x 235 mm
Available

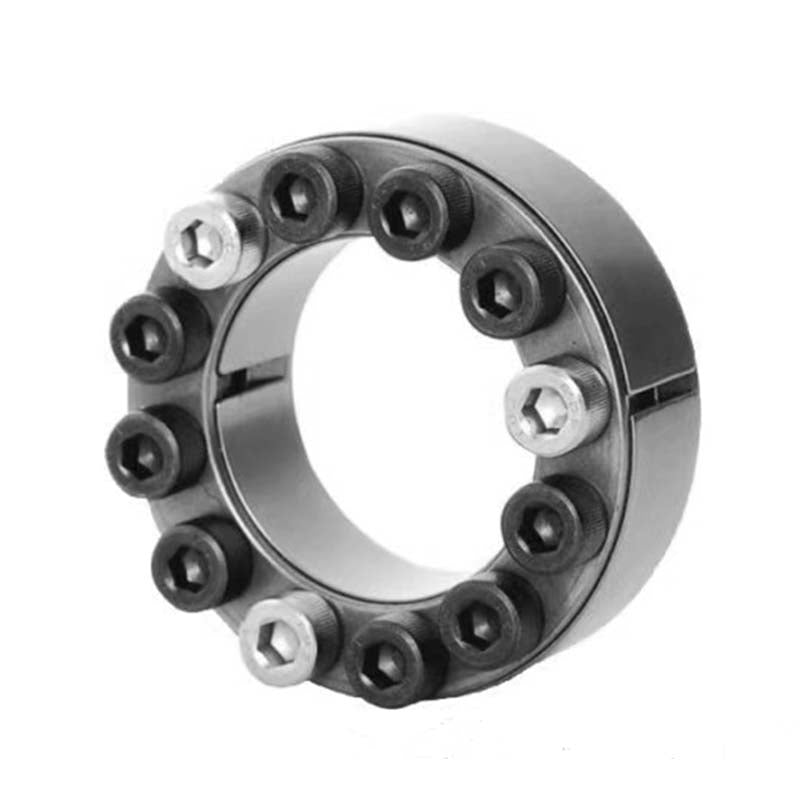

Reach 180 x 235mm locking assembly is a keyless shaft-to-hub connection for a 180mm shaft, with a 235mm outside diameter. Tightening the locking screws converts the clamp load into radial contact pressure on both the shaft and the bore of the mounted component. The result is a zero-backlash interference fit with no keyway or grub screws needed.
Where this product is used
- Mounting large sprockets, pulleys, gears and couplings on 180mm shafts without a keyway
- Shaft-to-hub connections that need zero backlash
Features
- Keyless: no keyways or grub screws required
- Zero-backlash mechanical interference fit
- 180mm shaft diameter, 235mm outside diameter
- Large-format assembly for heavy shafts
Key specifications
| Specification | Detail |
|---|---|
| Brand | Reach |
| Product type | Locking Assembly |
| Model | 7009-180X235 |
| Shaft diameter (d) | 180mm |
| Outside diameter (D) | 235mm |
Fitting and use
Fit the assembly between a clean shaft and hub bore, then tighten the locking screws evenly to the torque specified for the assembly.
Choosing the right option
Choose this size for a 180mm shaft and a 235mm hub bore.
180 x 235mm sizes in the Type 01 and Type 07 ranges.
See also: Reach Type 01 locking assembly, Reach Type 07 self-centering locking assembly.
