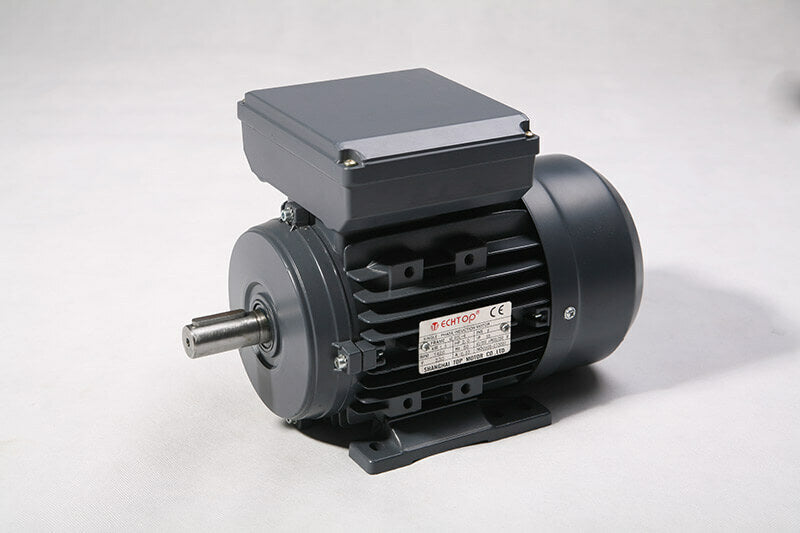

Dual Voltage Cap Start/Cap Run Motor (TA4B0229TML/480)

Description +

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Aluminium Body
Wattage: 2.2kW
Poles: 4
Power: Dual Voltage (240/480V)
Mounting: Foot & Flange(B3/B14A)
Frame: 100 LA
RPM: 1430
Shaft: 28mm
Full Load Amperage (FLA): 12.1 / 6.0A
Motors up to 2.2kW are fitted with manual reset overload

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Dual Voltage Cap Start/Cap Run Motor

SKU: A0098163

Type: Electric Motor

$721.52

Inc. GST

Buy It Now

Available

FREE SHIPPING OVER $299*
