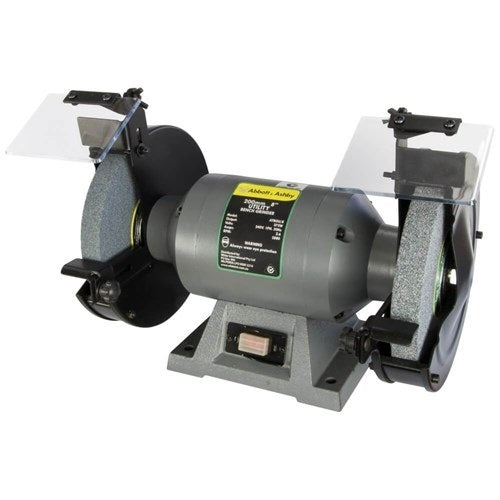

Abbott & Ashby 200mm 8" Utility Bench Grinder 375W

Abbott & Ashby ATBGU/8 is the Utility model in the bench grinder range: a 200mm (8") grinder with a 375W induction motor, a cast iron body and base, and 25mm wide grinding wheels in 36 and 60 grit. It runs on 240V, 50 Hz single phase through a 10A plug, draws 2.6A and turns at 2880 RPM. It weighs 18kg; the It weighs 18kg; the ATBG600/8 weighs 23kg with a 600W output.

Where this product is used

• Grinding on 200mm (8") wheels: removing material, shaping and descaling, then smoothing the job with the finer wheel
• Sharpening knives, axes, drills and chisels

Features

• Induction motor with capacitor start-stop
• 'Sealed for life' ball bearings
• Vibration absorption pads on the base for smoother running and a better finish
• Cast iron body and base
• Fully adjustable tool rests for use in different applications
• 25mm wide grinding wheels, 36 and 60 grit, fitted as standard

Key specifications

Choosing the right option

ATBGU/8 is the entry model for 200mm (8") wheels. Step up to ATBG600/8 industrial grinder (200mm / 8") for a 600W output, wide wheel guards and a 3/4 HP+ motor, or to ATBG1100/8 professional grinder (1100W) for 1100W and an NVR and E-stop switch. The 36 grit wheel removes material faster and the 60 grit wheel leaves a finer finish; a higher grit number means a finer abrasive. Check that your bench can carry 18kg.

See also: bench grinder eyeshield spares, heavy duty pedestal, E-stop and pedestal kit, silicon carbide grinding wheels.
