Hobson UNF Hex Bolt and Nut, Grade 5, Plain, 5/16" x 2-1/2", Box of 150
The price shown is for the box.
Available

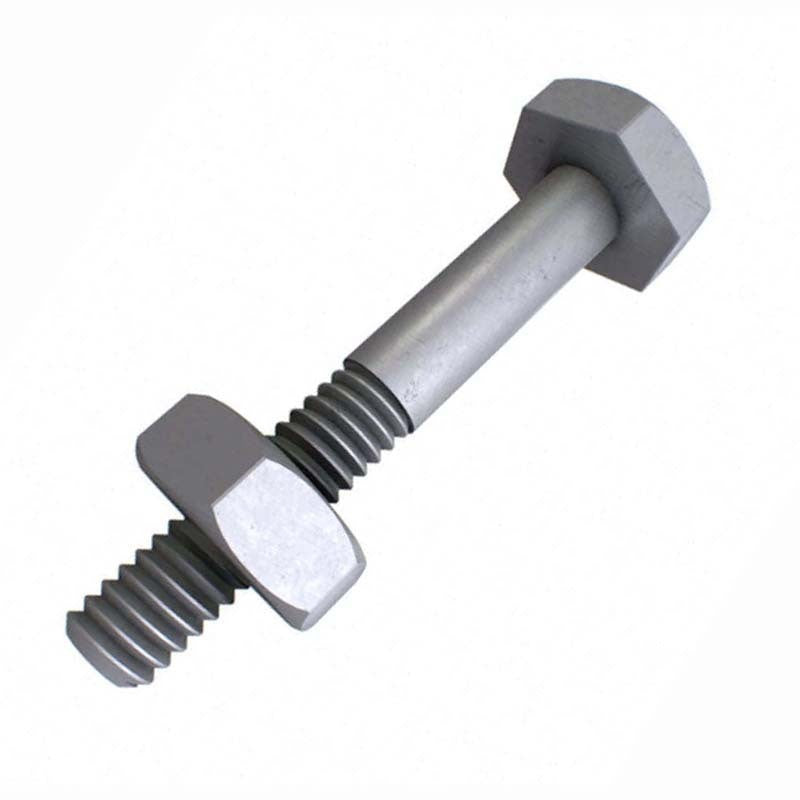

This Hobson UNF hex bolt and nut is 5/16" x 2-1/2", grade 5, with a plain finish. It is supplied as a box of 150. Grade 5 is high tensile, and corresponds to metric class 8.8.
UNF means Unified National Fine Thread and TPI means threads per inch.
Where this product is used
- Trailer, fencing and shed framework where a bolted joint may need adjusting later
- Replacing a bolt and nut pair of the same thread form and diameter
- Workshop and site kits where the nut should arrive with the bolt instead of being ordered separately
- Assemblies that will be painted, oiled or enclosed after fitting
- Medium-strength machinery and equipment work that needs more than Grade 2
Features
- 5/16" x 2-1/2" UNF hex bolt and nut
- Grade 5, Plain finish
- Supplied as a box of 150
- Proof load and minimum tensile strength
- Spanner size (A/F) by size
- Supplied as a bolt and nut
- Plain finish: suited to dry indoor, oiled, painted or enclosed use
- Grade 5 medium-carbon steel, quenched and tempered
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | 5/16" |
| Thread | UNF |
| Grade | Grade 5 |
| Finish | Plain |
| Contents | Bolt and nut |
Choosing the right option
Choose the thread form first: the nut must match the bolt in thread form, diameter and pitch. Length is measured from under the head to the end of the bolt.
These hex bolt and nut sets are plain steel, with no coating beyond a light oil film, so they rust quickly in moisture. It suits dry indoor jobs, machinery, and assemblies that will be painted, oiled or enclosed. Where the job is outside or damp, move to hot dip galvanised or 316 stainless.
Grade 5 steel is medium-carbon and quenched and tempered. The thread is UNF (Unified National Fine). A finer pitch means more threads per inch and finer adjustment, and the nut or tapped hole must also be UNF. For load-critical, structural or lifting joints, confirm the fastener against the engineer's specification. Fasteners are not lifting rated unless marked.
Related hex bolts: Hobson UNF Hex Bolt, Grade 8, Plain, 1/4" to 1-1/2" x 3/4" to 12", Hobson UNC Hex Bolt and Nut, Grade 5, Plain, 1/4" x 3", Pack of 150 and Hobson UNC Hex Bolt and Nut, Grade 5, Plain, 1/4" to 7/16" x 3/4" to 6".
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson UNF Hex Bolt and Nut, Grade 5, Plain, 5/16" x 2-1/2", Box of 150
SKU: A0084780 | Model: KBHG5PF0310250
Hobson KBHG5PF0310250: UNF Hex Bolt and Nut.
