8M HTD Taper Lock Timing Pulley - Grey Cast Iron
8M HTD Taper Lock Timing Pulley - Grey Cast Iron

Finer Power 8M HTD Taper Lock Timing Pulley, 22 / 20

$56.69
$56.69
Inc. GST

Available

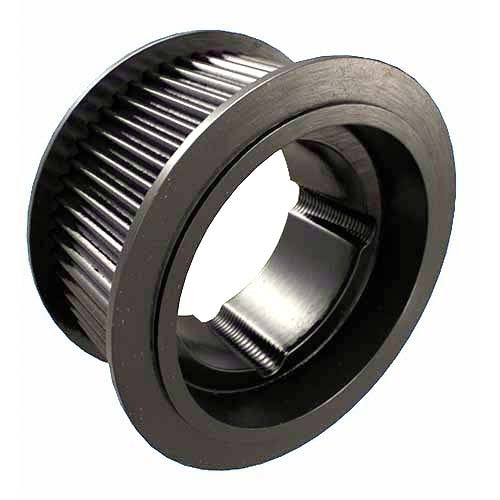

These are 8M HTD taper lock timing pulleys in grey cast iron for HTD belts with an 8mm pitch. The range covers 70 models from 22 to 192 teeth, for 20, 30, 50 and 85mm wide belts.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The last number in each model code is the belt width in millimetres.

Where this product is used

  • Synchronous drives where the driven shaft must keep in step with the driver
  • Indexing and positioning drives
  • Conveyor and material handling drives
  • Machinery drives with torque loads that would make a V-belt slip
  • Replacement pulleys on existing 8M HTD belt drives

Features

  • Taper lock hub that takes a separately sold taper lock bush
  • HTD tooth profile with an 8mm pitch for 8M HTD belts
  • Grey cast iron construction
  • 22 to 192 teeth, for 20, 30, 50 and 85mm wide belts
  • Bush series 1008, 1108, 1210, 1610, 1615, 2012, 2517, 3020 and 3525, with the maximum bore for every model
  • Pitch diameter, outside diameter and pulley width for every model

Key specifications

Specification Detail
Belt profile 8M HTD (8mm pitch)
Teeth 22 to 192
Belt widths 20, 30, 50 and 85mm
Pitch diameter 56.02 to 488.92mm
Outside diameter 54.65 to 487.55mm
Material Grey cast iron
Bore type Taper lock (bush sold separately)
Bush series 1008, 1108, 1210, 1610, 1615, 2012, 2517, 3020, 3525
Maximum bore 25 to 90mm (depends on the bush)
Pulley width 28 to 95mm

Sizes available

Model Teeth Belt (mm) Bush Max bore (mm) Pitch dia. (mm) Outside dia. (mm) Pulley width (mm)
22-8M-20TL 22 20 1008 or 1108 25 / 28 56.02 54.65 28
22-8M-30TL 22 30 1008 or 1108 25 / 28 56.02 54.65 38
24-8M-20TL 24 20 1108 28 61.12 59.75 28
24-8M-30TL 24 30 1108 28 61.12 59.75 38
26-8M-20TL 26 20 1108 28 66.21 64.84 28
26-8M-30TL 26 30 1108 28 66.21 64.84 38
28-8M-20TL 28 20 1108 28 71.3 70.08 28
28-8M-30TL 28 30 1210 32 71.3 70.08 38
28-8M-50TL 28 50 1210 32 71.3 70.08 60
30-8M-20TL 30 20 1108 28 76.39 75.13 28
30-8M-30TL 30 30 1615 42 76.39 75.13 38
30-8M-50TL 30 50 1615 42 76.39 75.13 60
32-8M-20TL 32 20 1610 42 81.49 80.16 28
32-8M-30TL 32 30 1615 42 81.49 80.16 38
32-8M-50TL 32 50 1615 42 81.49 80.16 60
34-8M-20TL 34 20 1610 42 86.58 85.22 28
34-8M-30TL 34 30 1610 42 86.58 85.22 38
34-8M-50TL 34 50 1615 42 86.58 85.22 60
34-8M-85TL 34 85 1615 42 86.58 85.22 95
36-8M-20TL 36 20 1610 42 91.67 90.3 28
36-8M-30TL 36 30 1615 42 91.67 90.3 38
36-8M-50TL 36 50 1615 42 91.67 90.3 60
36-8M-85TL 36 85 1615 42 91.67 90.3 95
38-8M-20TL 38 20 1610 42 96.77 95.39 28
38-8M-30TL 38 30 1615 42 96.77 95.39 38
38-8M-50TL 38 50 1615 42 96.77 95.39 60
38-8M-85TL 38 85 1615 42 96.77 95.39 95
40-8M-20TL 40 20 1610 42 101.86 100.49 28
40-8M-30TL 40 30 1615 42 101.86 100.49 38
40-8M-50TL 40 50 2012 50 101.86 100.49 60
40-8M-85TL 40 85 2012 50 101.86 100.49 95
44-8M-20TL 44 20 2012 50 112.05 110.67 28
44-8M-30TL 44 30 2012 50 112.05 110.67 38
44-8M-50TL 44 50 2012 50 112.05 110.67 60
44-8M-85TL 44 85 2012 50 112.05 110.67 95
48-8M-20TL 48 20 2012 50 122.23 120.86 28
48-8M-30TL 48 30 2012 50 122.23 120.86 38
48-8M-50TL 48 50 2012 50 122.23 120.86 60
48-8M-85TL 48 85 2517 60 122.23 120.86 95
56-8M-20TL 56 20 2012 50 142.6 141.23 28
56-8M-30TL 56 30 2012 50 142.6 141.23 38
56-8M-30TL 56 30 2012 50 142.6 141.23 38
56-8M-50TL 56 50 2517 60 142.6 141.23 60
56-8M-85TL 56 85 2517 60 142.6 141.23 95
64-8M-20TL 64 20 2012 50 162.97 161.6 28
64-8M-30TL 64 30 2517 60 162.97 161.6 38
64-8M-50TL 64 50 2517 60 162.97 161.6 60
64-8M-85TL 64 85 2517 60 162.97 161.6 95
72-8M-20TL 72 20 2012 50 183.35 181.97 28
72-8M-30TL 72 30 2517 60 183.35 181.97 38
72-8M-50TL 72 50 2517 60 183.35 181.97 60
72-8M-85TL 72 85 3020 75 183.35 181.97 95
80-8M-20TL 80 20 2012 50 203.72 202.35 28
80-8M-30TL 80 30 2517 60 203.72 202.35 38
80-8M-50TL 80 50 3020 75 203.72 202.35 60
80-8M-85TL 80 85 3020 75 203.72 202.35 95
90-8M-20TL 90 20 2012 50 229.18 227.81 28
90-8M-30TL 90 30 2517 60 229.18 227.81 38
90-8M-50TL 90 50 3020 75 229.18 227.81 60
90-8M-85TL 90 85 3020 75 229.18 227.81 95
112-8M-30TL 112 30 2517 60 285.21 283.83 38
112-8M-50TL 112 50 3020 75 285.21 283.83 60
112-8M-85TL 112 85 3020 75 285.21 283.83 95
144-8M-30TL 144 30 2517 60 366.69 365.32 38
144-8M-50TL 144 50 3020 75 366.69 365.32 60
144-8M-85TL 144 85 3525 90 366.69 365.32 95
168-8M-50TL 168 50 3525 90 427.81 426.44 60
168-8M-85TL 168 85 3525 90 427.81 426.44 95
192-8M-50TL 192 50 3525 90 488.92 487.55 60
192-8M-85TL 192 85 3525 90 488.92 487.55 95

Choosing the right option

Choose the pulley by belt profile (8M HTD), belt width and number of teeth. Divide the driven teeth by the driver teeth to find the speed ratio. Both pulleys on a drive must have the same tooth pitch as the belt.

Then choose the bush. Where two series are, either fits. Order a bush of that series with the bore and keyway you need: see the metric cast iron taper lock bushes or imperial cast iron taper lock bushes, or the metric steel taper lock bushes or imperial steel taper lock bushes.

Fit the bush in the pulley hub, slide the assembly onto the shaft and align the pulley with its mating pulley. Check the two pulleys are in line with a straight edge before fitting the belt.

Fit the belt by moving the shafts closer together, not by levering it over the flanges or teeth.

Option Part number SKU
22 / 20 22-8M-20TL A0059714
22 / 30 22-8M-30TL A0059715
24 / 20 24-8M-20TL A0059716
24 / 30 24-8M-30TL A0059717
26 / 20 26-8M-20TL A0059718
26 / 30 26-8M-30TL A0059719
28 / 20 28-8M-20TL A0059720
28 / 30 28-8M-30TL A0059721
28 / 50 28-8M-50TL A0059722
30 / 20 30-8M-20TL A0059723
30 / 30 30-8M-30TL A0059724
30 / 50 30-8M-50TL A0059725
32 / 20 32-8M-20TL A0059726
32 / 30 32-8M-30TL A0059727
32 / 50 32-8M-50TL A0059728
34 / 20 34-8M-20TL A0059729
34 / 30 34-8M-30TL A0059730
34 / 50 34-8M-50TL A0059731
34 / 85 34-8M-85TL A0059732
36 / 20 36-8M-20TL A0059733
36 / 30 36-8M-30TL A0059734
36 / 50 36-8M-50TL A0059735
36 / 85 36-8M-85TL A0059736
38 / 20 38-8M-20TL A0059737
38 / 30 38-8M-30TL A0059738
38 / 50 38-8M-50TL A0059739
38 / 85 38-8M-85TL A0059740
40 / 20 40-8M-20TL A0059741
40 / 30 40-8M-30TL A0059742
40 / 50 40-8M-50TL A0059743
40 / 85 40-8M-85TL A0059744
44 / 20 44-8M-20TL A0059745
44 / 30 44-8M-30TL A0059746
44 / 50 44-8M-50TL A0059747
44 / 85 44-8M-85TL A0059748
48 / 20 48-8M-20TL A0059749
48 / 30 48-8M-30TL A0059750
48 / 50 48-8M-50TL A0059751
48 / 85 48-8M-85TL A0059752
56 / 20 56-8M-20TL A0059753
56 / 30 56-8M-30TL A0059754
56-56-8M-30TL / 30 56-8M-30TL A0059755
56 / 50 56-8M-50TL A0059756
56 / 85 56-8M-85TL A0059757
64 / 20 64-8M-20TL A0059758
64 / 30 64-8M-30TL A0059759
64 / 50 64-8M-50TL A0059760
64 / 85 64-8M-85TL A0059761
72 / 20 72-8M-20TL A0059762
72 / 30 72-8M-30TL A0059763
72 / 50 72-8M-50TL A0059764
72 / 85 72-8M-85TL A0059765
80 / 20 80-8M-20TL A0059766
80 / 30 80-8M-30TL A0059767
80 / 50 80-8M-50TL A0059768
80 / 85 80-8M-85TL A0059769
90 / 20 90-8M-20TL A0059770
90 / 30 90-8M-30TL A0059771
90 / 50 90-8M-50TL A0059772
90 / 85 90-8M-85TL A0059773
112 / 30 112-8M-30TL A0059704
112 / 50 112-8M-50TL A0059705
112 / 85 112-8M-85TL A0059706
144 / 30 144-8M-30TL A0059707
144 / 50 144-8M-50TL A0059708
144 / 85 144-8M-85TL A0059709
168 / 50 168-8M-50TL A0059710
168 / 85 168-8M-85TL A0059711
192 / 50 192-8M-50TL A0059712
192 / 85 192-8M-85TL A0059713
Product Highlights −

These are 8M HTD taper lock timing pulleys in grey cast iron for HTD belts with an 8mm pitch. The range covers 70 models from 22 to 192 teeth, for 20, 30, 50 and 85mm wide belts.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The last number in each model code is the belt width in millimetres.
