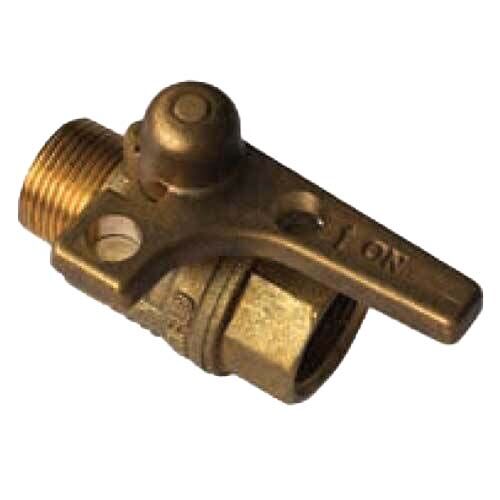

AAP Ball Valve

Material Lists

• Body - Brass (Nickel Plated)
• Seat Retainer - Brass (Nickel Plated)
• Seat - P.T.F.E.
• Ball - Brass (Chromium-plated)
• Stem - Brass
• Gland - Brass
• Packing - Viton (Double O-Ring)
• Lever - Stainless Steel (Plastic Coated)
• Lever Retaining Nut - Brass (Nickel Plated)
• T-Handle (Optifinal) - DR Brass

About Ball Valves

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between Teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve flow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

• Thread - AS1722.1
• Max Working Temperature - 60°C
• Cold Working Pressure - 2500kPa

Applications

• For flow to medium gas applications
• Can also be used for certain chemicals and oils
