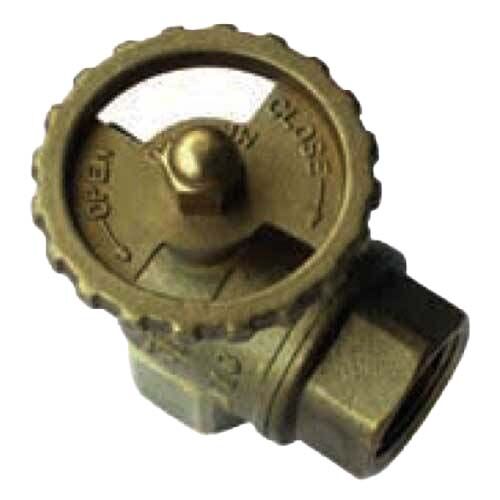

AAP 3/4" DR Brass Right Angle Ball Valve Round Handle, SS VBBDA201

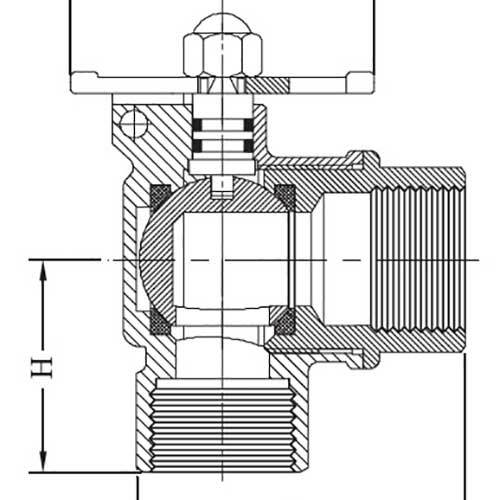

AAP 3/4" DR Brass Right Angle Ball Valve Round Handle, SS VBBDA202

Description +

AAP Right Angle Ball Valve

Material Lists

Body - Brass (Nickel Plated)
Seat Retainer - Brass (Nickel Plated)
Seat - P.T.F.E.
Ball - Brass (Chromium plated)
Stem - Brass
Gland - Brass
Packing - Viton (Double O-Ring)
Lever - Stainless Steel (Plastic Coated)
Lever Retaining Nut - Brass (Nickel Plated)

About Ball Valves

A ball valve is a valve with a spherical ball with an orifice straight through mounted between Teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.

Specifications +

Specifications

Thread - AS1722.1
Max Working Temperature - 60°C
Cold Working Pressure - 2500kPa

Application +

Applications

For flow to medium gas applications
Can also be used for certain chemicals and oils

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP 3/4" DR Brass Right Angle Ball Valve Round Handle, SS VBBDA20

SKU: A0080414

Type: Ball Valve

$56.61

Inc. GST

Buy It Now

Available

The AAP 3/4" DR Brass Right Angle Ball Valve Round Handle, SS VBBDA20 by AAP is a Ball Valve with a nickel plated brass body. It offers a maximum working temperature of 60°C and is suitable for flow to medium gas applications.
