AAP 316/316L SS Buttweld 45 Degree Elbow, 1"
Available

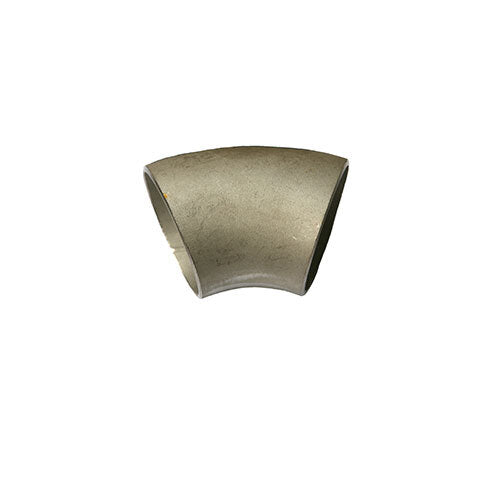

This AAP stainless steel buttweld 45° elbow is grade 316/316L stainless steel, Schedule 10S. It is supplied in 8 sizes, 1" (25mm) to 6" (150mm). A 45° elbow changes the direction of a pipe run by 45°. It is welded end to end with the pipe. This one is an L/R (long radius) elbow.
The stainless steel butt weld fittings are made from welded stainless steel pipe, which is made from 2B or HRAP stainless steel strip formed to shape and longitudinally welded.
Where this product is used
- Refinery, chemical production and petrochemical pipework in stainless steel
- Changing the direction of a welded stainless steel pipe run
- Process pipework that needs a welded, rust free joint
Features
- 8 sizes, 1" (25mm) to 6" (150mm)
- Grade 316/316L stainless steel, Sch 10S
- Wall thickness given for every size
- Made from welded stainless steel pipe
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld 45° elbow, grade 316/316L stainless steel |
| Schedule | Sch 10S (wall thickness to ASTM A312M) |
| Tolerances | ANSI B16.9 |
| Material | Grade 316/316L stainless steel |
| Construction | Made from welded stainless steel pipe (2B or HRAP strip, formed and longitudinally welded) |
| Ends | Butt weld ends |
| Material specification | ASTM A182 F316L, ASTM A182 F316 |
| Mechanical properties, F316L | Tensile strength min 485 N/mm2, yield point (Rp0.2) min 170 N/mm2, elongation (A5) min 30 per cent |
| Chemical composition, F316L | C max 0.03%, Si max 1%, Mn max 2.00%, P max 0.05%, S max 0.03%, Cr 16.00 to 18.00%, Mo 2.00 to 3.00%, Ni 10.00 to 15.00%, N max 0.1% |
| Sizes | 1" (25mm) to 6" (150mm) (8 sizes) |
Choosing the right option
Match the schedule and wall thickness to the pipe you are welding to.
Related AAP products: AAP 316/316L SS Buttweld 90 Degree Elbow, Sch 10S, AAP 316/316L SS Buttweld Equal Tee, Sch 10S, AAP 316/316L SS Buttweld Concentric Reducer, Sch 10S, AAP 316/316L SS Buttweld Cap, Sch 10S.
| Option | Part number | SKU |
|---|---|---|
| 1" | SWEF1031625 | A0080728 |
| 1-1/4" | SWEF1031632 | A0080729 |
| 1-1/2" | SWEF1031640 | A0080730 |
| 2" | SWEF1031650 | A0080731 |
| 2-1/2" | SWEF1031665 | A0080732 |
| 3" | SWEF1031680 | A0080733 |
| 4" | SWEF1031694 | A0080734 |
| 6" | SWEF1031696 | A0080735 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316/316L SS Buttweld 45 Degree Elbow, Sch 10S: 1"
SKU: A0080728 | Model: SWEF1031625

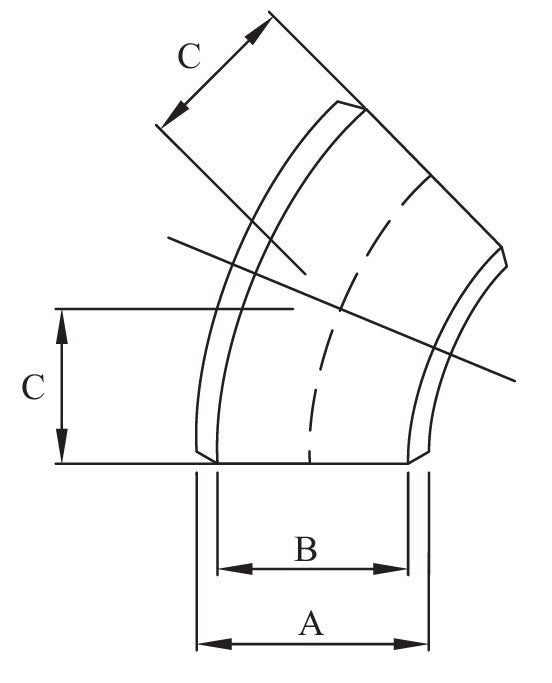

AAP SWEF1031625: AAP 316/316L SS Buttweld 45 Degree Elbow, 1". Pipe Size (inch): 1. Pipe Size (mm): 25. Center To End ( C ): 22.
