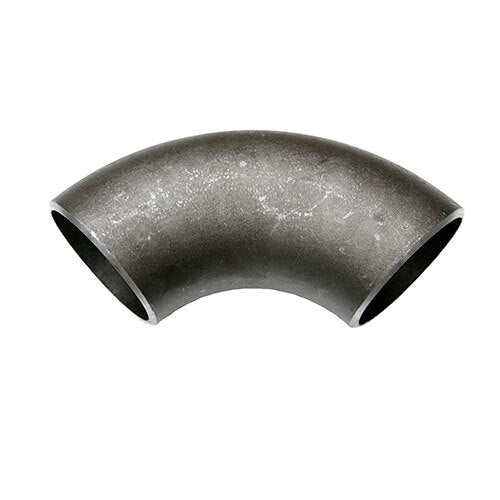

1/2 in (15 mm) Buttweld 90 Degree LR Elbow, X-Stg | WE15X
Available
This AAP buttweld 90 degree long radius elbow is made from carbon steel to ASTM A234 WPB, ANSI B16.9 (manufacturer-stated). It is supplied in 10 sizes, 1/2 in (15 mm) to 6 in (150 mm).
A long radius elbow turns the pipe run through 90 degrees with a gradual bend. This is the X-Stg (extra strong) weight, which has a thicker wall than the Std weight of the same size. It is welded end to end with the pipe.
AAP describes its buttweld range as carbon alloy steel to ASTM A234 for use in various piping systems. AAP lists these advantages of buttweld (manufacturer-stated): a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.
Where this product is used
- Pipework where a welded, permanently leak proof joint is wanted, as AAP describes for buttweld
- Changing the direction of a welded pipe run through 90 degrees
- Heavier wall pipework that needs X-Stg fittings
Features
- 10 sizes, 1/2 in (15 mm) to 6 in (150 mm)
- Butt weld ends, ASTM A234 WPB, ANSI B16.9 (manufacturer-stated)
- Wall thickness listed for every size
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld 90 degree long radius elbow |
| Weight class (manufacturer-stated) | Extra strong (X-Stg) |
| Standards (manufacturer-stated) | ASTM A234 WPB, ANSI B16.9 |
| Material | Carbon steel (AAP: carbon alloy steel to ASTM A234) |
| Ends | Butt weld ends |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (10 sizes) |
Options and part numbers
| Size | Part number | Outside dia. A (mm) | Inside dia. B (mm) | Centre to end C (mm) | Wall (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | WE15X | 21.3 | 13.84 | 38.1 | 3.7 | 0.1 |
| 3/4 in (20 mm) | WE20X | 26.7 | 18.88 | 38.1 | 3.9 | 0.1 |
| 1 in (25 mm) | WE25X | 33.4 | 24.3 | 38.1 | 4.6 | 0.2 |
| 1-1/4 in (32 mm) | WE32X | 42.2 | 32.5 | 47.8 | 4.9 | 0.4 |
| 1-1/2 in (40 mm) | WE40X | 48.3 | 38.14 | 57.2 | 5.1 | 0.5 |
| 2 in (50 mm) | WE50X | 60.3 | 49.22 | 76.2 | 5.5 | 1 |
| 2-1/2 in (65 mm) | WE65X | 73 | 58.98 | 95.2 | 7 | 1.8 |
| 3 in (80 mm) | WE80X | 88.9 | 73.66 | 114.3 | 7.6 | 2.9 |
| 4 in (100 mm) | WE94X | 114.3 | 97.18 | 152.4 | 8.6 | 5.7 |
| 6 in (150 mm) | WE96X | 168.3 | 146.36 | 228.6 | 11 | 16.3 |

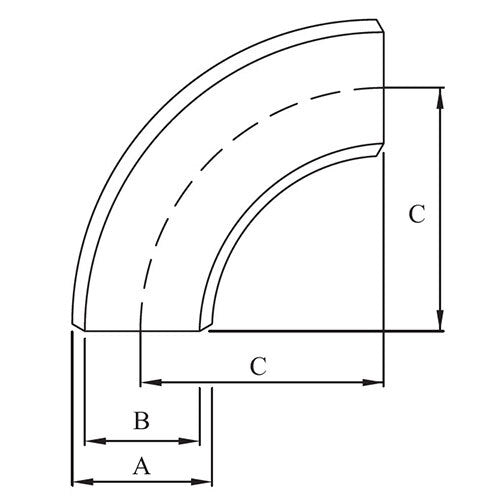

A, B and C are the dimensions lettered on the AAP drawing, in millimetres. A is the outside diameter and B the inside diameter at the weld end.
Selecting the right option
Match the wall thickness to the pipe you are welding to. AAP does not publish a pressure rating for the fittings themselves.
Related products
See also AAP Buttweld 90 Degree Short Radius Elbow, X-Stg, AAP Buttweld 45 Degree Long Radius Elbow, X-Stg, AAP Buttweld Equal Tee, X-Stg and AAP Buttweld Concentric Reducer, X-Stg.
