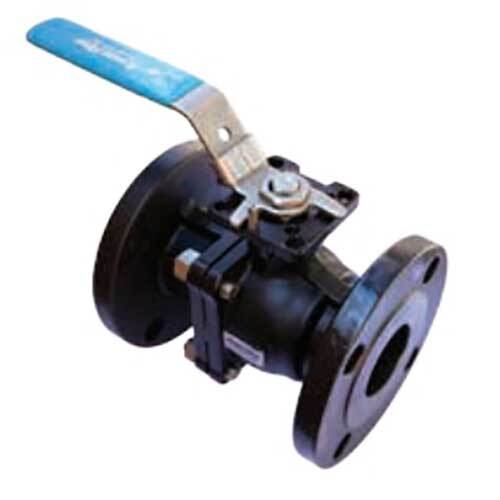

AAP Flanged Ball Valve

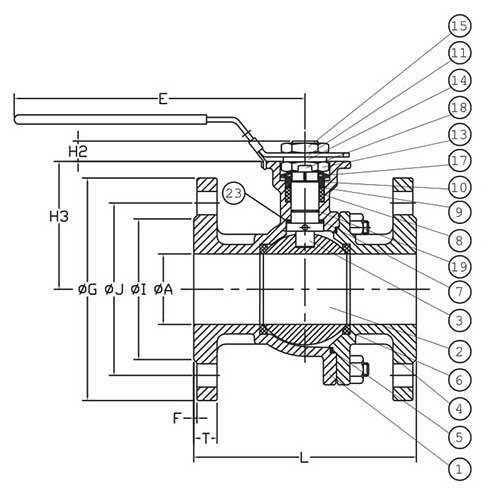

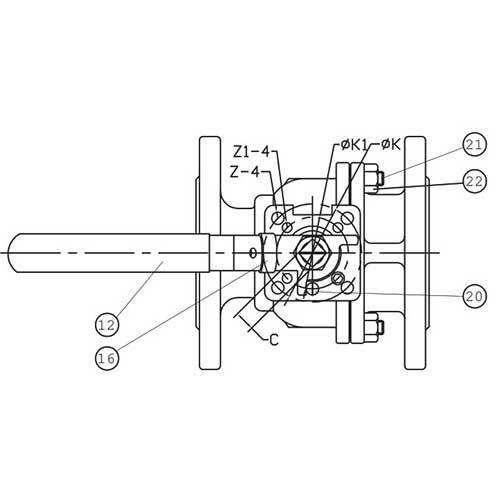

Material List

NO.
PART
MATERIAL
1
Body
ASTM A216 WCB
2
Ball
ASTM A351 CF8M(316)
3
Stem
SS316
4
End Cap
ASTM A216 WCB
5
Body Seal
Graphite
6
Seat
RTFE
7
Thrust Washer
PTFE
8
Stem Packing
Graphite
9
Thrust Washer
RTFE
10
Gland
SS304
11
Handle
SS304
12
Handle Cover
Plastic
13
Stem Nut
SS304
14
Handle Washer
SS304
15*
Handle Nut
SS304
16*
Locking Pad
SS304
17
Belleville Washer
SS304
18
Stop Washer
SS304
19
Stem O-Ring
VITON
20
Stop
SS304
21
Stud
ASTM A193 Gr. B8
22
Nut
ASTM A194 Gr. 8
23
Thrust Washer
Graphite
24**
Triangle Stopper
SS304
25**
Bolt
SS304
26**
Handle Adapter
SS304

*Up to 65mm valves **From 80mm valves

About Ball Valves:

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve flow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

Flange Dimensions
ASME B16.5
Face to Face Dimensions
ASME B16.10
Max Working Temperature
200°C
Cold Working Pressure
1960KPa

Applications: - Refinery, Chemical, Petrochemical, Pharmaceutical Power

NO. | PART | MATERIAL
1 | Body | ASTM A216 WCB
2 Ball ASTM A351 CF8M(316)
3 Stem SS316
4 End Cap ASTM A216 WCB
5 Body Seal Graphite
6 Seat RTFE
7 Thrust Washer PTFE
8 Stem Packing Graphite
9 Thrust Washer RTFE
10 Gland SS304
11 Handle SS304
12 Handle Cover Plastic
13 Stem Nut SS304
14 Handle Washer SS304
15* Handle Nut SS304
16* Locking Pad SS304
17 Belleville Washer SS304
18 Stop Washer SS304
19 Stem O-Ring VITON
20 Stop SS304
21 Stud ASTM A193 Gr. B8
22 Nut ASTM A194 Gr. 8
23 Thrust Washer Graphite
24** Triangle Stopper SS304
25** Bolt SS304
26** Handle Adapter SS304
