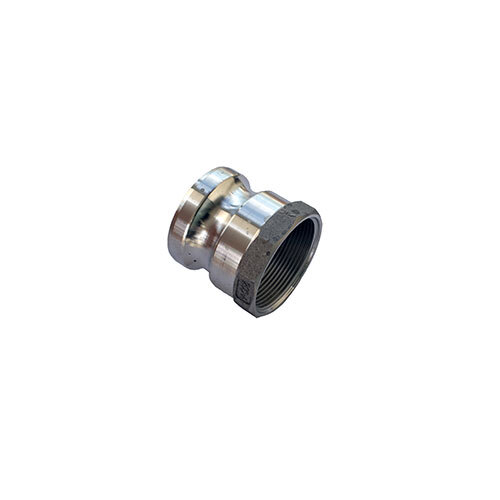

AAP Aluminium Camlock Adaptor Type-A x BSP Female

About Camlock

• Camlocks are also known as Cam and Groove Fittings.
• The AAP Industries flange of Camlock is manufactured to interchange with all products produced to Mil-Spec A-A 59326.
• Size 1/2" (15mm) and 8" (200mm) fittings are not covered by Mil-Spec A-A 59326, these sizes are to manufactures specification only.
• Used were quick, convenient connection and disconnection of piping and hose are required.
• Industries - irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry.
• Medium - Water, Oil, powders, some Hydrocarbons, and Chemicals (check compatibility charts).
• Threads - The threads are cut according to ISO 228.
• Maximum Temperature - NBR (Buna) Gasket 100 degrees Celcius.
• Spare Parts - AAP has available a flange of spare parts to suit the camlocks, such as Brass Handles (code CBH...), Handle Pins (code CP...), and NBR Gaskets (code CGN...).

Specifications and Typical of Applications in Aluminium Diecast

• Conforming to ASTM B 26B 26M.
• General Use / AG / Industrial.
• Manufactured using the die-casting method.
• Most common/economical of the aluminum flange.
