1/2 in (15 mm) Aluminium Camlock Dust Plug | CAL15DP
Available

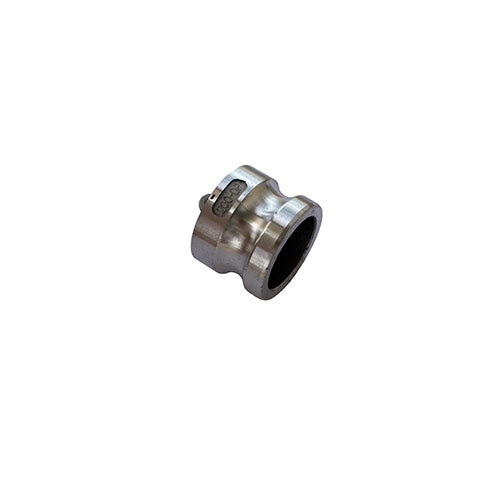

This AAP aluminium camlock dust plug is a Type DP: a dust plug that plugs a female camlock end. It is supplied in 10 sizes from 1/2 in (15 mm) to 6 in (150 mm).
This is the dust plug: it is a male end that plugs into a female camlock coupler (Types B, C and D) to close it off when the line is not in use.
It is die-cast aluminium, which AAP describes as the most common and economical of its aluminium range, and it suits general air and water use, agricultural and industrial work (manufacturer-stated, conforming to ASTM B26/B26M).
AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). The 1/2 in (15 mm) size is outside that specification and is made to AAP's own specification only. Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Plugging the female camlock end of a coupler when it is not connected
- Closing off unused tanker, pump and hose outlets
- Irrigation and agricultural hose connections
- Pumping and water carrier hose lines
Features
- 10 sizes from 1/2 in (15 mm) to 6 in (150 mm)
- Type DP: plugs a female camlock end
- Die-cast aluminium
- Male end locks into the cam arms of the coupler
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Spare handles, handle pins and NBR gaskets available for AAP camlocks
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock dust plug, Type DP |
| Material | Die-cast aluminium |
| Connection | Plugs a female camlock coupler (Types B, C and D) |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (10 sizes) |
Options and part numbers

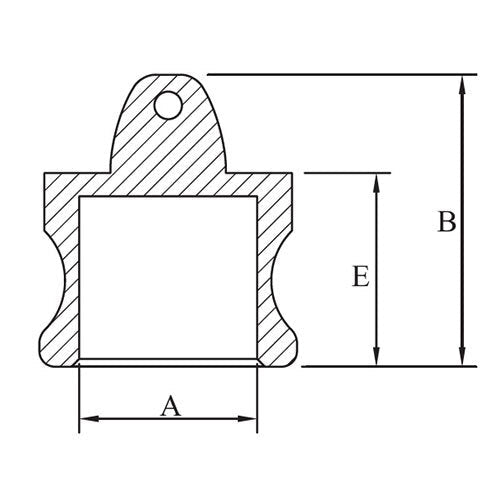

| Size | Part number | A (mm) | B (mm) | E (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1/2 in (15 mm) | CAL15DP | 21 | 36 | 24 | 0.02 |
| 3/4 in (20 mm) | CAL20DP | 21 | 38 | 24 | 0.03 |
| 1 in (25 mm) | CAL25DP | 24 | 50 | 30 | 0.05 |
| 1-1/4 in (32 mm) | CAL32DP | 29 | 55 | 38 | 0.09 |
| 1-1/2 in (40 mm) | CAL40DP | 36 | 59 | 41 | 0.11 |
| 2 in (50 mm) | CAL50DP | 45 | 64 | 43 | 0.17 |
| 2-1/2 in (65 mm) | CAL65DP | 57 | 68 | 45 | 0.23 |
| 3 in (80 mm) | CAL80DP | 73 | 70 | 52 | 0.26 |
| 4 in (100 mm) | CAL100DP | 98 | 76 | 48 | 0.58 |
| 6 in (150 mm) | CAL150DP | 155 | 85 | 62 | 1.29 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a female camlock coupler of the same size (Types B, C or D). AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
Related products
See also AAP Aluminium Camlock Coupler, Type B, Female Camlock x Male BSP, AAP Aluminium Camlock Coupler, Type C, Female Camlock x Male Hosebarb, AAP Aluminium Camlock Coupler, Type D, Female Camlock x Female BSP and AAP Stainless Steel Camlock Dust Plug, Type DP.
