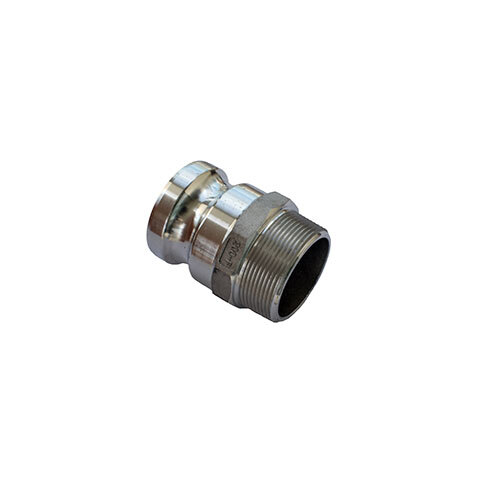

1/2 in (15 mm) Aluminium Camlock Adaptor Type F | CAL15F
Available
This AAP aluminium camlock adaptor is a Type F: a male camlock end and a male BSP thread. It is supplied in 10 sizes from 1/2 in (15 mm) to 6 in (150 mm).
Camlocks, also known as cam and groove fittings, give a quick connection and disconnection of hose and piping. The male camlock end locks onto a female camlock end of the same size, and the male BSP thread screws into a female threaded port.
It is die-cast aluminium, which AAP describes as the most common and economical of its aluminium range, and it suits general air and water use, agricultural and industrial work (manufacturer-stated, conforming to ASTM B26/B26M).

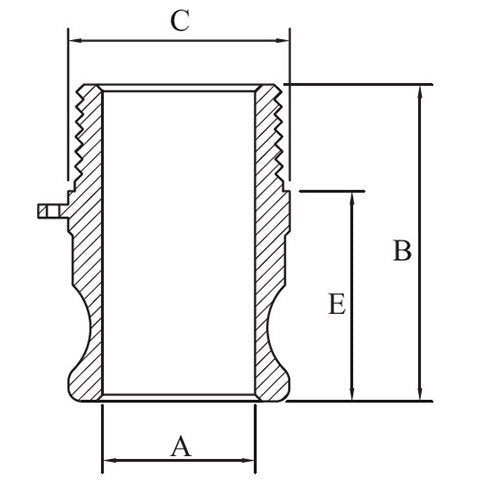

AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). The 1/2 in (15 mm) size is outside that specification and is made to AAP's own specification only. AAP states that the threads are cut to ISO 228. Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Irrigation and agricultural hose connections
- Pumping and water carrier hose lines
- Bulk tanker and hose distributor connections
- General industrial water, air and oil transfer
Features
- 10 sizes from 1/2 in (15 mm) to 6 in (150 mm)
- Type F: Male Camlock x Male BSP
- Die-cast aluminium
- Working pressure 517 kPa (5.17 bar) to 1,724 kPa (17.24 bar) by size (manufacturer-stated)
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Maximum temperature 100 degrees C with an NBR (Buna) gasket (manufacturer-stated)
Working pressure by size
| Nominal size | Working pressure (kPa) | Working pressure (bar) |
|---|---|---|
| 1/2 in (15 mm) | 1,034 | 10.34 |
| 3/4 in (20 mm) | 1,724 | 17.24 |
| 1 in (25 mm) | 1,724 | 17.24 |
| 1-1/4 in (32 mm) | 1,724 | 17.24 |
| 1-1/2 in (40 mm) | 1,724 | 17.24 |
| 2 in (50 mm) | 1,724 | 17.24 |
| 2-1/2 in (65 mm) | 1,034 | 10.34 |
| 3 in (80 mm) | 862 | 8.62 |
| 4 in (100 mm) | 690 | 6.9 |
| 6 in (150 mm) | 517 | 5.17 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock adaptor, Type F |
| Material | Die-cast aluminium |
| Connection | Male Camlock x Male BSP |
| Thread (manufacturer-stated) | BSP, cut to ISO 228 |
| Working pressure (manufacturer-stated) | 517 kPa (5.17 bar) to 1,724 kPa (17.24 bar) |
| Maximum temperature (manufacturer-stated) | 100 degrees C with NBR (Buna) gasket |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (10 sizes) |
Options and part numbers
| Size | Part number | A (mm) | B (mm) | C (mm) | E (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | CAL15F | 21 | 60 | 32 | 39 | 0.03 |
| 3/4 in (20 mm) | CAL20F | 21 | 61 | 32 | 39 | 0.06 |
| 1 in (25 mm) | CAL25F | 24 | 71 | 40 | 48 | 0.09 |
| 1-1/4 in (32 mm) | CAL32F | 28.5 | 81 | 48 | 56 | 0.16 |
| 1-1/2 in (40 mm) | CAL40F | 36 | 79 | 56 | 61 | 0.19 |
| 2 in (50 mm) | CAL50F | 45 | 87 | 67 | 62 | 0.26 |
| 2-1/2 in (65 mm) | CAL65F | 56.5 | 97 | 83 | 69 | 0.44 |
| 3 in (80 mm) | CAL80F | 73 | 100 | 96 | 74 | 0.48 |
| 4 in (100 mm) | CAL100F | 98 | 114 | 127 | 79 | 0.96 |
| 6 in (150 mm) | CAL150F | 150 | 118 | 175 | 77 | 1.52 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a female camlock of the same size (Types B, C or D). Check the mating thread is BSP, because AAP cuts these threads to ISO 228. AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
Related products
See also AAP Aluminium Camlock Coupler, Type B, Female Camlock x Male BSP, AAP Aluminium Camlock Coupler, Type D, Female Camlock x Female BSP, AAP Aluminium Camlock Coupler, Type C, Female Camlock x Male Hosebarb, AAP Aluminium Camlock Dust Cap, Type DC and AAP Stainless Steel Camlock Adaptor, Type F, Male Camlock x Male BSP.
