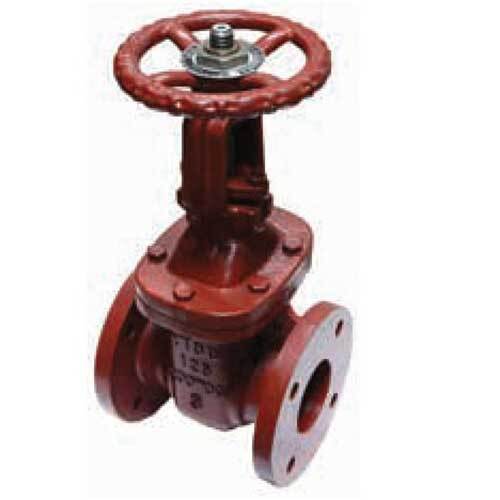

AAP Cast Iron Wedge Gate Valve-Rising Stem Table-E1

AAP Cast Iron Wedge Gate Valve-Rising Stem Table-E2

AAP 2" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS50E

AAP 2-1/2" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS65E

AAP 3" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS80E

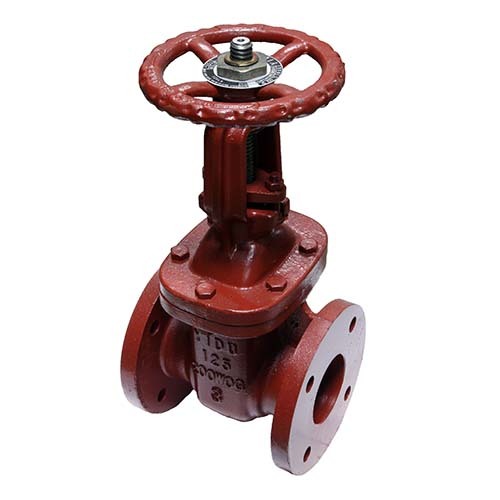

AAP 4" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS94E

AAP 5" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS95E

AAP 6" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS96E

AAP 8" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS98E

AAP 10" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRSX25E

AAP 12" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRSX30E

Description +

***Size 2" has a lead time of 20 weeks from receipt of the order. Contact AIMS for further assistance.***

Cast Iron Flanged Solid Wedge Disc Gate Valve Rising Stem

Flange
AS2129
Max Temperature
200¬∞C
Cold Working Pressure
1379kPa

Materials

PART
MATERIAL
Body
Cast Iron
Seat Ring
Cast Bronze
Wedge Face Ring
Cast Bronze
Wedge
Cast Iron
Wedge Nut
Cast Bronze
Stem
Brass
Body Gasket
Graphite/Steel
Bonnet
Cast Iron
Stuffing Box Gasket
Teflon
Stuffing Box
Cast Iron
Packing
Teflon
Gland Follower
Ductile Iron
Yoke bushing
Cast Brass
Hand wheel
Cast Iron

Specifications +

Specifications

Application +

Applications

Water, Sewage, and neutral liquid applications

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Cast Iron Wedge Gate Valve-Rising Stem Table-E

SKU: A0081070

Type: Cast Iron Gate Valve

$357.67

Inc. GST

Buy It Now

Available

The AAP Cast Iron Wedge Gate Valve-Rising Stem Table-E by AAP is a Cast Iron Gate Valve constructed from cast iron components. It provides a Cold Working Pressure rating of 1379kPa and is suitable for sewage applications.
