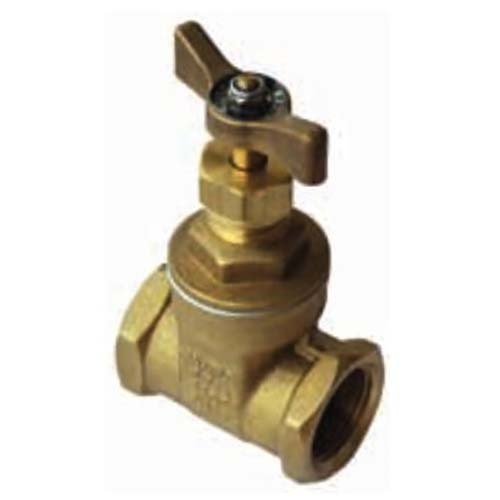

AAP Dr Brass Gate Valve T-Lever

• The wedge gate valve provides an uninterrupted passage for the fflow of fluid. Body ends are inline and the gate is moved between body seats by a spindle, whose axis is at right angles to that of the body ends.
• It may be either inside screw, in which the actuating thread of the spindle is contained inside the valve and thus in contact with the line fluid, or outside screw, in which the actuating thread of the spindle is exterior to the bonnet.
• The valve is used extensively where a straight fflow is required with minimum pressure drop.
• It is not recommended for fflow regulation and should only be used fully opened or closed.

DR Brass Approved Gate Valve - A59M (T-Lever)

Materials
PART
MATERIAL
Body
DR Brass
Bonnet
DR Brass
Wedge
DR Brass
Stem
DR Brass
Hand Wheel
Ductile Iron
Packing
P.T.F.E.
Tee Handle
DR Brass

Specifications
Thread
AS1722.1
MAX Working Temperature
180°C
Cold Working Pressure
2500kPa

Applications - Potable Water, fflow-Pressure Heating, Waterworks, Irrigation, Air Systems and fflow-Pressure Steam
