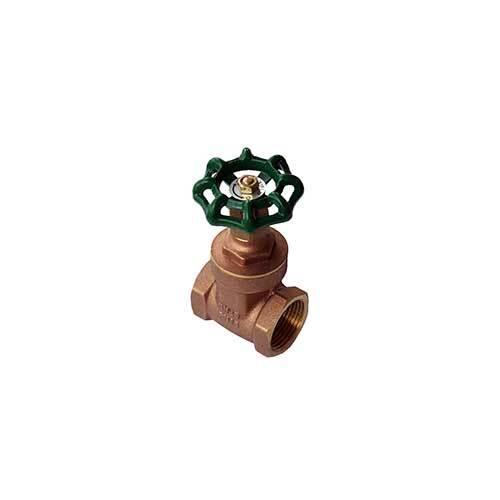

AAP Dr Brass Gate Valve
- The wedge gate valve provides an uninterrupted passage for the flow of fluid. Body ends are inline and the gate is moved between body seats by a spindle, whose axis is at right angles to that of the body ends.
- It may be either inside screw, in which the actuating thread of the spindle is contained inside the valve and thus in contact with the line fluid, or outside screw, in which the actuating thread of the spindle is exterior to the bonnet.
- The valve is used extensively where a straight flow is required with minimum pressure drop.
- It is not recommended for flow regulation and should only be used fully opened or closed.
DR Brass Approved Gate Valve - A59M
Materials
PART
MATERIAL
Body
DR Brass
Bonnet
DR Brass
Wedge
DR Brass
Stem
DR Brass
Hand Wheel
Ductile Iron
Packing
P.T.F.E.
Specifications
Specifications
Specifications
Thread
AS1722.1
MAX Working Temperature
180°C
Cold Working Pressure
2500kPa
Applications
Applications
Applications - Potable Water, flow-Pressure Heating, Waterworks, Irrigation, Air Systems and flow-Pressure Steam
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP DR Brass Gate Valve Watermark Approved
AAP DR Brass Gate Valve Watermark Approved
SKU: A0080415
Type: Dr Brass Gate Valve
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP DR Brass Gate Valve Watermark Approved by AAP is a Dr Brass Gate Valve made of DR Brass. It provides 2500kPa cold working pressure and is suitable for Potable Water.
