AAP 3000lb Threaded Equal Tee, 1/4"
Available

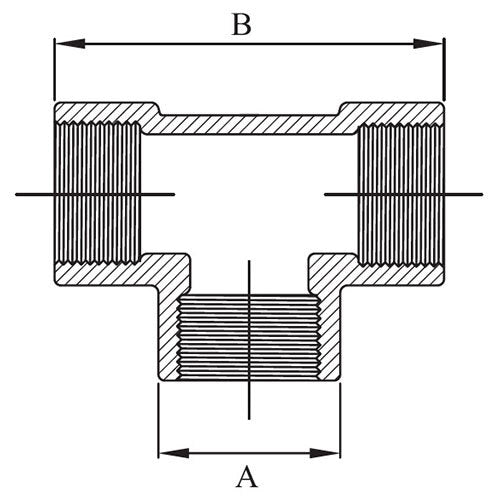

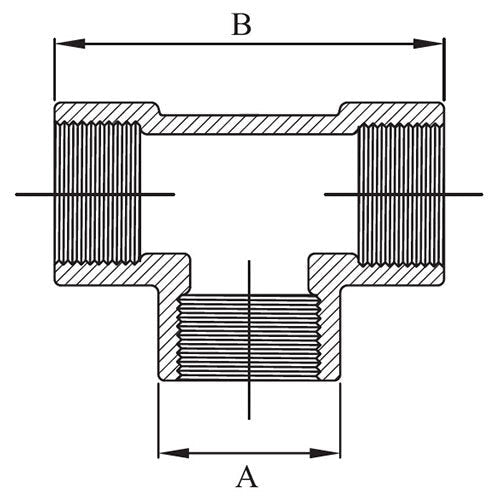

This AAP threaded equal tee is a forged carbon steel fitting with BSPT thread and a black finish. It is supplied in 9 sizes, 1/4" (8mm) to 4" (100mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside at all three ports. A is the outside diameter and B is the overall length of the run.
The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.
Where this product is used
- High pressure threaded pipework in carbon steel
- Branching a threaded pipe run
- Taking an equal size branch off a main
Features
- 9 sizes, 1/4" (8mm) to 4" (100mm)
- 3000 lb forged carbon steel, ASME B16.11-2009
- BSPT, black
- Thread: BSPT taper threads to AS 1722.1 / ISO 7
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Threaded equal tee, forged carbon steel |
| Thread | BSPT taper threads to AS 1722.1 / ISO 7 |
| Finish | Black |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | Carbon steel forging (ASTM A105) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/4" (8mm) to 4" (100mm) (9 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb 90 Degree Threaded Elbow, BSPT, Black, AAP 3000lb Threaded Coupling, BSPT, Black, AAP 3000lb Threaded Union, BSPT, Black, AAP 3000lb Threaded Cap, BSPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | PT08B | A0079694 |
| 1/2" | PT15B | A0079696 |
| 1" | PT25B | A0079698 |
| 1-1/4" | PT32B | A0079699 |
| 1-1/2" | PT40B | A0079700 |
| 2" | PT50B | A0079701 |
| 3/8" | PT10B | A0079695 |
| 3/4" | PT20B | A0079697 |
| 4" | PT94B | A0079703 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb Threaded Equal Tee, BSPT, Black: 1/4"
SKU: A0079694 | Model: PT08B
AAP PT08B: AAP 3000lb Threaded Equal Tee, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Outside Diameter (A): 25.
