AAP Galvanised Steel Cap, 1/4"
Available

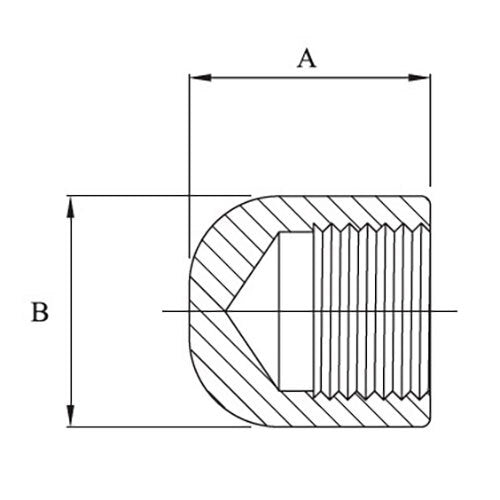

This AAP galvanised cap is a mild steel fitting with BSP threads. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A cap closes the end of a male threaded pipe. It is threaded inside (female) and has a closed, domed end. A is the length and B the outside diameter.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It is galvanised. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Closing the end of a threaded steel pipe
- Sealing off a pipe run for testing or future extension
- General threaded steel pipework
Features
- 11 sizes, 1/4" (8mm) to 4" (100mm)
- Mild steel, galvanised, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised cap, mild steel |
| Finish | Galvanised |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread, closed end |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/4" (8mm) to 4" (100mm) (11 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Galvanised Steel Hexagon Plug, AAP Galvanised Steel Square Head Plug, AAP Galvanised Steel Socket, Heavy Type, AAP Galvanised Steel Barrel Nipple.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SC08G | A0076053 |
| 3/8" | SC10G | A0076054 |
| 1/2" | SC15G | A0076055 |
| 3/4" | SC20G | A0076056 |
| 1" | SC25G | A0076057 |
| 1-1/4" | SC32G | A0076058 |
| 1-1/2" | SC40G | A0076059 |
| 2" | SC50G | A0076060 |
| 2-1/2" | SC65G | A0076061 |
| 3" | SC80G | A0076062 |
| 4" | SC94G | A0076063 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

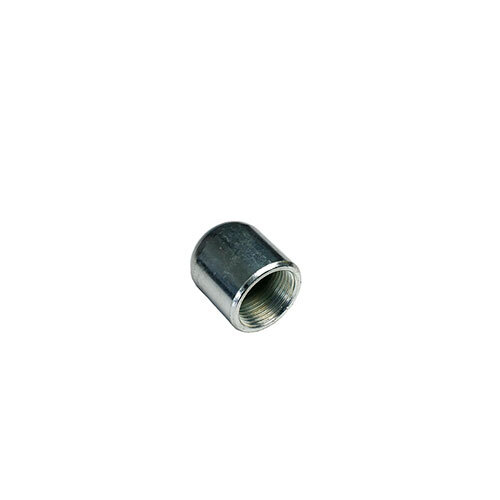

AAP Galvanised Steel Cap: 1/4"
SKU: A0076053 | Model: SC08G
AAP SC08G: AAP Galvanised Steel Cap, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 23.8.
