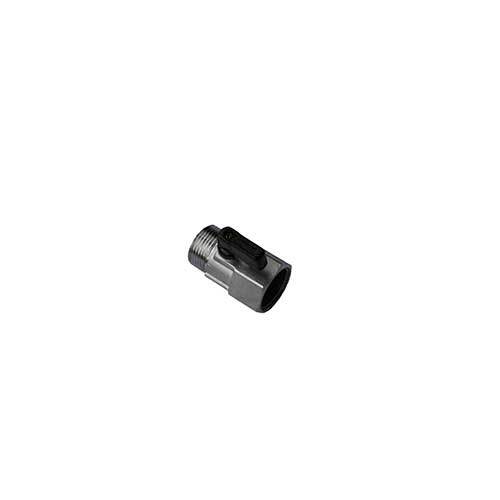

AAP Mini Brass Ball Valve, 1/8"

This AAP mini male x female brass ball valve has a stainless steel lever, a male thread on one end and a female thread on the other. It is supplied in 5 sizes from 1/8" (6mm) to 3/4" (20mm). A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. The handle sits in line with the port, so it shows the valve position.

The mini valves are small, from 1/8" (6mm), with a handle length of 20 to 26mm.

Where this product is used

• Small instrument, gauge and sampling lines
• Compact air and water shut-off
• Machine and equipment auxiliary lines

Features

• 5 sizes from 1/8" (6mm) to 3/4" (20mm)
• Compact mini body from 1/8" (6mm)
• Male x female threaded ends
• Stainless steel lever
• Brass construction

Key specifications

Choosing the right option

Choose the size to match your pipe thread, and fit the male end into the female port.
