AAP 15mm, 1/2" Muti-Purpose Full Flow | AIMS Industrial

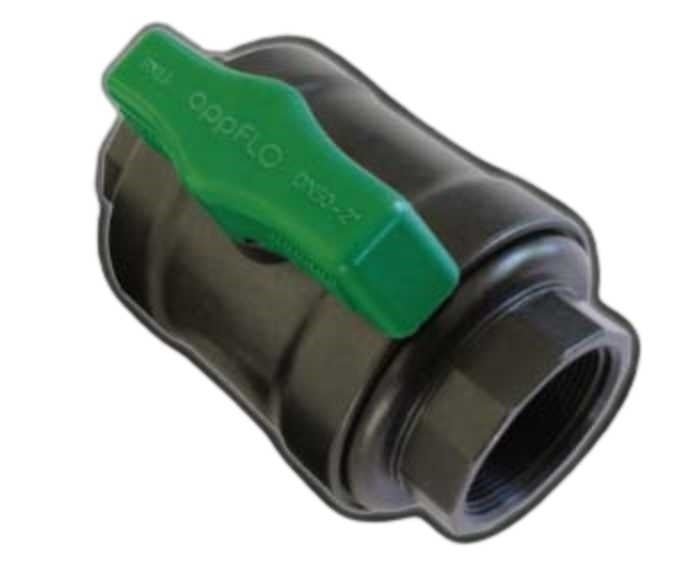

AAP Multi-Purpose Full Flow Ball Valve

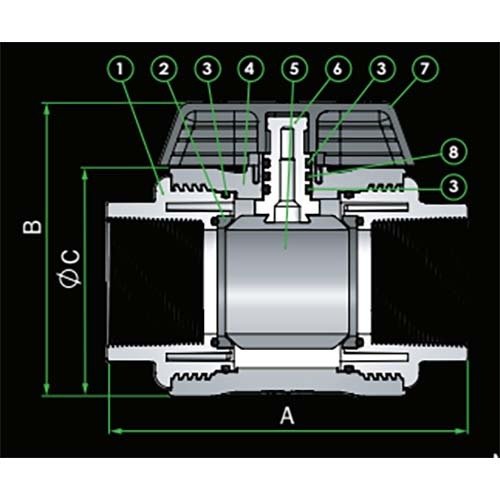

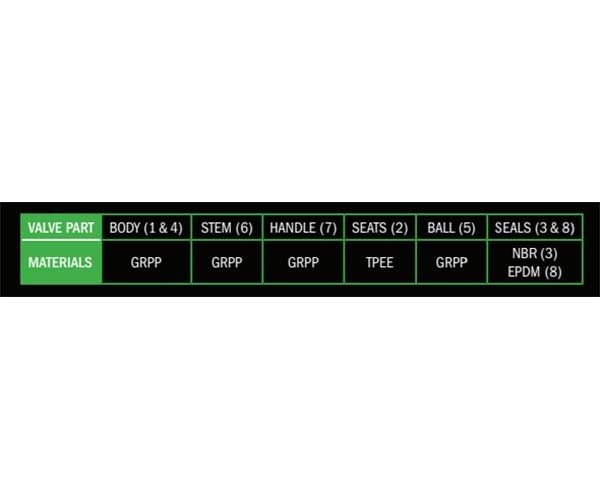

Valve Part
Material
Body
Glass Reinforced Polypropylene (GRPP)
Stem
Glass Reinforced Polypropylene (GRPP)
Handle
Glass Reinforced Polypropylene (GRPP)
Seats
Thermoplastic Polyester Elastomer (TPEE)
Ball
Glass Reinforced Polypropylene (GRPP)
Seals
NBR Rubber (Nitrile Butadiene Rubber (Nitrile) also known as Buna-N), EPDM Rubber (Ethylene Propylene Diene Monomer)

Note

• 15 and 20mm valves have two seals on the shaft. The remaining sizes have three seals.
• Apply sufficient PTFE tape or approved sealant to all thread joints to ensure a watertight seal.

About appFLO Multi-Purpose Full Flow Ball Valves

• Suitable for a broad spectrum of applications including potable water, non potable water and a range of chemical applications.
• Chemical resistance varies depending on the type of chemical.
• Incorporating a special feature unmatched by its competitors, the shaft is fitted with 2 o-rings of differing materials (EPDM and NBR).
• The combination of these two materials provides coverage over a broader spectrum of chemical applications, where possible leakage could occur through the shaft in standard valves.
• In addition to this, the quick 90¬∞positive on/off action makes these the ideal isolation valve.
• Over 30 years of experience in valve design have been incorporated into the engineering of this valve.
• The appFLO Ball Valve range is manufactured from heavy duty, engineering grade, glass-reinforced polypropylene, TPEE seats, and EPDM and NBR thermoplastic elastomer seals.
