AAP GRPP Full Flow Ball Valve, 15mm / 1/2"
Available

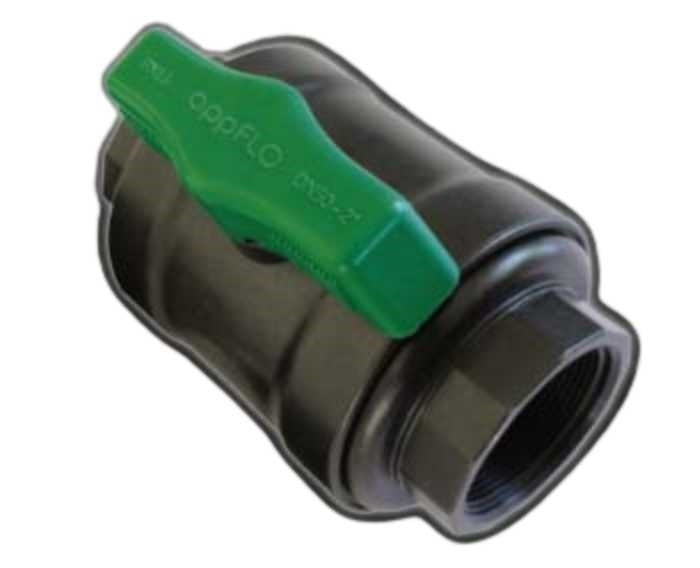

This AAP multi-purpose full flow ball valve has a glass reinforced polypropylene (GRPP) body and a green handle. It is supplied in 6 sizes from 1/2" (15mm) to 2" (50mm). A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. The handle sits in line with the port, so it shows the valve position.
The valve is full flow and non-directional, so it can be fitted either way round. It is suitable for potable water, non-potable water and a range of chemical applications. The shaft carries two O-rings in different materials, EPDM and NBR, which widens the range of chemicals covered where leakage past the shaft is a risk. The 15mm and 20mm valves have two seals on the shaft, and the other sizes have three.
Where this product is used
- Irrigation, rural and civil water distribution
- Potable and non-potable water lines
- Chemical dosing and treatment lines, once compatibility is checked
- Outdoor pipework that sees sunlight
Features
- 6 sizes from 1/2" (15mm) to 2" (50mm)
- Glass reinforced polypropylene body, stem, ball and handle
- Full flow, non-directional
- Pressure rating up to 1,600 kPa (16 bar) at 20°C
- Operating temperature above 0 and below 60°C
- Dual shaft O-rings in EPDM and NBR
- UV resistant, with a removable green handle

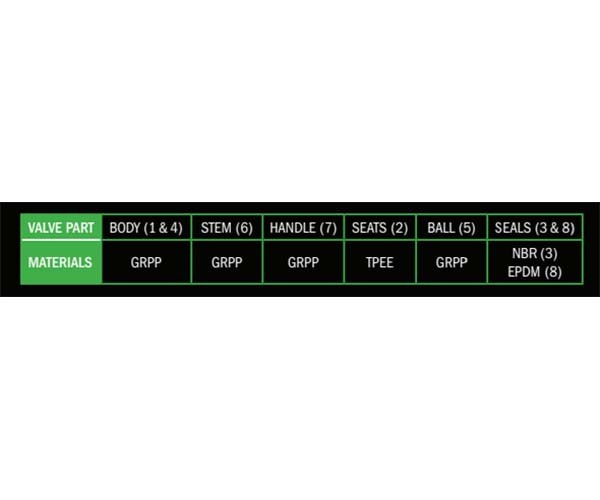

Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Multi-purpose full flow ball valve |
| Body, stem, ball and handle | Glass reinforced polypropylene (GRPP) |
| Seats | Thermoplastic polyester elastomer (TPEE) |
| Seals | NBR and EPDM |
| Connection | Female threaded |
| Pressure rating | Up to 1,600 kPa (16 bar) at 20°C |
| Operating temperature | Above 0 and below 60°C |
| Sizes | 1/2" (15mm) to 2" (50mm) (6 sizes) |
Choosing the right option
Choose the size to match your pipe thread. Use PTFE tape or an approved sealant on all thread joints, as AAP advises, and check chemical compatibility before using it on anything other than water.
Related AAP products: AAP PVC Ball Valve, Screwed (BSP), AAP UPVC Double Union Ball Valve, Screwed (BSP), AAP Brass Ball Valve, Stainless Steel Lever, Female x Female.
| Option | Part number | SKU |
|---|---|---|
| 15mm / 1/2" | VWPOLY15 | A0173487 |
| 20mm / 3/4" | VWPOLY20 | A0173488 |
| 25mm / 1" | VWPOLY25 | A0173489 |
| 32mm / 1-1/4" | VWPOLY32 | A0173490 |
| 40mm / 1-1/2" | VWPOLY40 | A0173491 |
| 50mm / 2" | VWPOLY50 | A0173492 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP GRPP Full Flow Ball Valve, Green Handle: 15mm / 1/2"
SKU: A0173487 | Model: VWPOLY15

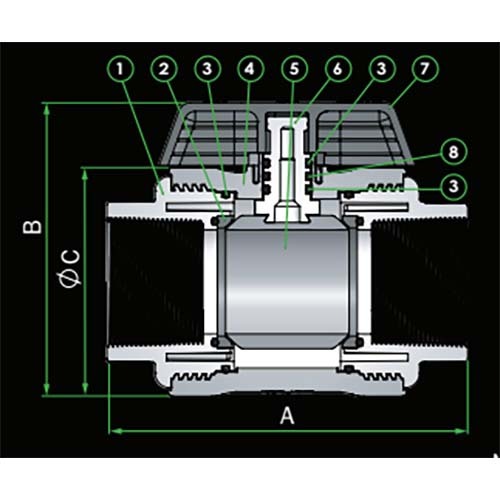

AAP VWPOLY15: AAP GRPP Full Flow Ball Valve, 15mm / 1/2". Valve Size: 15mm / 1/2". Valve Size (BSPT): 1/2. Dimension A (mm): 98.
