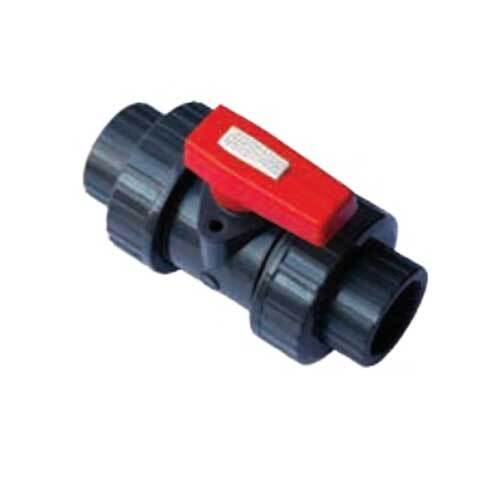

AAP Ball Valve PVC Double Union
- - Water, Weak acids and alkaline solutions, some corrosive liquids. (Consult Chemical Chart for suitability)
Material Lists
PART
MATERIAL
Body
UPVC
Seal Seat
PTFE
Ball
UPVC
Handle
ABS
O' Ring
VITON
About Ball Valves:
- A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
- When the orifice is in line with both ends of the valve fflow will occur.
- When the valve is closed the orifice is perpendicular to the ends of the valve.
- The lever/handle will be in line with the orificeposition, an indication of the valve position.
Specifications
Specifications
Specifications
Thread
AS1722.1
Max Working Temperature
600°C
Cold Working Pressure
150psi
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP Ball Valve PVC Double Union
AAP Ball Valve PVC Double Union
SKU: A0080338
Type: PVC Ball Valve
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP Ball Valve PVC Double Union by AAP is a PVC Ball Valve made of UPVC. It provides a Cold Working Pressure of 150psi and is suitable for flow control and water weak acids and alkaline solutions and some corrosive liquids.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
AAP Ball Valve PVC Double Union
- - Water, Weak acids and alkaline solutions, some corrosive liquids. (Consult Chemical Chart for suitability)
Material Lists
PART
MATERIAL
Body
UPVC
Seal Seat
PTFE
Ball
UPVC
Handle
ABS
O' Ring
VITON
About Ball Valves:
- A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
- When the orifice is in line with both ends of the valve fflow will occur.
- When the valve is closed the orifice is perpendicular to the ends of the valve.
- The lever/handle will be in line with the orificeposition, an indication of the valve position.
Specifications
Specifications
Specifications
Thread
AS1722.1
Max Working Temperature
600°C
Cold Working Pressure
150psi
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP Ball Valve PVC Double Union
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The AAP Ball Valve PVC Double Union by AAP is a PVC Ball Valve made of UPVC. It provides a Cold Working Pressure of 150psi and is suitable for flow control and water weak acids and alkaline solutions and some corrosive liquids. |
Regular price
From $46.07
Sale price
From $46.07
Regular price
Unit price
/per
| AAP | PVC Ball Valve |
Pipe Size (inch)
3/4,1,1-1/4,1-1/2,2
Pipe Size (mm)
20,25,32,40,50
|
Choose your option
AAP Ball Valve PVC Double Union
AAP Ball Valve PVC Double Union
SKU: A0080338
Type: PVC Ball Valve
Hurry up, only 16 items left in stock.
The AAP Ball Valve PVC Double Union by AAP is a PVC Ball Valve made of UPVC. It provides a Cold Working Pressure of 150psi and is suitable for flow control and water weak acids and alkaline solutions and some corrosive liquids.
