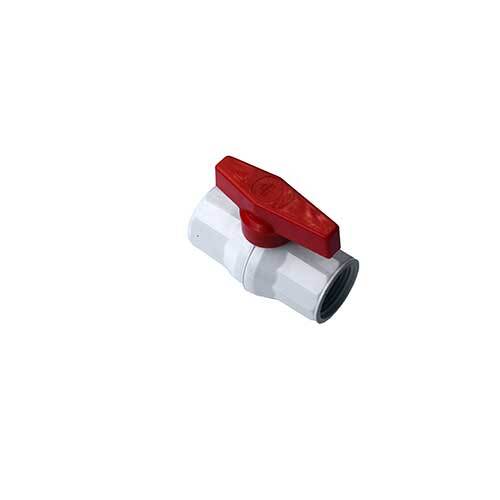

AAP PVC Ball Valve, 1/2"

This AAP PVC ball valve has screwed female ends. It is supplied in 8 sizes from 1/2" (15mm) to 4" (100mm). A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. The handle sits in line with the port, so it shows the valve position.

It suits agriculture, turf and home watering systems. The body is PVC, with a removable end cap for serviceability and an ABS handle that is vandal-proof, removable and reversible. Plastic valves lose pressure rating as temperature rises.

Where this product is used

• Irrigation, turf and home watering lines
• Agricultural water supply pipework
• Water transfer and pump isolation
• Garden and light-duty plumbing

Features

• 8 sizes from 1/2" (15mm) to 4" (100mm)
• Removable end cap for serviceability
• Vandal-proof ABS handle, removable and reversible for maintenance and security
• Screwed female ends, thread to AS 1722.1
• Cold working pressure 800 kPa (8 bar)
• Individual box packaging from 1/2" to 2"
• 100% pressure tested

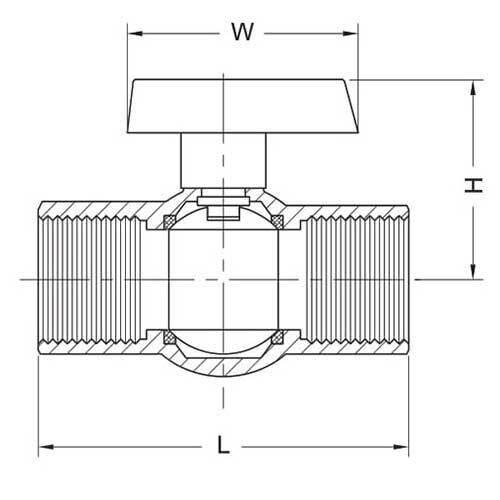

Key specifications

Choosing the right option

Choose the size to match your pipe thread.
