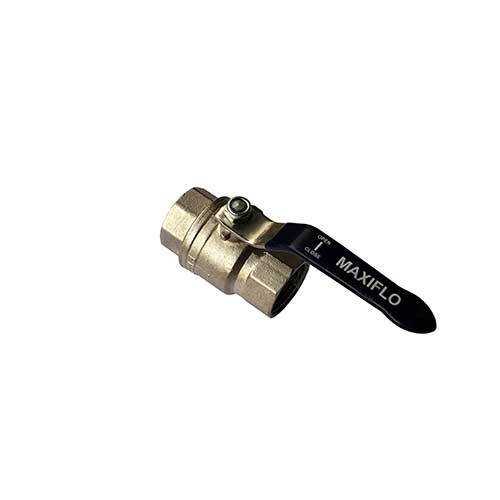

AAP Brass Ball Valve, 1/4"
Available
This AAP general purpose brass ball valve has a plastic-coated stainless steel lever and female threaded ends. It is supplied in 10 sizes from 1/4" (8mm) to 4" (100mm). A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. The handle sits in line with the port, so it shows the valve position.
The body and seat retainer are nickel-plated brass, the ball is chromium-plated brass, the seat is PTFE and the stem packing is a double Viton O-ring.
Where this product is used
- Isolating hot and cold non-potable water lines
- Compressed air line shut-off
- Oil and chemical lines, once you have checked compatibility
- Irrigation, pump and general industrial pipework
Features
- 10 sizes from 1/4" (8mm) to 4" (100mm)
- Female x female threaded ends
- Plastic-coated stainless steel lever
- Cold working pressure 2,500 kPa (25 bar), maximum 150°C
- Nickel-plated brass body with a chromium-plated brass ball
- Thread to AS 1722.2
- PTFE seat with double Viton O-ring stem packing
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | General purpose brass ball valve |
| Body | Nickel-plated brass |
| Ball | Chromium-plated brass |
| Seat | PTFE |
| Stem packing | Viton, double O-ring |
| Operator | Stainless steel lever, plastic coated |
| Connection | Female x female |
| Thread | AS 1722.2 |
| Cold working pressure | 2,500 kPa (25 bar) |
| Maximum temperature | 150°C |
| Sizes | 1/4" (8mm) to 4" (100mm) (10 sizes) |
Choosing the right option
Choose the size to match your pipe thread. This valve is rated for non-potable water, so use a DR valve for drinking water supply.
Related AAP products: AAP Brass Ball Valve, Stainless Steel Lever, Male x Female, AAP Brass Ball Valve, Short Thread, Stainless Steel Lever, AAP Mini Brass Ball Valve, Stainless Steel Lever, Female x Female, AAP Stainless Steel Ball Valve, 2-Piece, Full Bore.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | VBB08 | A0080245 |
| 1/2" | VBB15 | A0080247 |
| 1" | VBB25 | A0080249 |
| 1-1/4" | VBB32 | A0080250 |
| 2" | VBB50 | A0080252 |
| 2-1/2" | VBB65 | A0080253 |
| 3/8" | VBB10 | A0080246 |
| 3/4" | VBB20 | A0080248 |
| 3" | VBB80 | A0080254 |
| 4" | VBB94 | A0080255 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Brass Ball Valve, Stainless Steel Lever, Female x Female: 1/4"
SKU: A0080245 | Model: VBB08

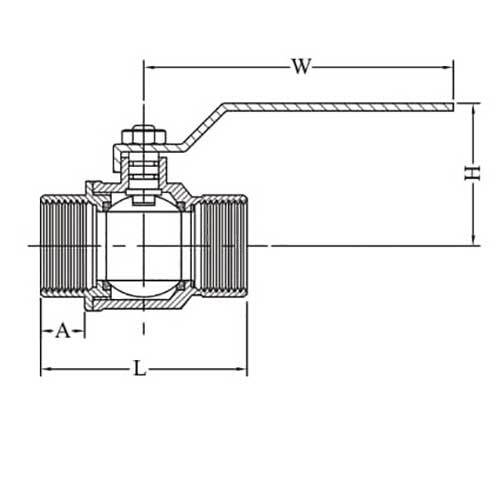

AAP VBB08: AAP Brass Ball Valve, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Valve Length (l): 49.5.
