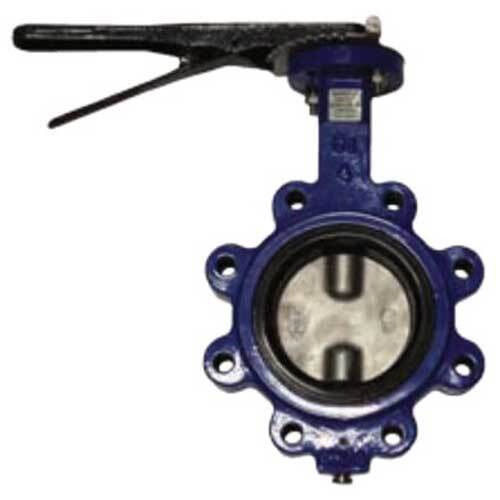

AAP 2" NBR Lugged Butterfly Valve | AIMS Industrial

AAP NBR Lugged Butterfly Valve ANSI-150

•  Resilient seat Butterfly Valves are used in a wide flange of industries including HVAC, Gas, Petrochemical, Pulp & Paper, Water & Wastewater Treatment, Brewing, Food processing, mining, Textile, and General Industry.
• They are compact and give bubble tight shut off as well as having good regulating capabilities.

Lugged Butterfly Style

• Like the wafer style, the lugged body is compact but has a series of lugs cast into the body which are tapped with a metric thread for the fixing of a flange on one side at a time.
• The benefit of this being the valve can be mounted at the end of a pipeline without the need for a flange on the flownstream (discharge) side of the valve.
• *AAP 50mm to 300mm Lugged Butterfly Style EPDM version is Australian Standard Watermark (Certificate No: WMKA25460) approved and using Akzo Nobel Paint

Materials List
PART
MATERIAL
Body
Ductile Iron
Handle
Ductile Iron
Stem
SS416
Hub Shaft
CF8M
Bushing
P.T.F.E.
O-Ring
NBR
