1/4 x 1/8 in (8 x 6 mm) Reducing Hexagon Nipple, NPT, Black | PN0806
Available

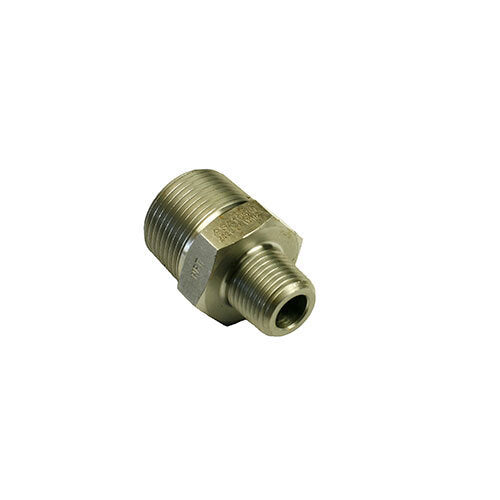

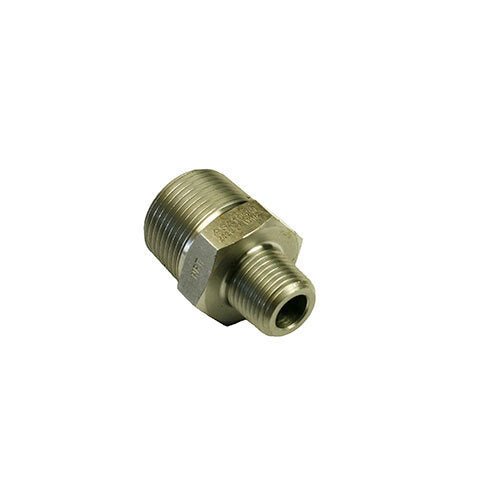

This AAP reducing hexagon nipple is a forged carbon steel fitting with NPT thread and a black finish. It is supplied in 20 sizes, 1/4 x 1/8 in (8 x 6 mm) to 3 x 2 in (80 x 50 mm).

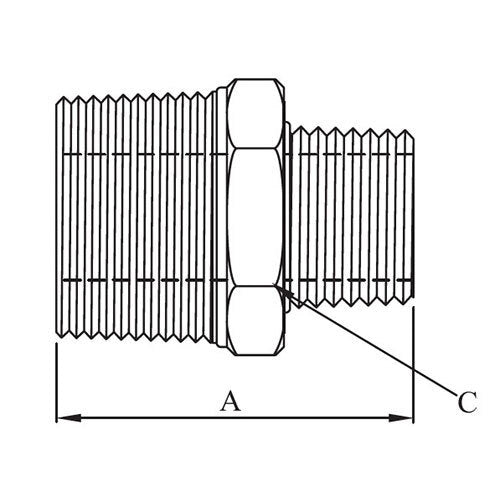

A reducing hexagon nipple has a thread at each end and a hexagon in the middle, with the two threads in different sizes. It joins two female threaded fittings of different sizes. The size is given as the larger thread first, then the smaller. A is its overall length and C is the width of the hexagon, as lettered on the AAP drawing.
AAP rates its threaded high pressure fittings at 3000 lb (manufacturer-stated). AAP's pressure and temperature chart for screwed and socket welding fittings lists 3000 lb fittings at 3000 psi (about 20.7 MPa) from -20 to 100 degrees F (-29 to 38 degrees C), reducing to 355 psi (about 2.4 MPa) at 1000 degrees F (538 degrees C). AAP lists ASTM A105 carbon steel forgings among the standards for the range.
Where this product is used
- High pressure threaded pipework in carbon steel, as listed by AAP for the 3000 lb range
- Stepping down from one female thread size to another
- Joining a valve or fitting to a smaller port
Features
- 20 sizes, 1/4 x 1/8 in (8 x 6 mm) to 3 x 2 in (80 x 50 mm)
- 3000 lb forged carbon steel, BS 3799-1974 (manufacturer-stated)
- NPT, black
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Reducing hexagon nipple, forged carbon steel |
| Thread | NPT taper threads to ANSI B1.20.1 (manufacturer-stated) |
| Finish | Black |
| Rating (manufacturer-stated) | 3000 lb, threaded end |
| Applicable standard (manufacturer-stated) | BS 3799-1974 |
| Material | Carbon steel forging (AAP lists ASTM A105 among the standards for the range, manufacturer-stated) |
| Marking (manufacturer-stated) | Sizes 3/8 in and under: brand only. 1/2 in to 4 in: brand, material, heat number, B16, pressure and size |
| Sizes | 1/4 x 1/8 in (8 x 6 mm) to 3 x 2 in (80 x 50 mm) (20 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Hex width C (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/4 x 1/8 in (8 x 6 mm) | PN0806 | 31 | 15 | 0.03 |
| 3/8 x 1/4 in (10 x 8 mm) | PN1008 | 39 | 18 | 0.05 |
| 1/2 x 1/4 in (15 x 8 mm) | PN1508 | 43 | 22 | 0.08 |
| 1/2 x 3/8 in (15 x 10 mm) | PN1510 | 44 | 22 | 0.08 |
| 3/4 x 3/8 in (20 x 10 mm) | PN2010 | 46 | 27 | 0.13 |
| 3/4 x 1/2 in (20 x 15 mm) | PN2015 | 50 | 27 | 0.12 |
| 1 x 1/4 in (25 x 8 mm) | PN2508 | 52 | 35 | 0.2 |
| 1 x 3/8 in (25 x 10 mm) | PN2510 | 53 | 35 | 0.25 |
| 1 x 1/2 in (25 x 15 mm) | PN2515 | 55 | 35 | 0.24 |
| 1 x 3/4 in (25 x 20 mm) | PN2520 | 56 | 35 | 0.2 |
| 1-1/4 x 1/2 in (32 x 15 mm) | PN3215* | 55 | 46 | 0.46 |
| 1-1/4 x 3/4 in (32 x 20 mm) | PN3220* | 55 | 46 | 0.45 |
| 1-1/4 x 1 in (32 x 25 mm) | PN3225* | 60 | 46 | 0.44 |
| 1-1/2 x 3/4 in (40 x 20 mm) | PN4020 | 57 | 50 | 0.6 |
| 1-1/2 x 1 in (40 x 25 mm) | PN4025 | 62 | 50 | 0.53 |
| 1-1/2 x 1-1/4 in (40 x 32 mm) | PN4032 | 62 | 50 | 0.52 |
| 2 x 1 in (50 x 25 mm) | PN5025 | 70 | 62 | 1.03 |
| 2 x 1-1/4 in (50 x 32 mm) | PN5032 | 70 | 62 | 0.85 |
| 2 x 1-1/2 in (50 x 40 mm) | PN5040 | 70 | 62 | 0.84 |
| 3 x 2 in (80 x 50 mm) | PN8050* | 86 | 95 | 2.22 |
A and C are the dimensions lettered on the AAP drawing, in millimetres. AAP marks some sizes with an asterisk (PN3215*, PN3220*, PN3225*, PN8050*): these are made to AAP own dimensions (manufacturer-stated).
Selecting the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins. Sizes are listed as the larger thread first, then the smaller. AAP also lists a size in this range (PN2008), which AIMS does not currently list. Ask if you need it.
Related products
See also AAP 3000lb Hexagon Nipple, NPT, Black, AAP 3000lb Hexagon Head Bush, NPT, Black and AAP 3000lb Hexagon Plug, NPT, Black.
