AAP Resilient Gate Valve Clockwise Socket End1

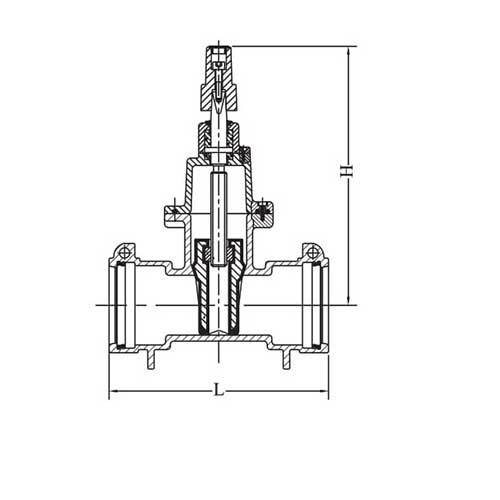

AAP Resilient Gate Valve Clockwise Socket End2

AAP 100mm, 4" Resilient Gate Valve Clockwise Socket End VRSCC100SOC

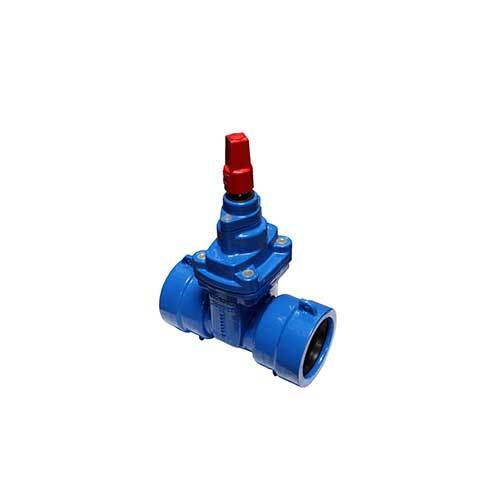

AAP 150mm, 6" Resilient Gate Valve Clockwise Socket End VRSCC150SOC

AAP 200mm, 8" Resilient Gate Valve Clockwise Socket End VRSCC200SOC

AAP 225mm, 9" Resilient Gate Valve Clockwise Socket End VRSCC225SOC

AAP 250mm, 10" Resilient Gate Valve Clockwise Socket End VRSCC250SOC

AAP 300mm, 12" Resilient Gate Valve Clockwise Socket End VRSCC300SOC

Specifications +

Specifications

Max Working Temperature - 40°C
Cold Working Pressure - 1600kPa
Design - AS2638.2*
flanged Drilling T/C - AS4087
flanged Drilling T/E - AS2129
Socket Ends - AS2280
Coating Thickness - AS4158

Application +

Applications:

Water, sewage and neutral liquid applications

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Resilient Gate Valve Clockwise Socket End

SKU: A0081396

Type: Gate Valve

$525.05

Inc. GST

The AAP Resilient Gate Valve Clockwise Socket End by AAP is a Resilient Gate Valve with ductile iron body epoxy resin coating. It provides 1600kPa cold working pressure and is suitable for drinking water distribution applications.

Available

Product Highlights −

AAP Resilient Gate Valve Clockwise Socket End

Materials

Body - Ductile Iron (epoxy resin coating)
Bonnet - Ductile Iron (epoxy resin coating)
Wedge - Ductile Iron (bonded Rubber)
Stem - 431 Stainless Steel
O'Ring - EPDM
Seal Bushing - EPDM

About Resilient Seat Gate Valves

certified to AS/NZS:2638:2011
AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
Sydney Water Approval - No. 200808
Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
South East Water SEW 12/0117
Hunter Water Corporation HWC 2012-35/49/1
The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise
For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
N.B DN50 and DN65 are not covered by AS2638.2
