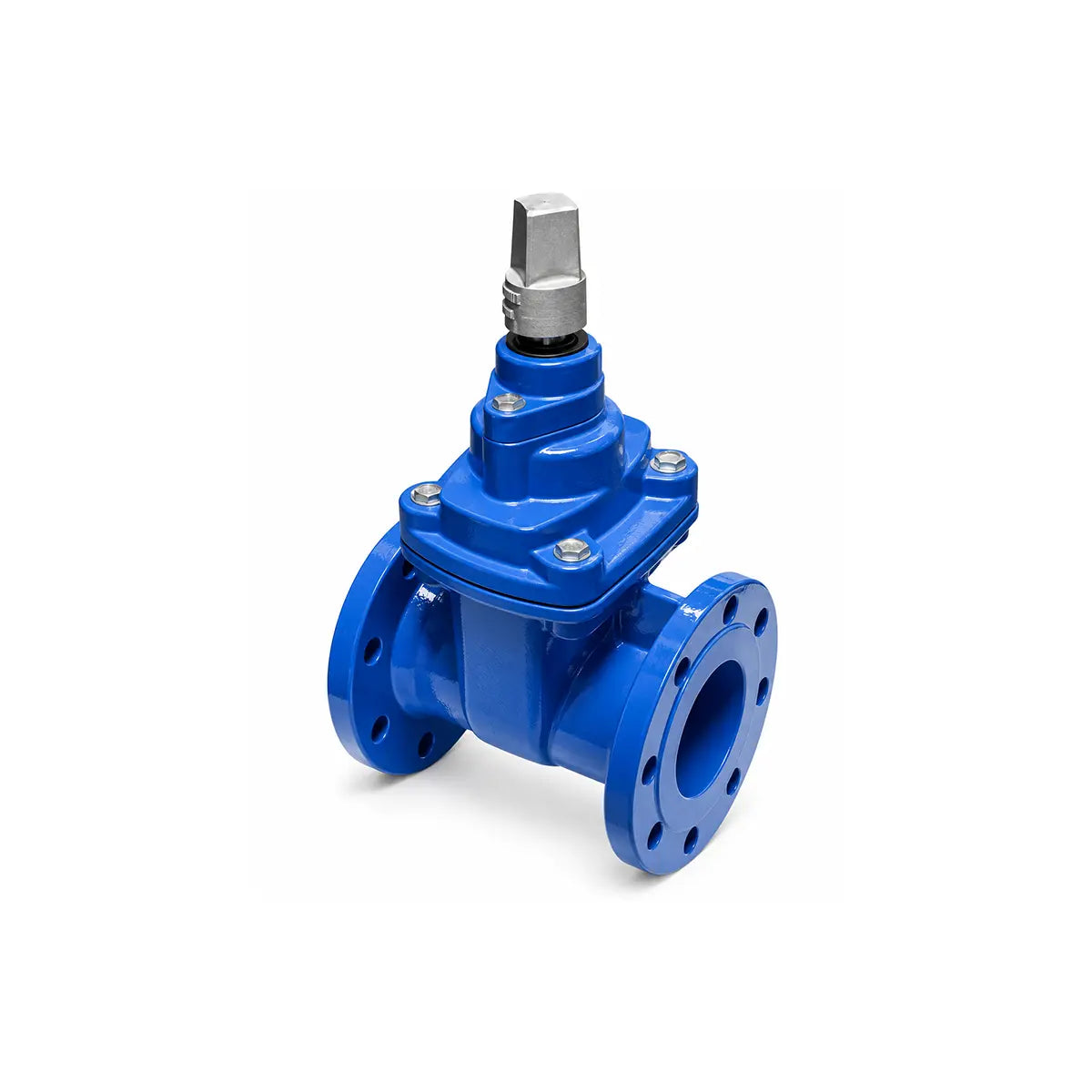

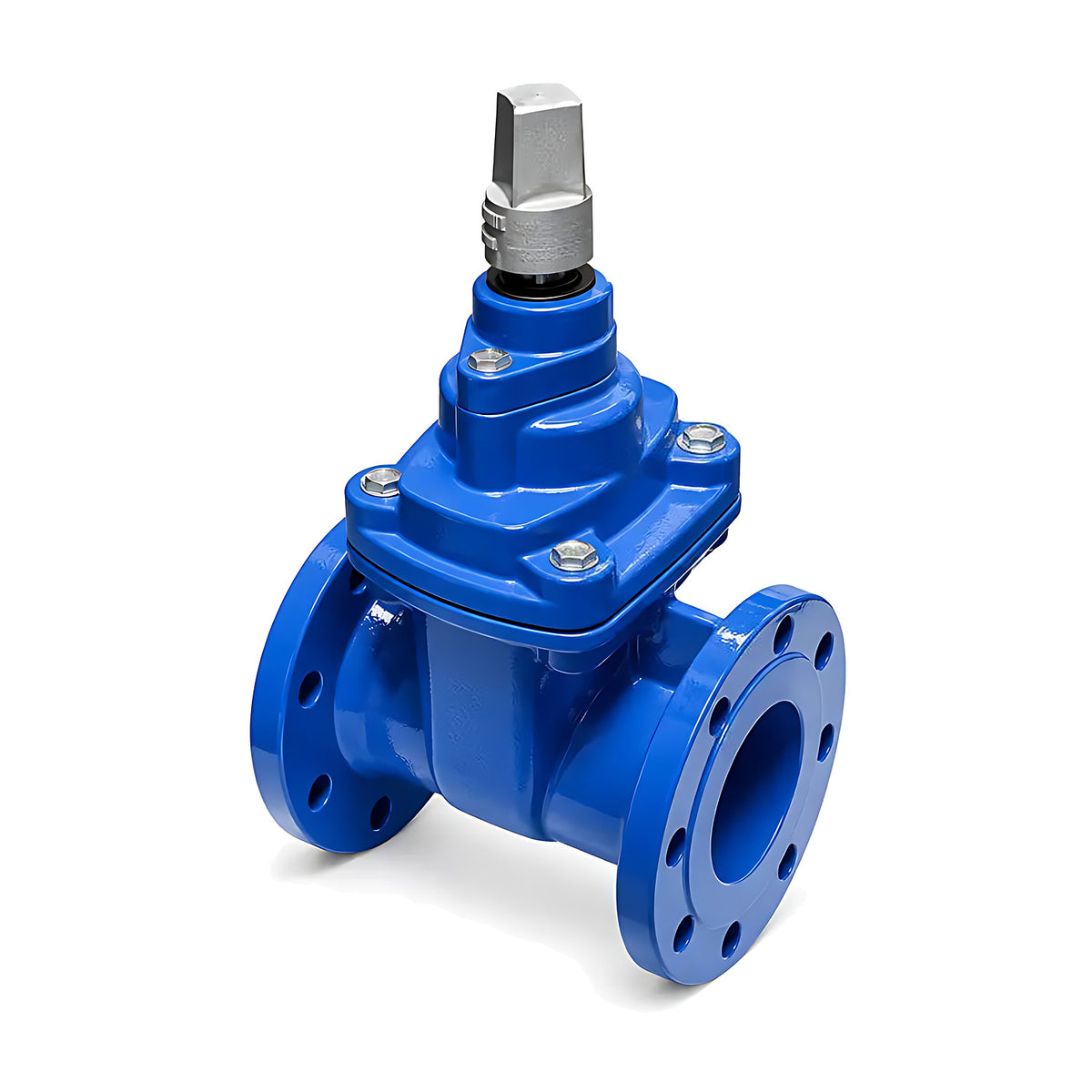

AAP Resilient Seat Gate Valve DN100 4" Anticlockwise Table E
Available
The AAP resilient seat gate valve (anticlockwise operation, Table E flanged) is a ductile iron isolation valve for water, sewage and neutral liquid lines. It suits water authorities, civil and plumbing contractors and maintenance teams working on mains and pump station pipework.
The body and bonnet are epoxy-coated ductile iron, the wedge is ductile iron with bonded rubber, and the stem is 431 stainless steel with EPDM O-rings and seal bushing. Valves are identified by cap colour — white cap for anticlockwise. Available in DN100 to DN300 sizes, depending on direction.
At a glance
| Operation | Anticlockwise |
|---|---|
| End connection | Flanged, drilled to AS 2129 Table E |
| Cold working pressure | 1600 kPa |
| Max. working temperature | 40°C |
| Body / wedge | Ductile iron, epoxy coated / rubber-bonded ductile iron |
| Design standard | AS/NZS 2638.2 |
- Water supply — isolation on potable water mains and reticulation
- Sewage — isolation on sewer rising mains and pump stations
- Neutral liquids — general isolation duties on neutral liquid pipework
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
4 in (100 mm)
Model Number: VRSACC100E
-
8 in (200 mm)
Model Number: VRSACC200E
-
10 in (250 mm)
Model Number: VRSACC250E
-
12 in (300 mm)
Model Number: VRSACC300E
