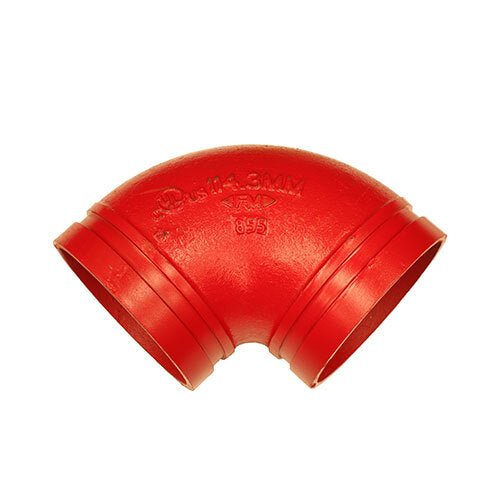

AAP Roll Groove 90 Degree Elbow, 1"

This AAP roll groove 90° elbow is a painted ductile iron fitting for grooved pipe. It is supplied in 10 sizes, 1" (25mm) to 10" (250mm). A 90° elbow turns a roll groove pipe run through a right angle. Both ends are grooved to take a roll groove coupling, so the joint needs no welding, threading or flanging. A is the centre to end dimension.

The roll groove fittings are made in ductile iron to ASTM A536 Grade 65-45-12. Roll groove suits standard pipe with cut grooves, or standard and light wall pipe with rolled grooves. The working pressure is 2500 kPa and the maximum working temperature is 100 °C. Working pressures may also be limited by pressure piping codes or industry regulations.

Where this product is used

• Turning grooved pipework through 90°
• Pipe runs where a grooved joint is quicker than welding, threading or flanging
• Services within the rated pressure and temperature

Features

• 10 sizes, 1" (25mm) to 10" (250mm)
• Ductile iron, ASTM A536 Grade 65-45-12
• Grooved joint, no welding, threading or flanging
• Working pressure 2500 kPa

Key specifications

Choosing the right option

Choose the size to match your pipe. Each grooved joint also needs a roll groove coupling, which is a separate item.

Related AAP products: AAP Roll Groove 90 Degree Elbow, Galvanised, AAP Roll Groove 45 Degree Elbow, Painted, AAP Roll Groove Equal Tee, Painted, AAP Roll Groove Rigid Coupling, Painted.
