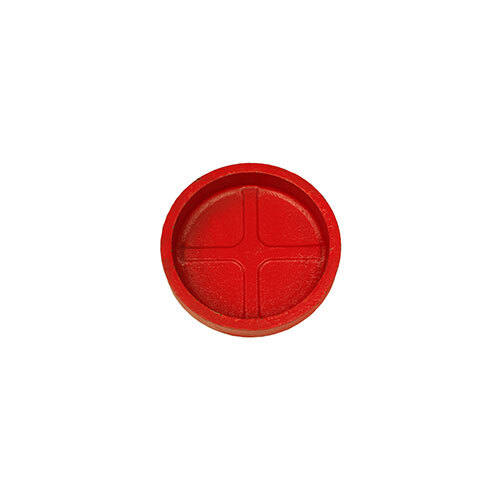

AAP Roll Groove Cap, 2"

This AAP roll groove cap is a painted ductile iron fitting for grooved pipe. It is supplied in 6 sizes, 2" (50mm) to 8" (200mm). A cap closes the end of a grooved pipe. It is grooved to take a roll groove coupling and has a closed end. A is the length.

The roll groove fittings are made in ductile iron to ASTM A536 Grade 65-45-12. Roll groove suits standard pipe with cut grooves, or standard and light wall pipe with rolled grooves. The working pressure is 2500 kPa and the maximum working temperature is 100 °C. Working pressures may also be limited by pressure piping codes or industry regulations.

Where this product is used

• Closing the end of a grooved pipe
• Sealing off a pipe run for testing or future extension
• Services within the rated pressure and temperature

Features

• 6 sizes, 2" (50mm) to 8" (200mm)
• Ductile iron, ASTM A536 Grade 65-45-12
• Grooved joint, no welding, threading or flanging
• Working pressure 2500 kPa

Key specifications

Choosing the right option

Choose the size to match your pipe. Each grooved joint also needs a roll groove coupling, which is a separate item.

Related AAP products: AAP Roll Groove Cap, Galvanised, AAP Roll Groove Equal Tee, Painted, AAP Roll Groove Concentric Reducer, Painted, AAP Roll Groove Rigid Coupling, Painted.
