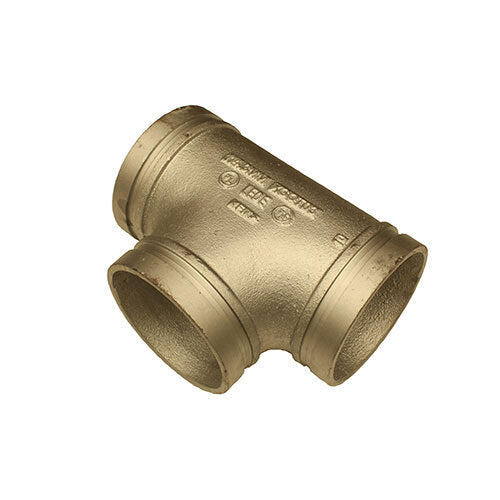

AAP Roll Groove Reducing Tee, 3" x 3" x 4"

This AAP roll groove reducing tee is a galvanised ductile iron fitting for grooved pipe. It is supplied in 3 sizes, 3 x 3 x 4" (80 x 80 x 100mm) to 6 x 4" (150 x 100mm). A reducing tee has three grooved ports and a branch of a different size to the run. Each port is grooved to take a roll groove coupling. A is the centre to end dimension.

The roll groove fittings are made in ductile iron to ASTM A536 Grade 65-45-12. This version is galvanised, and gives its coating as hot dip zinc galvanising. Roll groove suits standard pipe with cut grooves, or standard and light wall pipe with rolled grooves. The working pressure is 2500 kPa and the maximum working temperature is 100 °C. Working pressures may also be limited by pressure piping codes or industry regulations.

Where this product is used

• Taking a smaller branch off a grooved pipe run
• Reducing the size of a branch without a separate reducer
• Services within the rated pressure and temperature

Features

• 3 sizes, 3 x 3 x 4" (80 x 80 x 100mm) to 6 x 4" (150 x 100mm)
• Ductile iron, ASTM A536 Grade 65-45-12
• Grooved joint, no welding, threading or flanging
• Working pressure 2500 kPa

Key specifications

Choosing the right option

Choose the size to match your pipe. Each grooved joint also needs a roll groove coupling, which is a separate item.
