1/2 in (15 mm) Slip-On Forged Flange, BS10 Table H | SFHS15
Available

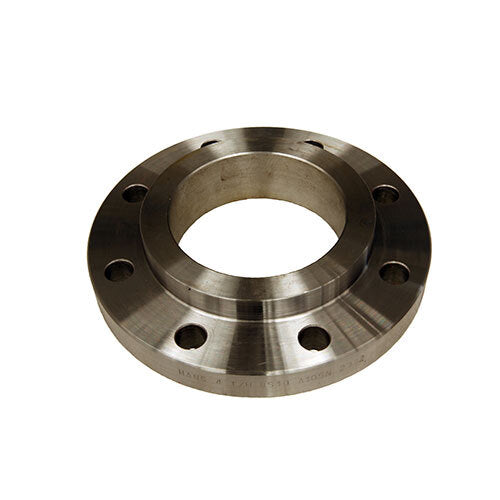

This AAP slip-on forged flange is made from forged steel to BS10 Table H (manufacturer-stated). It is supplied in 9 sizes from 1/2 in (15 mm) to 6 in (150 mm).
A slip-on flange slides over the end of the pipe and is fillet welded to it. It is easier to align than a weld neck flange and suits general pipework. AAP describes forged steel flanges as commonly specified in the oil, gas, petrochemical and mining sectors, where pressure, temperature and safety considerations are higher. They are hot forged and then machined.
AAP's temperature-pressure table for carbon steel flanges rates Table H at 3,500 kPa (35 bar) from -50 to 232 °C, stepping down as temperature rises above 232 °C, with a maximum hydrostatic test pressure of 5,250 kPa. That table is headed for plate flanges, so confirm the rating with AIMS if your duty is close to the limit.
Where this product is used
- General pipework joints where the flange is welded on to the pipe
- Connecting pipe to flanged valves, pumps and fittings
- Replacing or extending flanged pipework
- Oil, gas, petrochemical and mining pipework
Features
- 9 sizes from 1/2 in (15 mm) to 6 in (150 mm)
- Made to BS10 Table H (manufacturer-stated)
- Material: forged steel
- Table H rating 3,500 kPa (35 bar) from -50 to 232 °C, per the manufacturer
- Slip-on design, welded to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Slip-on forged flange |
| Standard (manufacturer-stated) | BS10 Table H |
| Material | Forged steel |
| Connection | Slip-on, welded to the pipe |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (9 sizes) |
| Rating (AAP carbon steel flange table) | 3,500 kPa (35 bar) from -50 to 232 °C |
| Maximum hydrostatic test pressure | 5,250 kPa (52.5 bar) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

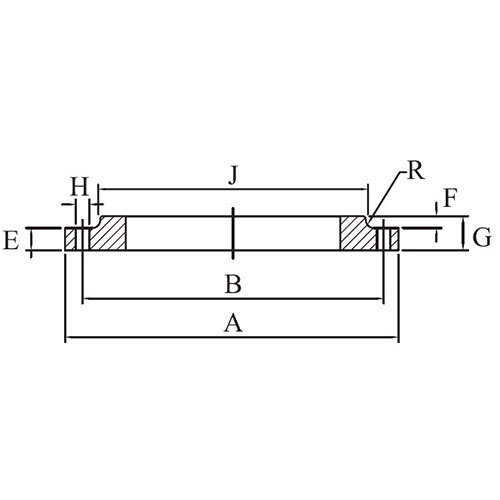

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | SFHS15 | 114.3 | 82.6 | 4 x 18 mm | M16 | 12.7 | 1 |
| 1 in (25 mm) | SFHS25 | 120.7 | 87.3 | 4 x 18 mm | M16 | 14.3 | 1.2 |
| 1-1/4 in (32 mm) | SFHS32 | 133.4 | 98.4 | 4 x 18 mm | M16 | 17.5 | 1.8 |
| 1-1/2 in (40 mm) | SFHS40 | 139.7 | 104.8 | 4 x 18 mm | M16 | 17.5 | 1.9 |
| 2 in (50 mm) | SFHS50 | 165.1 | 127 | 4 x 18 mm | M16 | 19 | 3 |
| 2-1/2 in (65 mm) | SFHS65 | 184.1 | 146 | 8 x 18 mm | M16 | 19 | 3.7 |
| 3 in (80 mm) | SFHS80 | 205 | 165.1 | 8 x 18 mm | M16 | 22.2 | 5.1 |
| 4 in (100 mm) | SFHS94 | 228.6 | 190.5 | 8 x 18 mm | M16 | 25.4 | 6.9 |
| 6 in (150 mm) | SFHS96 | 304.8 | 260.3 | 12 x 22 mm | M20 | 28.6 | 12.5 |
Selecting the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Screwed Forged Flange, BS10 Table H, AAP Slip-On Forged Flange 4 in (100 mm), BS10 Table D, AAP Slip-On Forged Flange, BS10 Table E and AAP Screwed Forged Flange, BS10 Table D, Galvanised.
