AAP Spring Hydrant Valve, 3"
Available

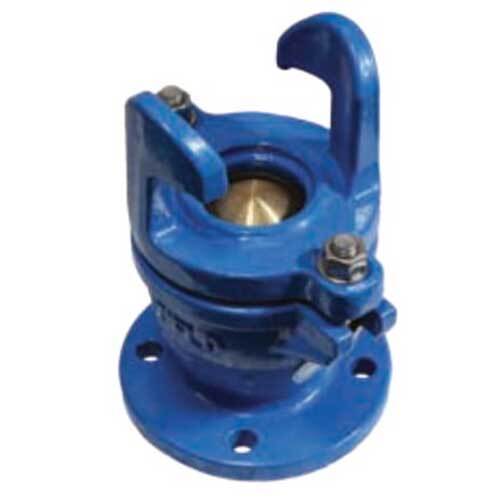

This AAP spring hydrant valve has a ductile iron body, a rubber seat, a stainless steel spring and a flange drilled to AAP's Table C pattern. It is supplied in 2 sizes, 3" (80mm) and 4" (100mm). It is made to AS 3952:2002, the Australian standard for spring hydrant valves for waterworks purposes.
The maximum working temperature is 40°C and the cold working pressure is 1,600 kPa (16 bar), with a seat infiltration resistance of 55 kPa (vacuum).
Where this product is used
- Waterworks hydrant valve duty, as the AS 3952 title indicates
- Water and neutral liquid applications
Features
- 2 sizes, 3" (80mm) and 4" (100mm)
- Ductile iron body and yoke, EPDM rubber seat
- 304 stainless steel spring and 316 stainless steel fasteners
- Design and hydraulic test to AS 3952
- Cold working pressure 1,600 kPa (16 bar), maximum 40°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Spring hydrant valve |
| Body and yoke | Ductile iron |
| Seat | Rubber (EPDM) |
| Dome | Copper alloy |
| Spring | 304 stainless steel |
| Fasteners | 316 stainless steel |
| Flange | Table C, AS 4087 |
| Design and hydraulic test | AS 3952 |
| Cold working pressure | 1,600 kPa (16 bar) |
| Maximum temperature | 40°C |
| Seat infiltration resistance | 55 kPa (vacuum) |
| Applications | Water and neutral liquids |
| Sizes | 3" (80mm) to 4" (100mm) (2 sizes) |
Choosing the right option
Choose the size to match your Table C flange and check the hole count against the mating flange.
Related AAP products: AAP Resilient Seat Gate Valve, Clockwise, Spindle Cap, Table C.
| Option | Part number | SKU |
|---|---|---|
| 3" | VSH80 | A0081693 |
| 4" | VSH100 | A0081694 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Spring Hydrant Valve, Flanged, Table C: 3"
SKU: A0081693 | Model: VSH80
AAP VSH80: AAP Spring Hydrant Valve, 3". Hole Diameter: 18. Approx. Kg/pc: 12.5. Number Of Hole: 4.
