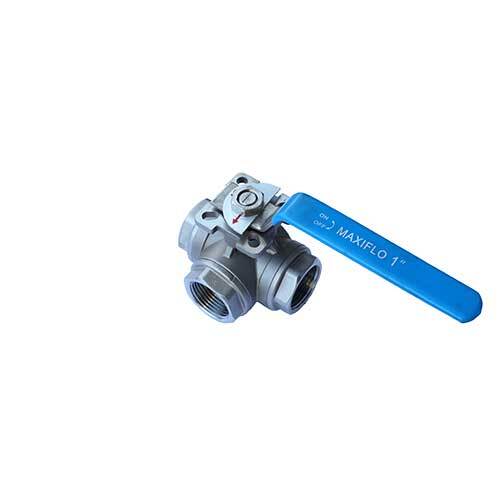

AAP Stainless Steel Ball Valve 3-Way L-Port

AAP Stainless Steel Ball Valve 3-Way L-Port

• For air, water, Hot/Cold corrosive fluid in harsh environments.

Thread
AS1722.1
Max Working Temperature
180°C
Cold Working Pressure
6895kPa

Material Lists

Part
Material
Body
CF8M
Ball
316 Stainless Steel
Seat
Teflon (PTFE)
Stem
316 Stainless Steel
Lever
316 Stainless Steel with Locking Device

About Ball Valves

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve flow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orifice position, an indication of the valve position.
