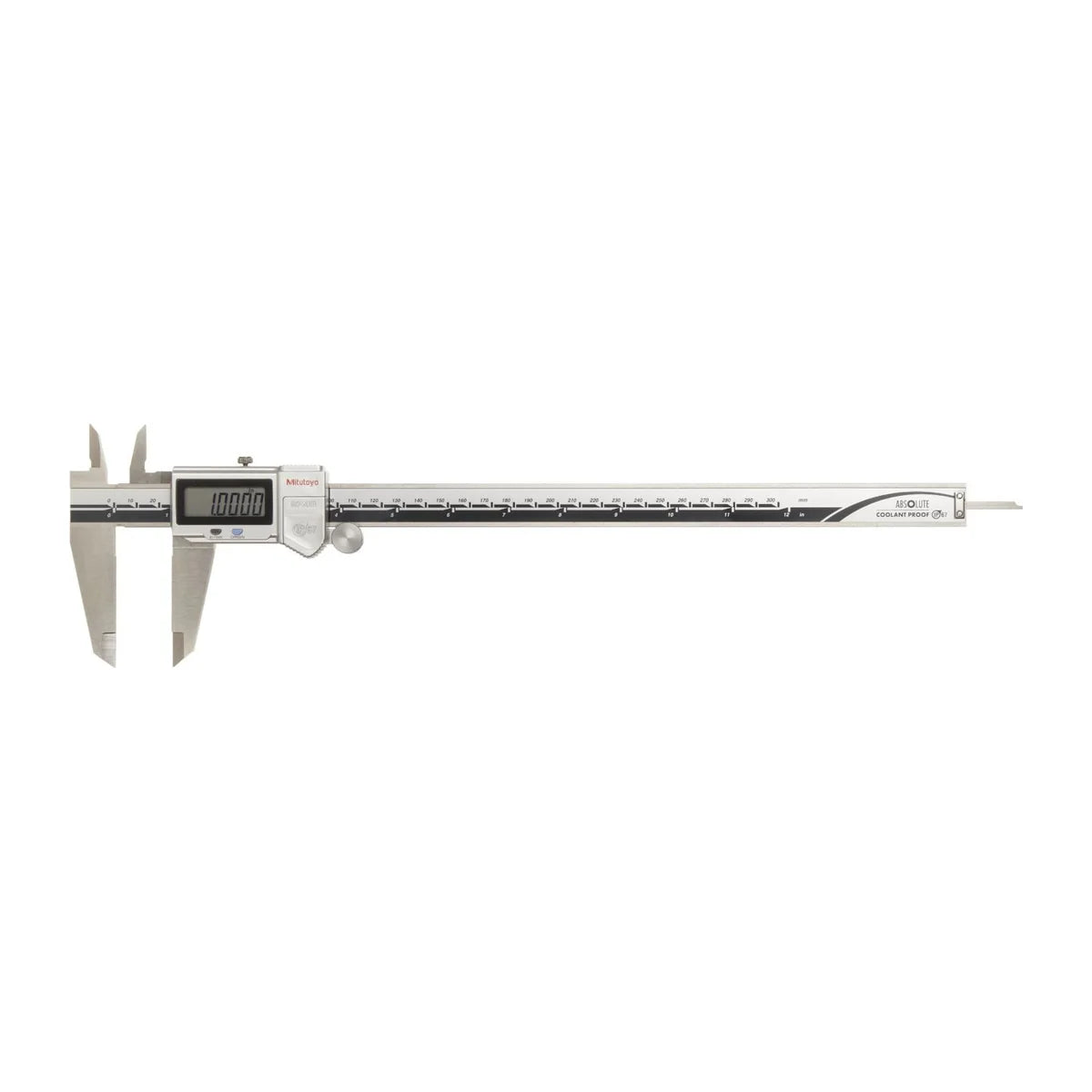

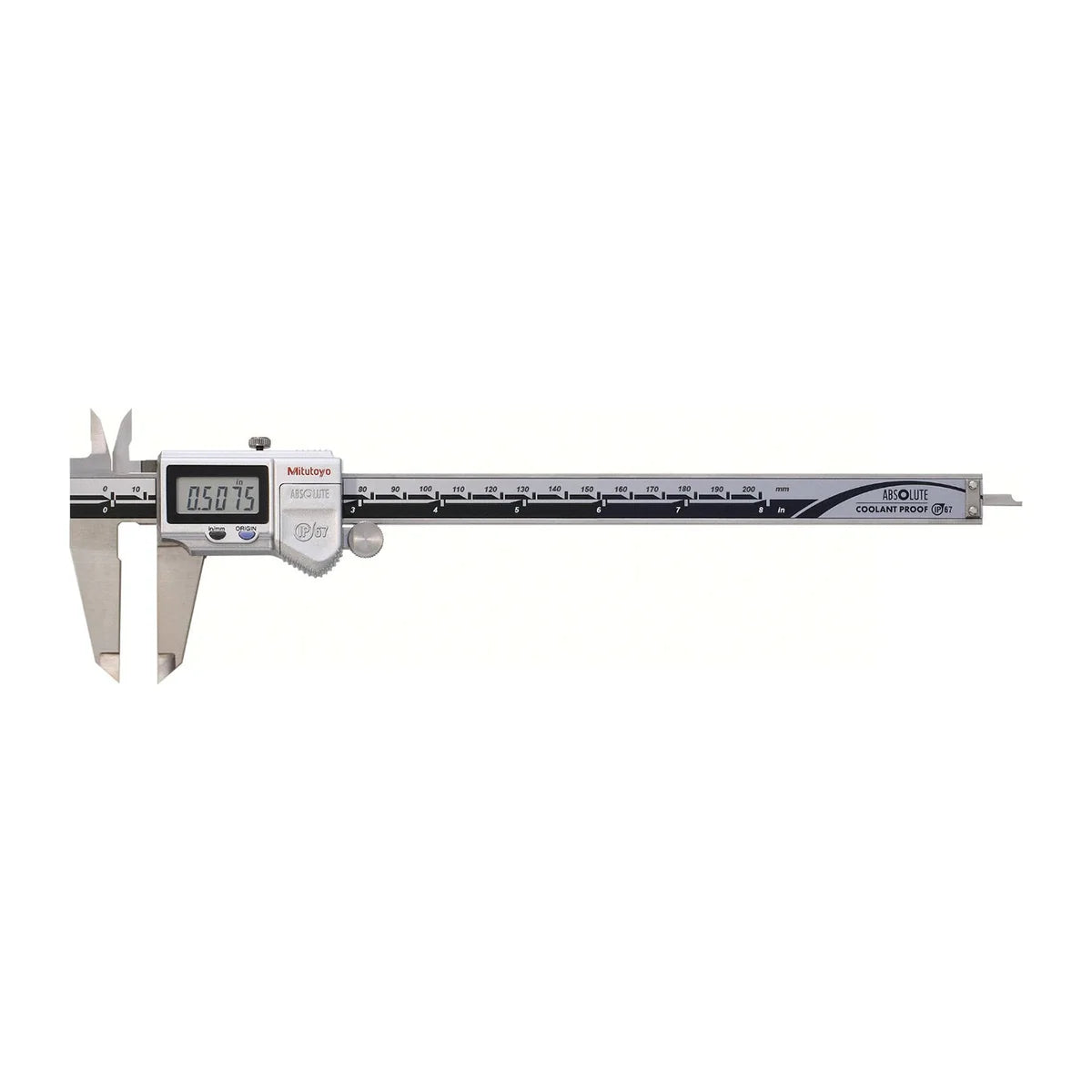

Mitutoyo 500-753-20 IP67 Digital Caliper 8"

The Mitutoyo Series 500 ABSOLUTE coolant proof caliper is a digital caliper built for workshops where coolant, water, dust or oil get on the tools. Machinists, toolrooms and inspectors use it because the digital display cuts reading errors, and there is no need to reset the origin after switching on. It reads in inches or millimetres.

IP67 means the caliper is dust-tight and can handle a short dip in water. Dry the tool after use. ABSOLUTE means it keeps its origin when switched off, so there is no need to reset it. These three codes have no SPC data output. SPC output is a port that sends readings to a computer for process control, and other codes in the range have it. Resolution is the smallest step on the display. Maximum permissible error is the most a reading can be out. To choose, pick the range: 6", 8" or 12".

Where this product is used

• Machining and fabrication workshops with coolant or cutting oil
• Toolroom and inspection measuring in inches or millimetres
• Everyday workshop checks up to 12" (300mm)

Features

• Rated IP67 for use around coolant, water, dust or oil
• ABSOLUTE measurement, so no origin reset is needed after switching on
• Resolution of 0.0005" / 0.01mm on an easy-to-read LCD
• Maximum permissible error of ±0.001" / ±0.02mm on the 6" and 8" models and ±0.0015" / ±0.03mm on the 12" model
• Automatic power on and off, with the origin remembered
• Battery cap that does not need a screwdriver, with an SR44 battery supplied and a life of about 5 years
• No SPC data output on these three codes
• ISO13385-1 compliant

Key specifications

Supplied with

• One caliper per option
• SR44 battery (included as standard)

Choosing the right option
