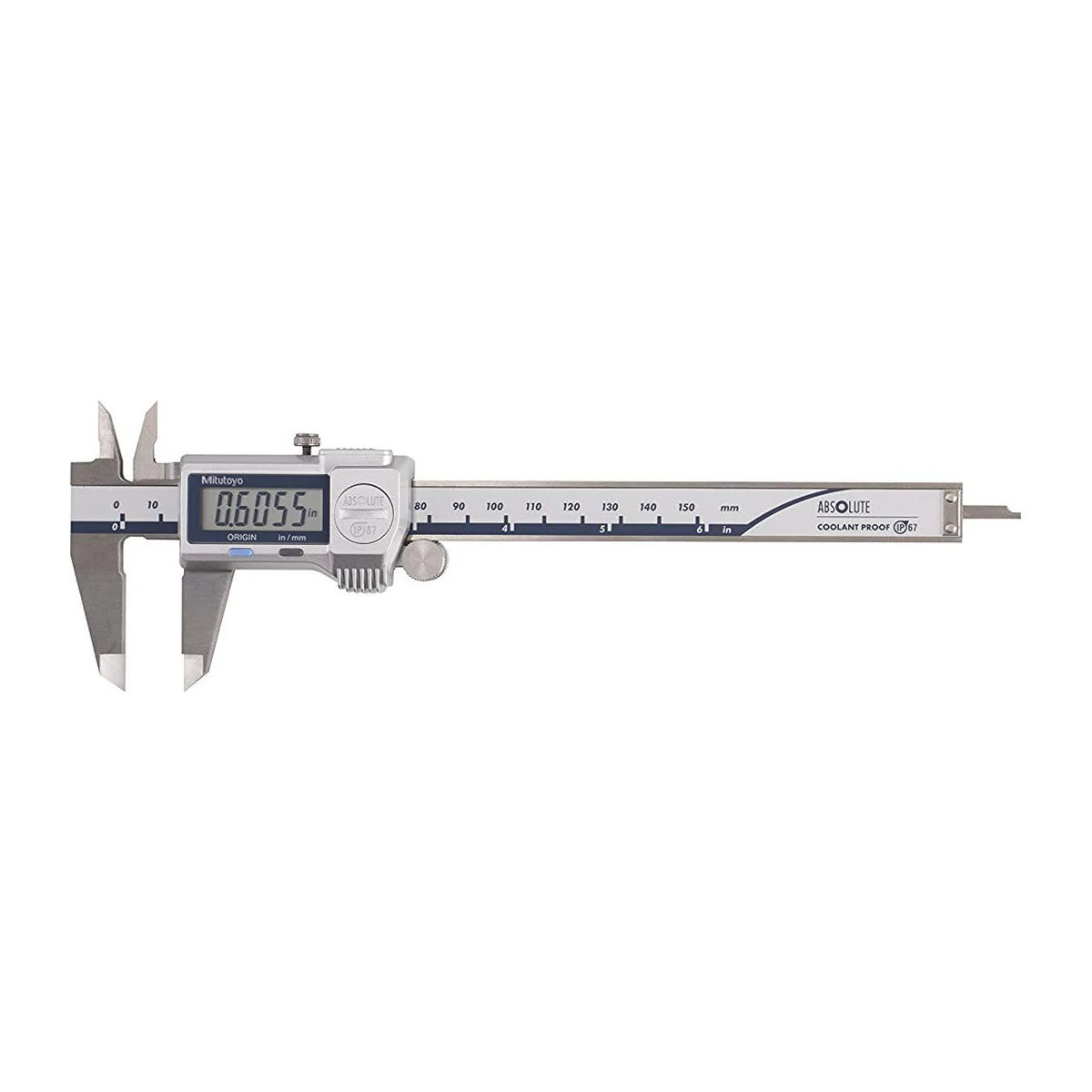

Mitutoyo 0 to 6" 150mm IP67 Coolant Proof Caliper

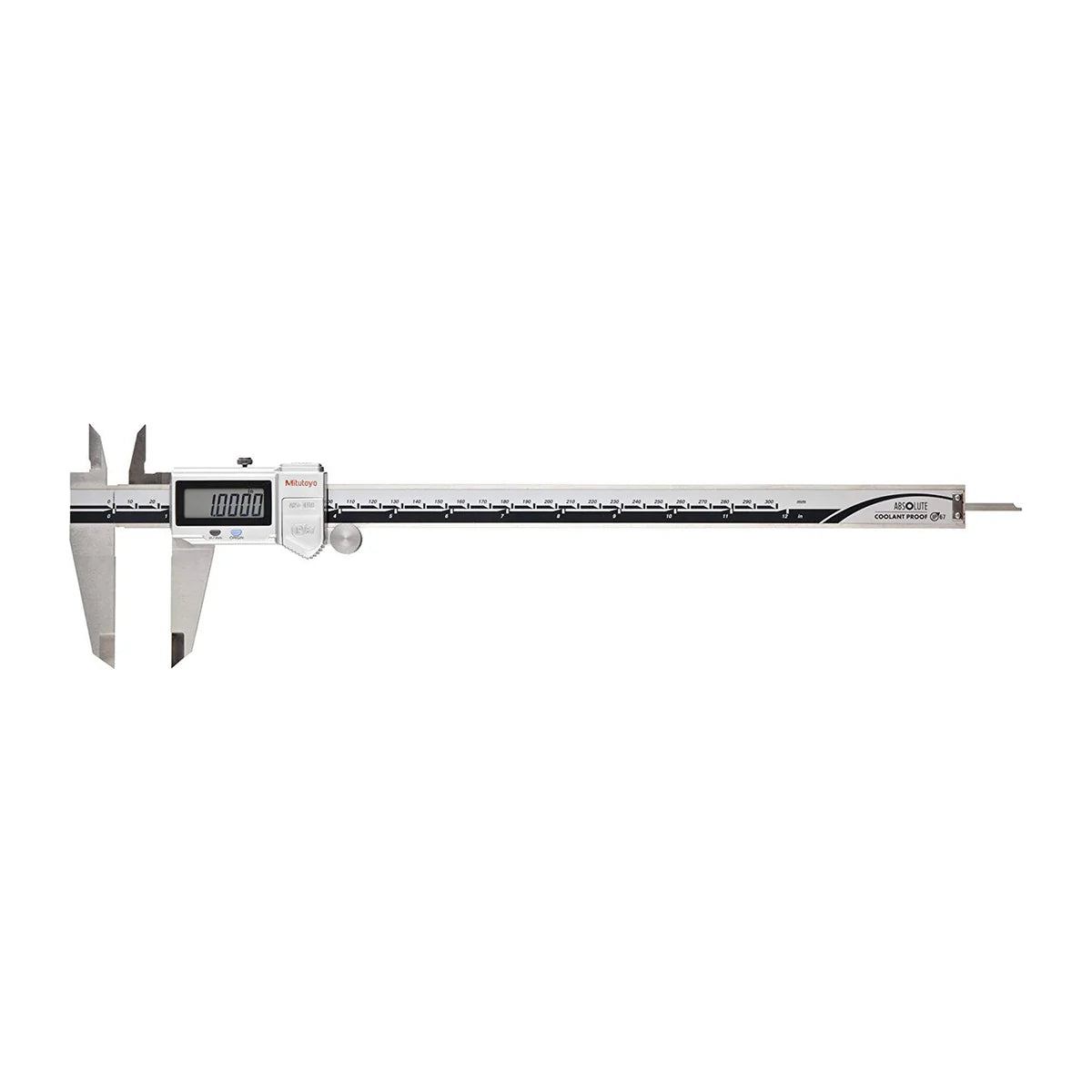

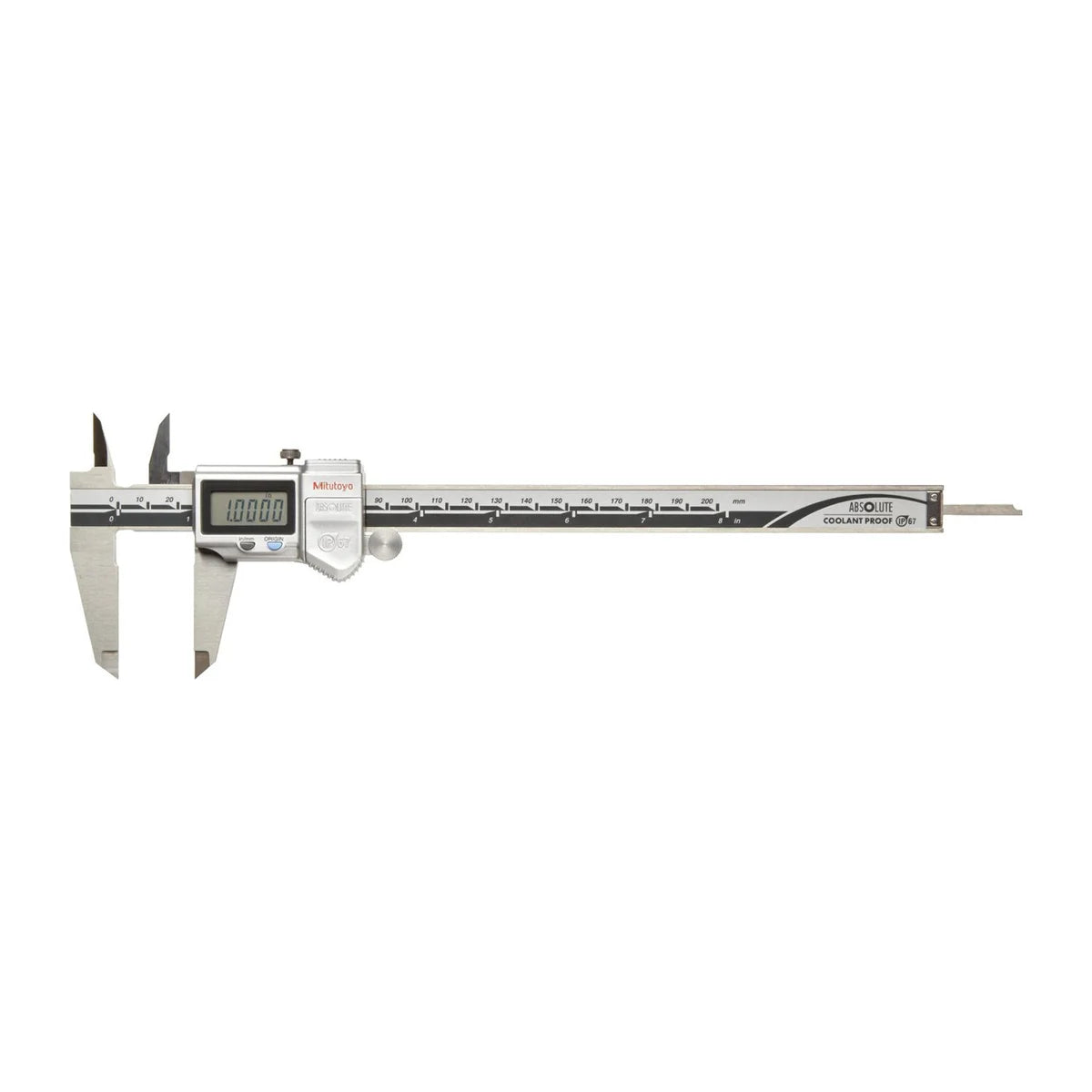

The Mitutoyo Series 500 Coolant Proof Caliper is a digital caliper for machine shops where coolant and cutting oil are everywhere. It is rated IP67, has an ABSOLUTE scale and a built-in SPC data output, and it reads in inches or millimetres. It comes in three sizes: 0 to 6" (150mm), 0 to 8" (200mm) and 0 to 12" (300mm).

IP67 is a dust and water rating. The 6 means dust cannot get in. The 7 means the caliper can be temporarily immersed in water. Some aggressive cutting oils or coolants can wear the seals over time, so check that your fluid suits it. An ABSOLUTE scale remembers where the jaws are, so you do not have to set zero each time you switch on. SPC output is a data port. With an optional cable it sends readings to a computer or data logger. The cable is not included. The battery supplied is for testing only, so fit a fresh one before you start. For clean, dry work, the standard Series 500 ABSOLUTE calipers have the same accuracy in the 150mm and 200mm sizes.

Where this product is used

• Measuring parts at the machine where coolant or cutting oil splashes
• Quality control and toolroom checks on outside, inside and depth sizes
• Logging readings to a computer or data logger through the SPC output

Features

• IP67 dust and water protection, and Mitutoyo air-leak tests every unit
• ABSOLUTE electromagnetic induction scale with no zero setting at power-on and no limit on slider speed
• Resolution of .0005" or 0.01mm, with inch and millimetre readings
• Built-in SPC output, with optional cable 05CZA624 (1m) or 05CZA625 (2m) sold separately
• Thumb roller and a flat depth bar
• Battery life of about 5 years under normal use on the 150mm and 200mm sizes
• Auto power-off after 20 minutes of non-use, with a low-battery alert
• Supplied with a certificate of inspection and a fitted plastic case

Key specifications

Supplied with

• Caliper
• Certificate of inspection
• Fitted plastic case
• SR44 battery for testing only, fit a fresh cell before use
• Not included: SPC cable 05CZA624 (1m) or 05CZA625 (2m), sold separately
