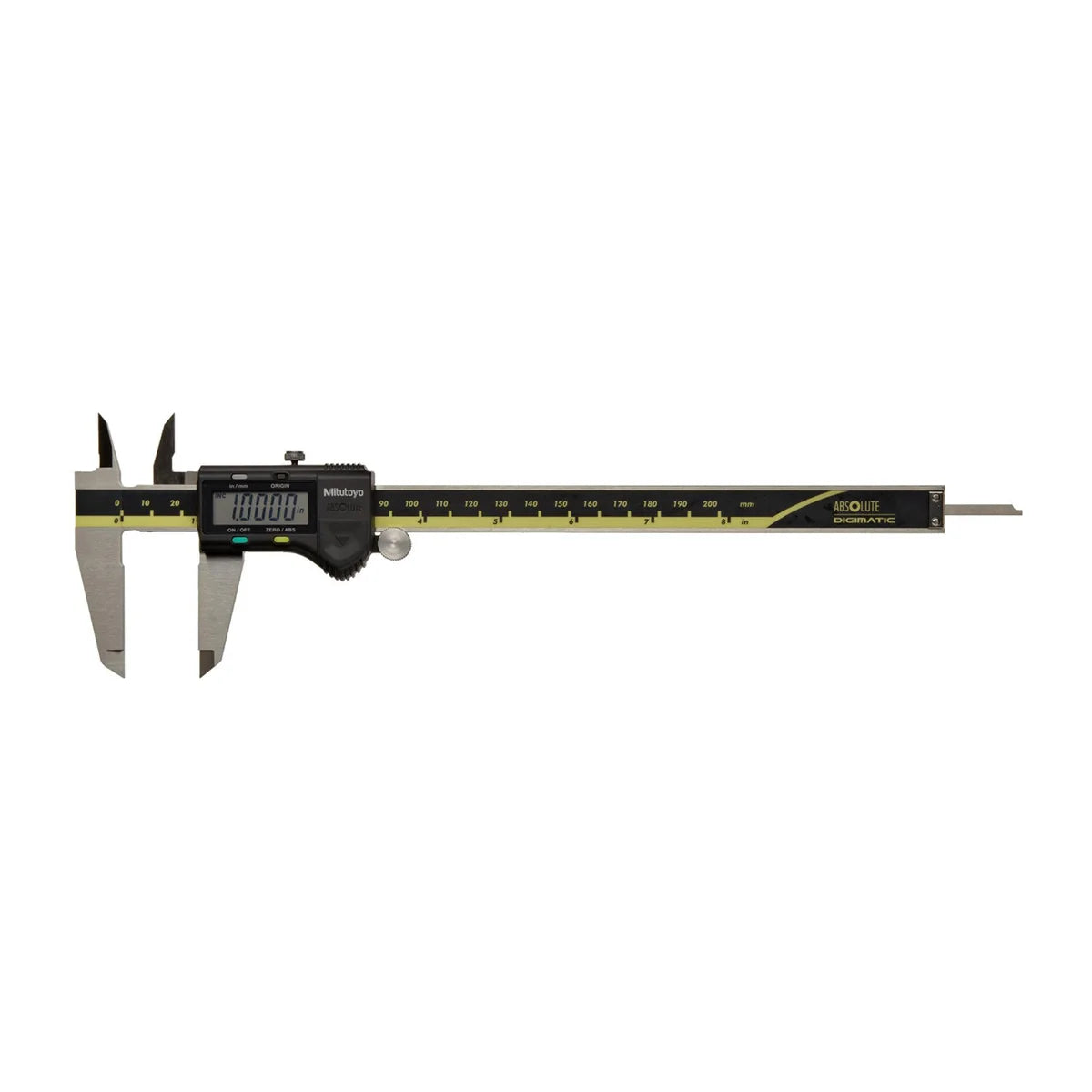

Mitutoyo 0 to 8" 200mm ABSOLUTE Caliper, No Output

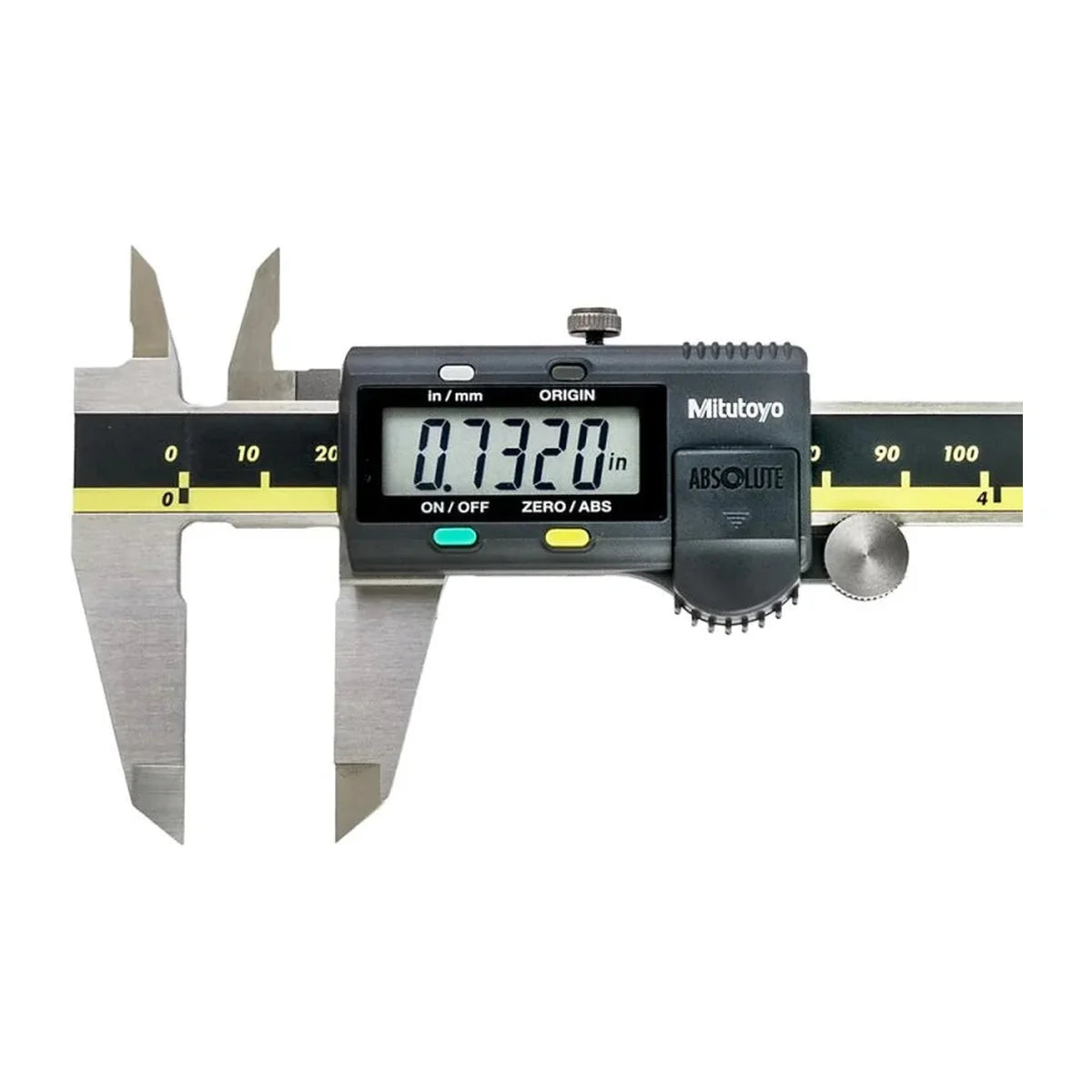

The Mitutoyo Series 500 ABSOLUTE Digimatic Caliper (no SPC output) is a plain, dependable digital caliper for the bench and the shop floor. It reads in inches or millimetres and comes in three sizes: 0 to 6" (150mm), 0 to 8" (200mm) and 0 to 12" (300mm). It has no data port, so it is a display-only tool.

Resolution is the smallest step the display shows. Accuracy is how close a reading is to the true size, and it is a separate figure. Here the resolution is .0005" or 0.01mm. The accuracy is ±.001" (±0.02mm) on the 6" and 8" sizes and ±.0015" (±0.03mm) on the 12" size. An ABSOLUTE scale remembers where the jaws are, so you do not have to set zero each time you switch on. Its AOS induction sensor is not affected by water or oil on the scale face. If you want to log readings, choose the version with SPC output. For wet machining, look at the coolant proof caliper.

Where this product is used

• Bench and toolroom measuring of outside, inside and depth sizes
• Workshop and maintenance checks where readings are written down by hand
• Inspection of parts up to 12" (300mm)

Features

• ABSOLUTE induction scale with no zero setting at power-on and no limit on slider speed
• Resolution of .0005" or 0.01mm, with inch and millimetre readings
• AOS sensor that is not affected by water or oil on the scale face
• Thumb roller and a flat depth bar
• Display character height of 9mm on the 150mm and 200mm sizes and 11mm on the 300mm size
• Low-battery alert
• Supplied with a certificate of inspection and a fitted plastic case
• No data output on these order numbers

Key specifications

Supplied with

• Caliper
• Certificate of inspection
• Fitted plastic case
• SR44 battery for testing only, fit a fresh cell before use

Choosing the right option
