Mitutoyo 0-150mm ABSOLUTE Caliper, SPC Output

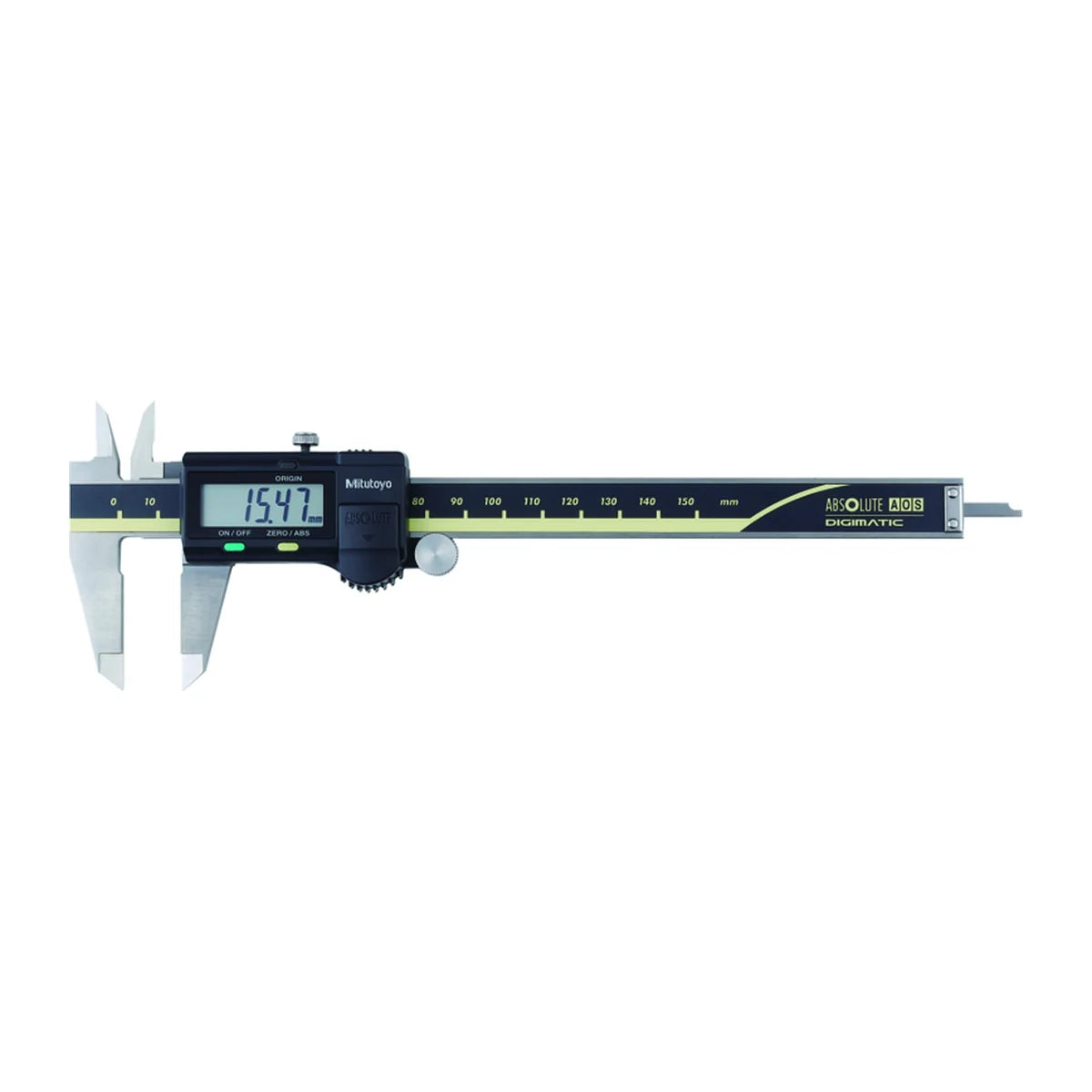

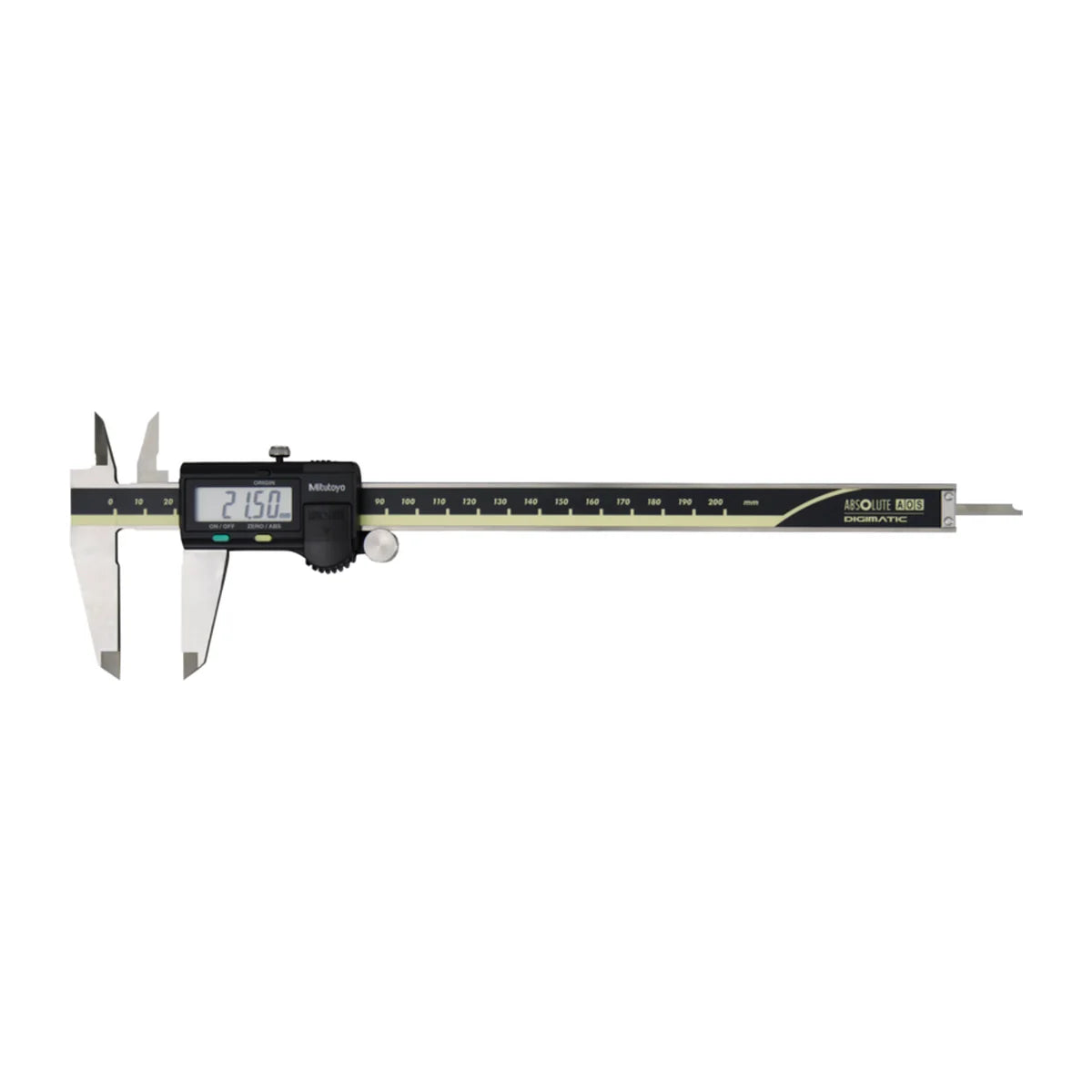

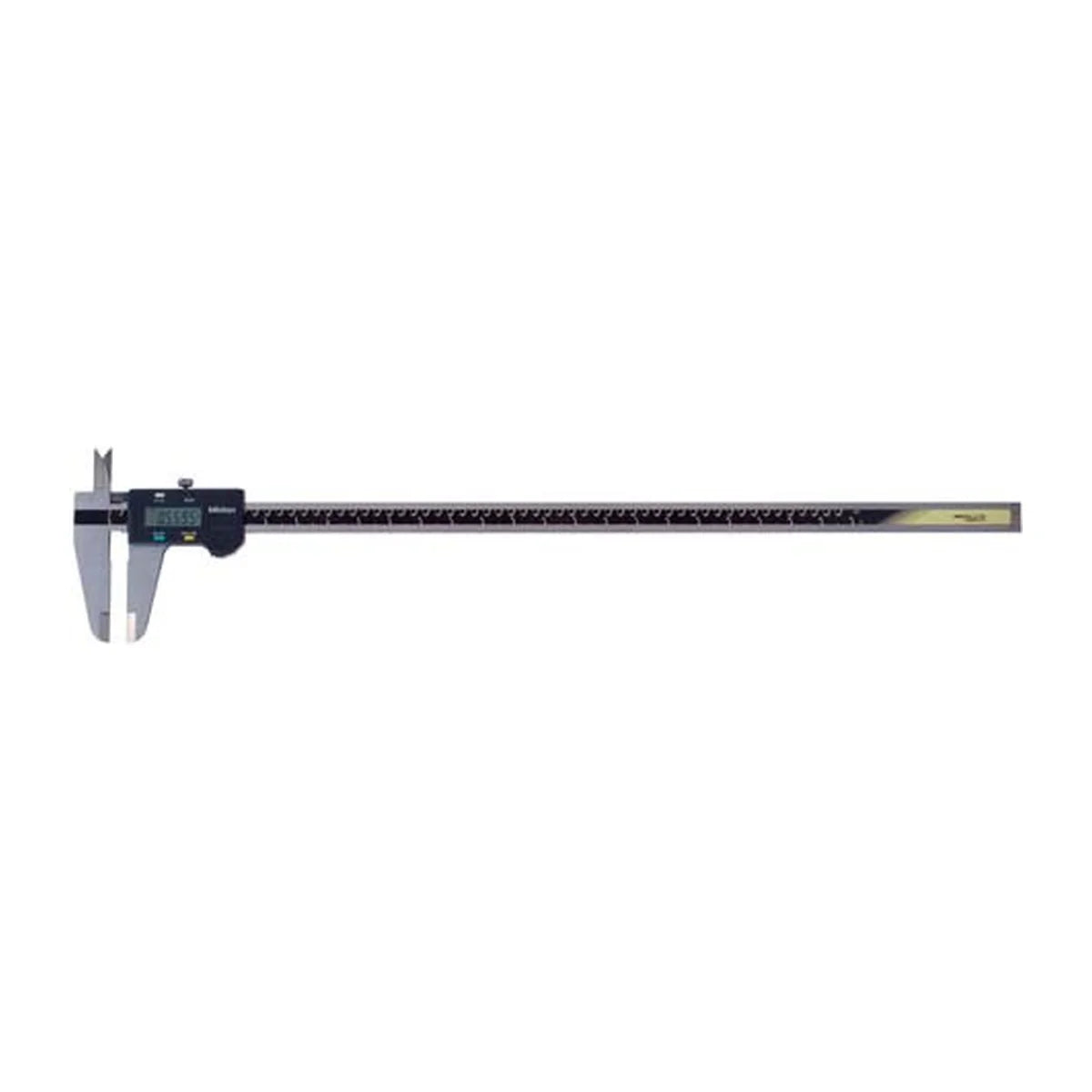

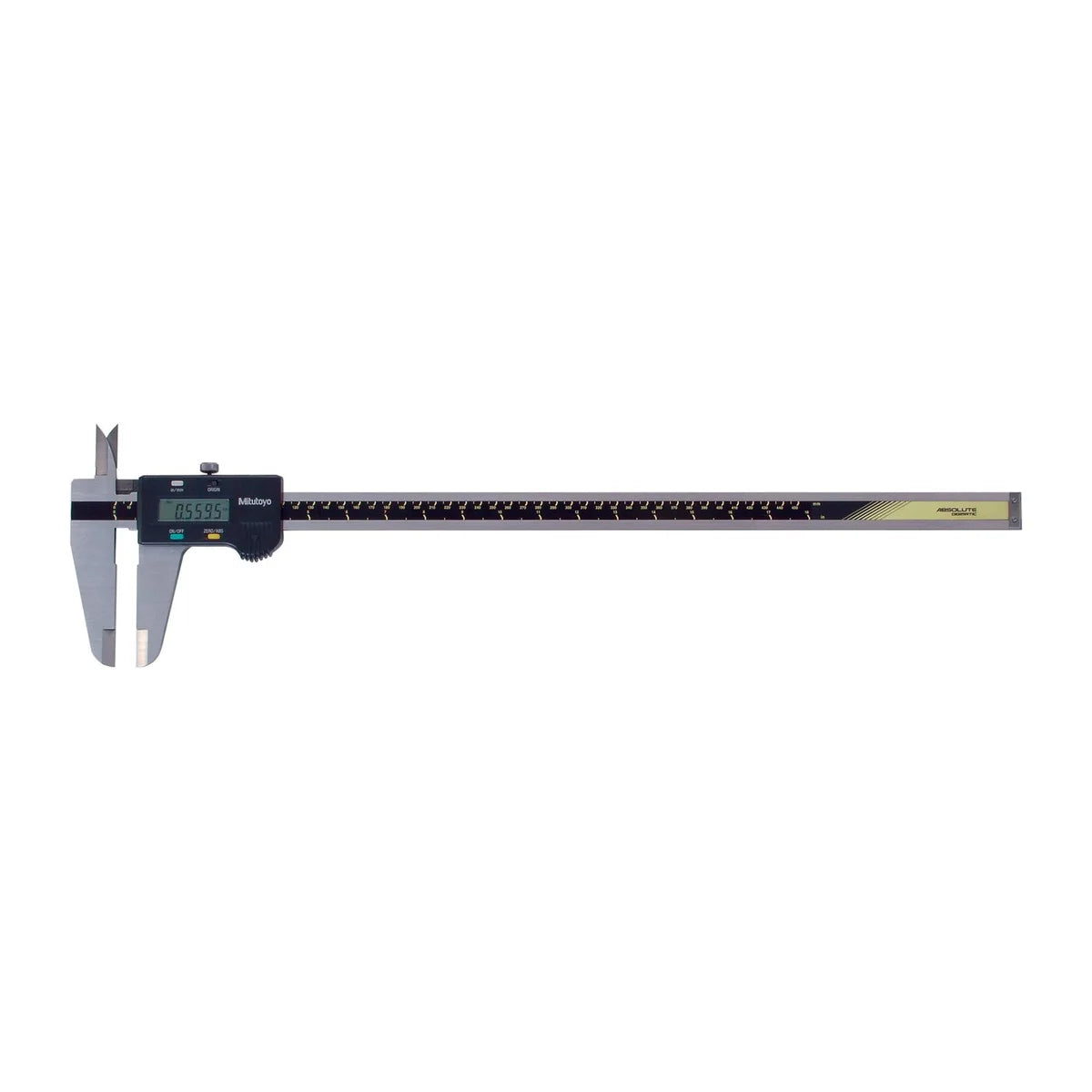

The Mitutoyo Series 500 ABSOLUTE Digimatic Caliper with SPC output comes in four sizes: 0 to 150mm, 0 to 200mm, 0 to 18" (450mm) and 0 to 24" (600mm). The two small sizes read in millimetres. The two large sizes are hardened stainless steel calipers that read in inches or millimetres. All four have an SPC data port.

Resolution is the smallest step the display shows. Accuracy is how close a reading is to the true size, and it is a separate figure. The small sizes have a resolution of 0.01mm and an accuracy of ±0.02mm. The large sizes read to .0005" or 0.01mm with an accuracy of ±.002" (±0.05mm). An ABSOLUTE scale remembers where the jaws are, so you do not have to set zero each time you switch on. SPC output is a data port. With an optional cable it sends readings to a computer or data logger. The cable is not included. For 150mm and 200mm work choose the small sizes, which carry a thumb roller. For parts up to 450mm or 600mm choose the large sizes.

Where this product is used

• Bench and shop floor measuring of outside, inside and depth sizes
• Checking large parts with the 450mm and 600mm sizes
• Logging readings to a computer or data logger through the SPC output

Features

• ABSOLUTE scale with no zero setting at power-on and no limit on slider speed
• SPC output with optional cable 959149 (1m) or 959150 (2m) sold separately
• Resolution of 0.01mm, and .0005" on the inch and millimetre sizes
• The 150mm and 200mm sizes use an AOS induction sensor that is not affected by water or oil on the scale
• The 450mm and 600mm sizes are hardened stainless steel
• Supplied in a fitted plastic case
• The 150mm and 200mm sizes come with a certificate of inspection

Key specifications

Supplied with

• Caliper
• SR44 battery
• Fitted plastic case
• Certificate of inspection on the 150mm and 200mm sizes
• Not included: SPC cable 959149 (1m) or 959150 (2m), sold separately
