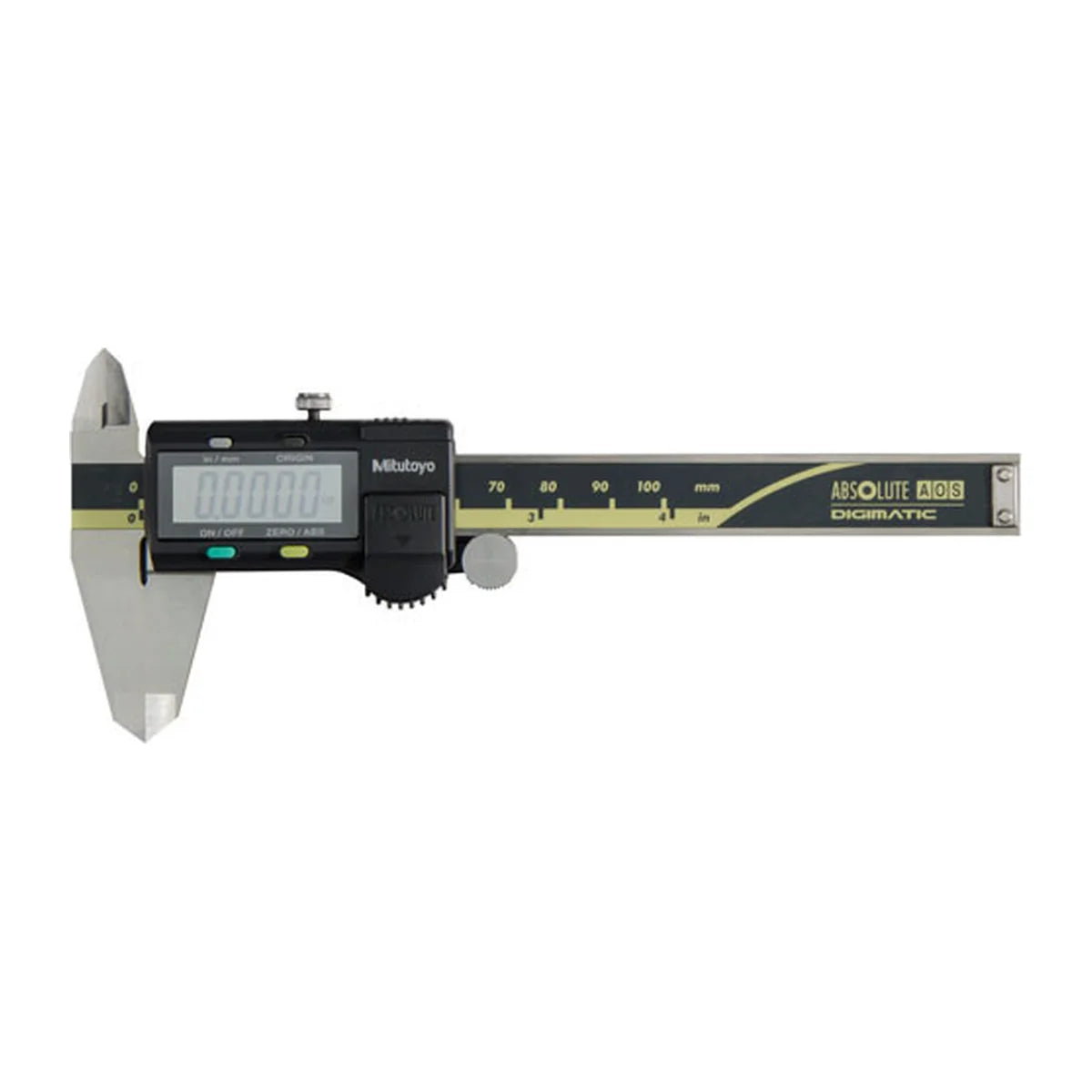

Mitutoyo 0 to 4" 100mm ABSOLUTE Caliper, SPC Output

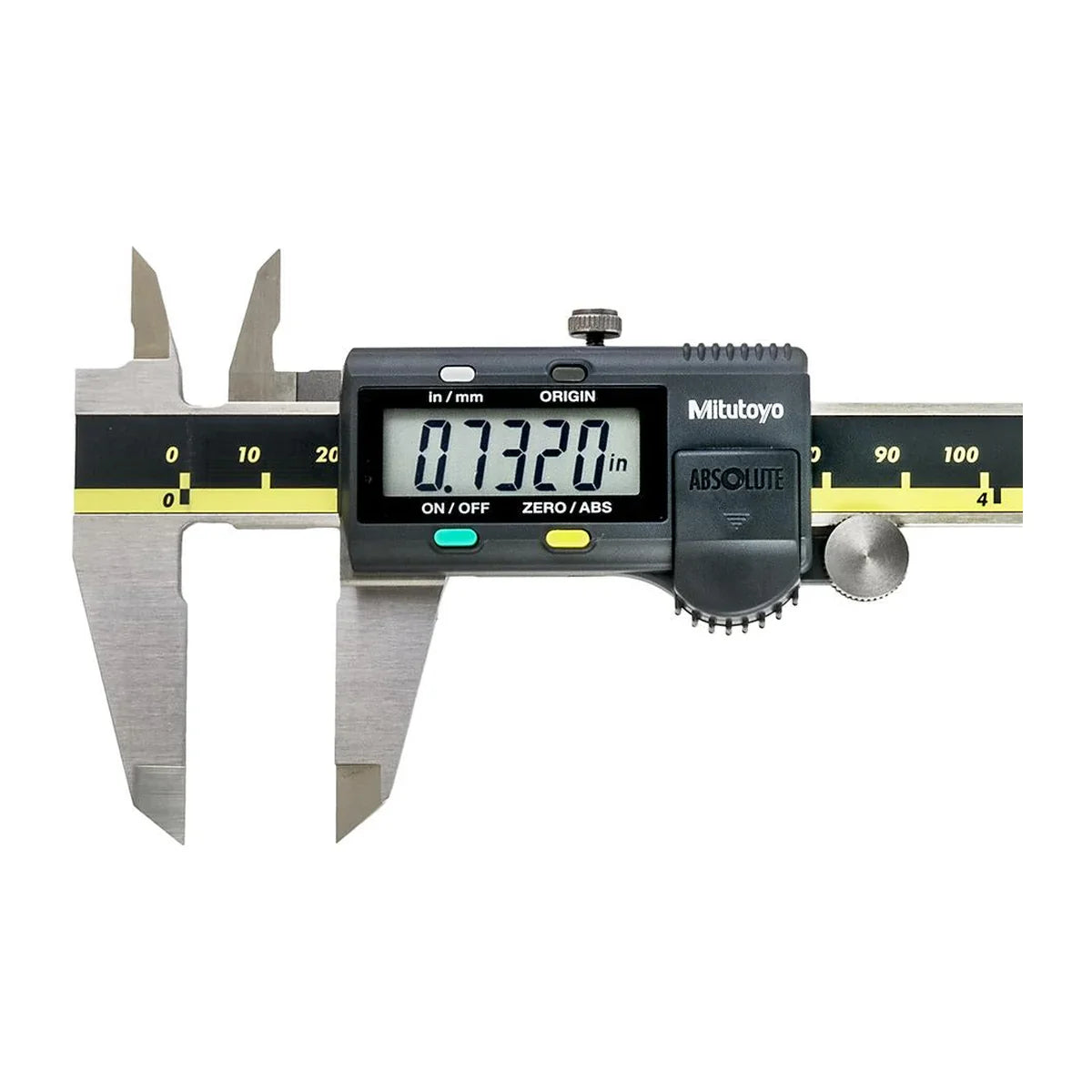

The Mitutoyo Series 500 ABSOLUTE Digimatic Caliper (inch/metric, with SPC output) reads in inches or millimetres and comes in four sizes: 0 to 4" (100mm), 0 to 6" (150mm), 0 to 8" (200mm) and 0 to 12" (300mm). It has an SPC data port and an ABSOLUTE scale. The 0 to 4" size has a rod depth bar. The others have a flat depth bar.

Resolution is the smallest step the display shows. Accuracy is how close a reading is to the true size, and it is a separate figure. Here the resolution is .0005" or 0.01mm. The accuracy is ±.001" (±0.02mm) on the 4", 6" and 8" sizes and ±.0015" (±0.03mm) on the 12" size. An ABSOLUTE scale remembers where the jaws are, so you do not have to set zero each time you switch on. SPC output is a data port. With an optional cable it sends readings to a computer or data logger. The cable is not included. If you do not need the data port, the same sizes are available without SPC output. For wet work look at the coolant proof caliper.

Where this product is used

• Workshop and inspection checks of outside, inside and depth sizes
• Machine shop and fitting work in inches or millimetres
• Logging readings to a computer or data logger through the SPC output

Features

• ABSOLUTE scale with no zero setting at power-on and no limit on slider speed
• AOS induction sensor that is not affected by water or oil on the scale
• Resolution of .0005" or 0.01mm, with inch and millimetre readings
• SPC output with optional cable 959149 (1m) or 959150 (2m) sold separately
• Thumb roller on every size
• Rod depth bar of 1.9mm diameter on the 0 to 4" size, flat depth bar on the others
• Supplied with a certificate of inspection and a fitted plastic case

Key specifications

Supplied with

• Caliper
• Certificate of inspection
• Fitted plastic case
• SR44 battery for testing only, fit a fresh cell before use
• Not included: SPC cable 959149 (1m) or 959150 (2m), sold separately
