Mitutoyo 547-211A ABSOLUTE Depth Gauge 0-200mm

The Mitutoyo Series 547 is a digital depth gauge with an indicator head on a flat base. It measures depth up to 200mm (8"). Toolrooms, quality control teams and inspectors use it for hole and step depth. The easy-to-read display helps prevent misreading, and a bar graph on the screen shows small movements, such as the approach to tolerance.

It is an absolute type, so it keeps track of its zero point once you set it. It also has a data output function. That lets it send readings to a computer for statistical process control (SPC). Resolution is the smallest step on the display. Accuracy is how far a reading can be out. They are different things, so check both. To choose, take the 547-211A for metric work or the 547-217A if you want to read inches as well.

Where this product is used

• Measuring hole and step depth in toolrooms
• Quality control depth checks that feed an SPC system
• Inspecting machined parts where a clear digital reading cuts reading errors

Features

• ABSOLUTE type that keeps track of its zero point once set
• Easy-to-read digital display with a bar graph for watching small movements
• Data output function for SPC and measurement systems
• Extension rods give a wide probing range, 5 rods on the metric model and 4 on the inch/metric model
• Carbide-tipped ball contact point
• Hardened, precision ground and micro-lapped reference face on the base
• Functions include zero-setting, presetting, tolerance judgment, peak detection and display holding
• Measuring force is 1.5 N or less

Key specifications

Supplied with

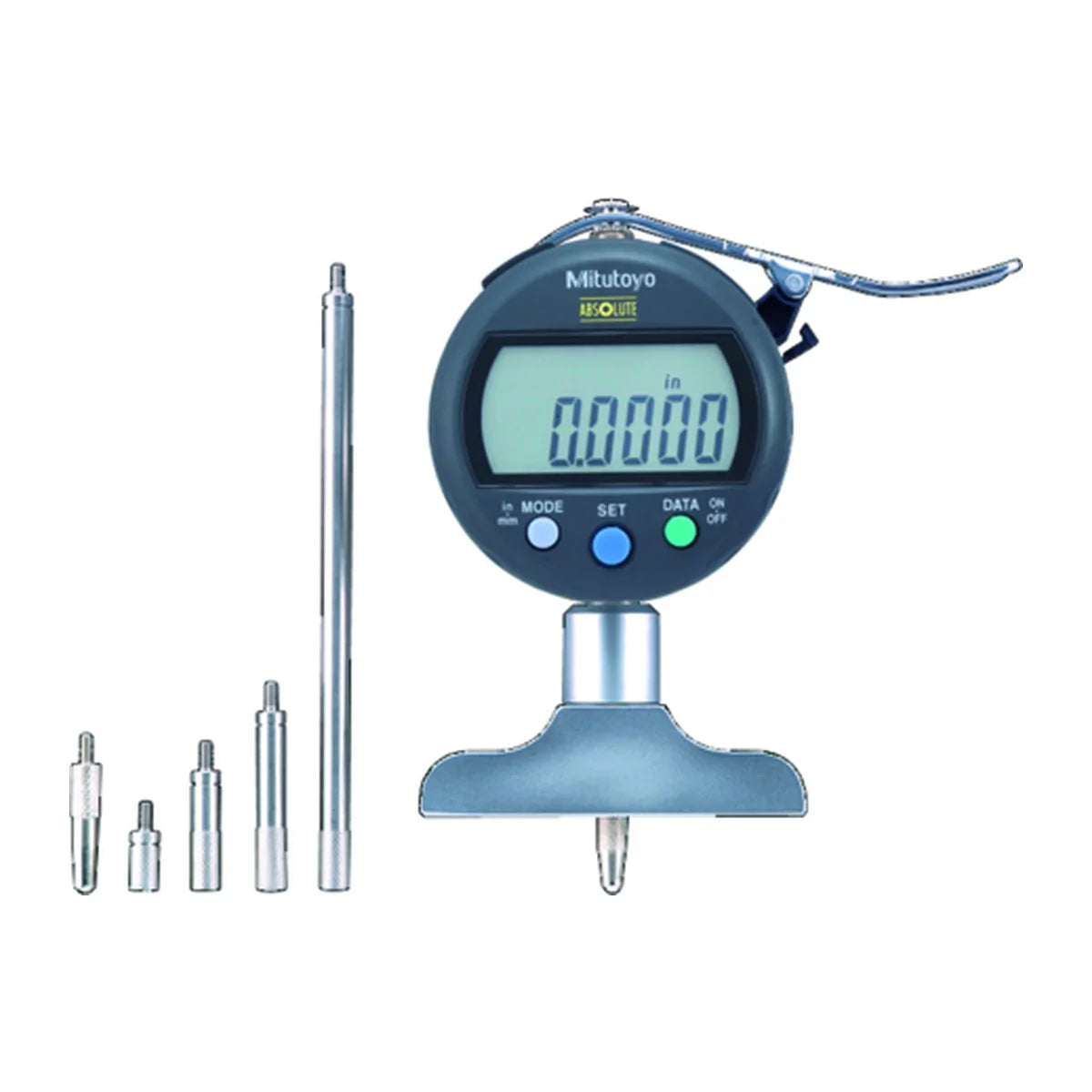

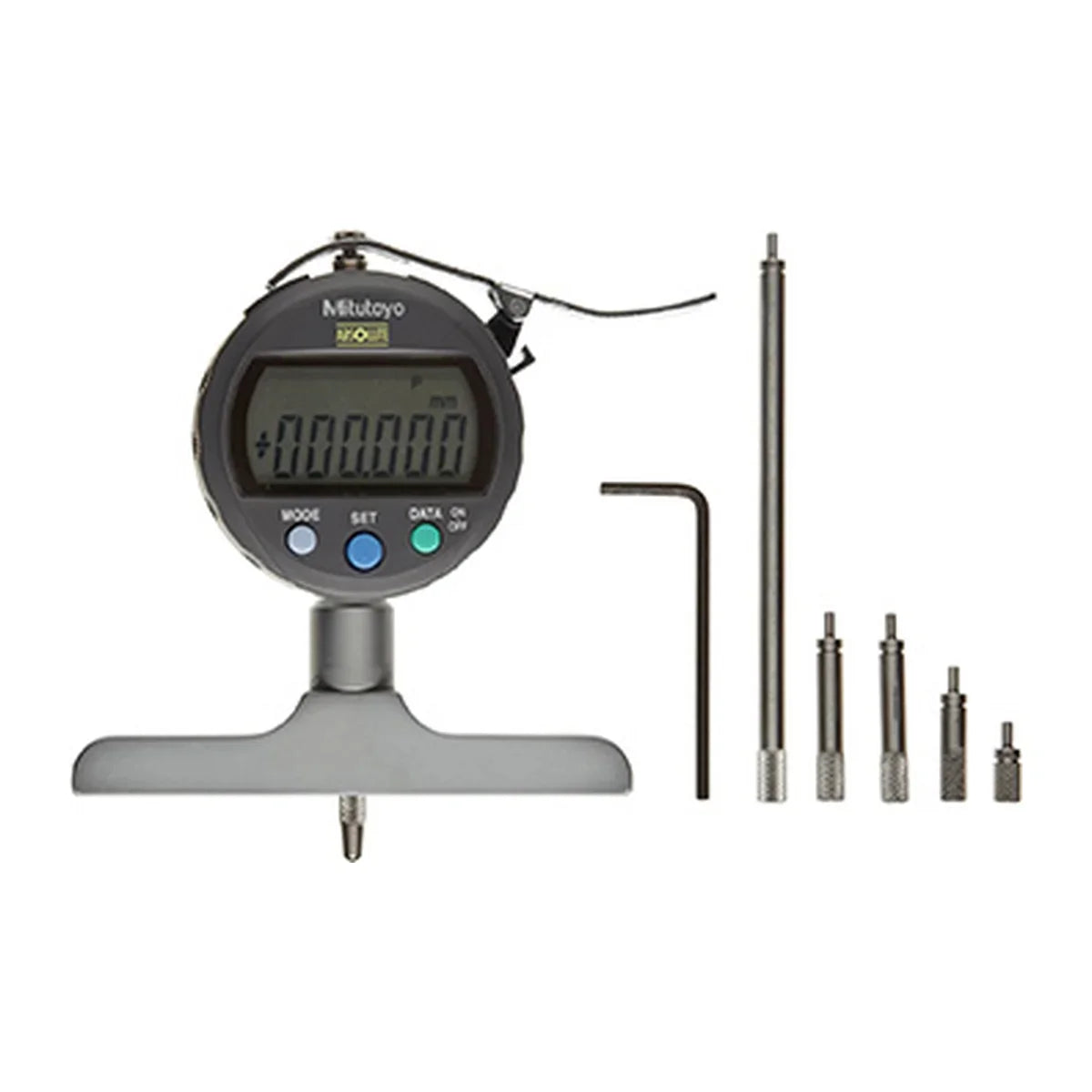

• Depth gauge with indicator head and base
• Extension rods (5 for 547-211A, 4 for 547-217A)
• Carbide-tipped ball contact point

Choosing the right option
