Mitutoyo 0-18" 450mm Digimatic Height Gauge

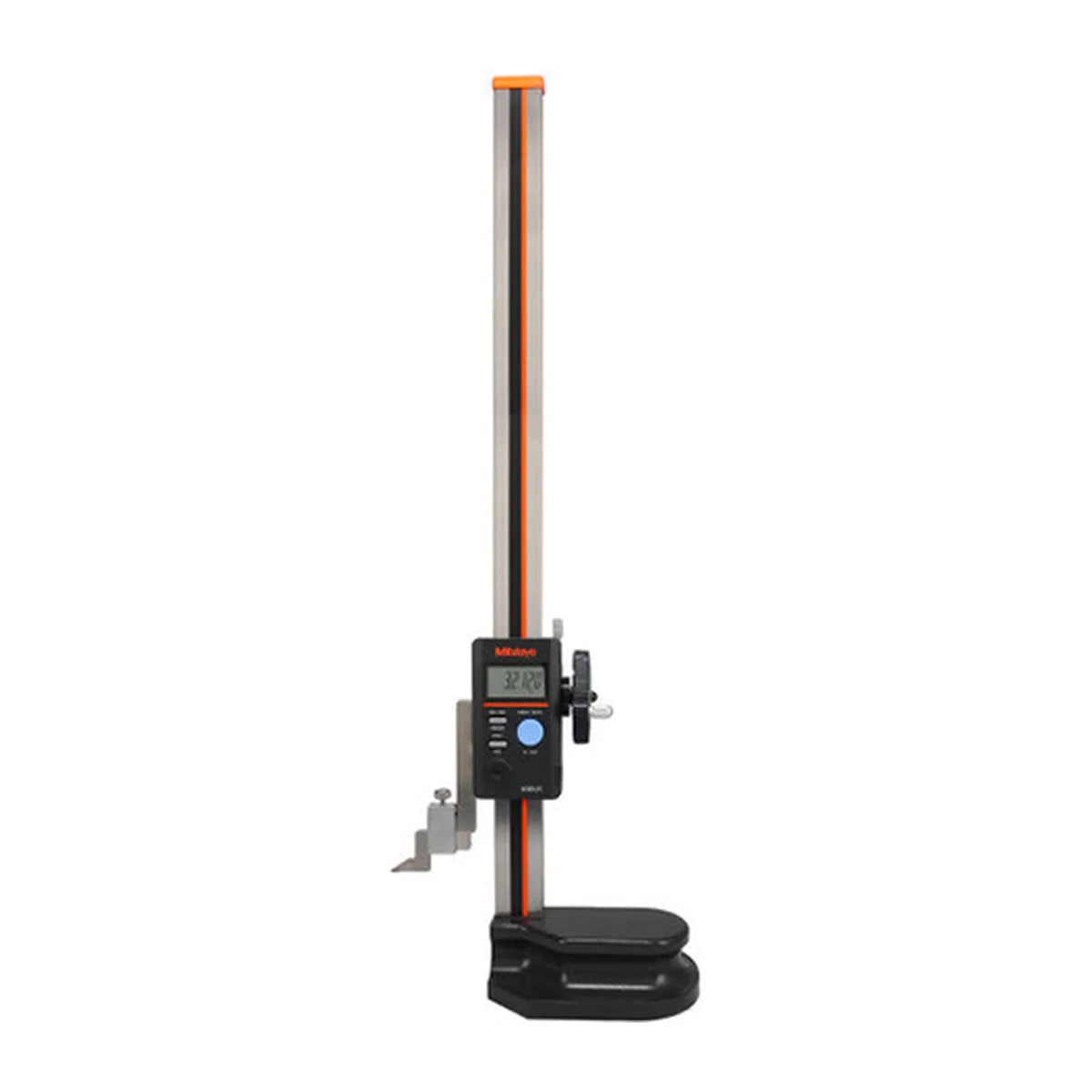

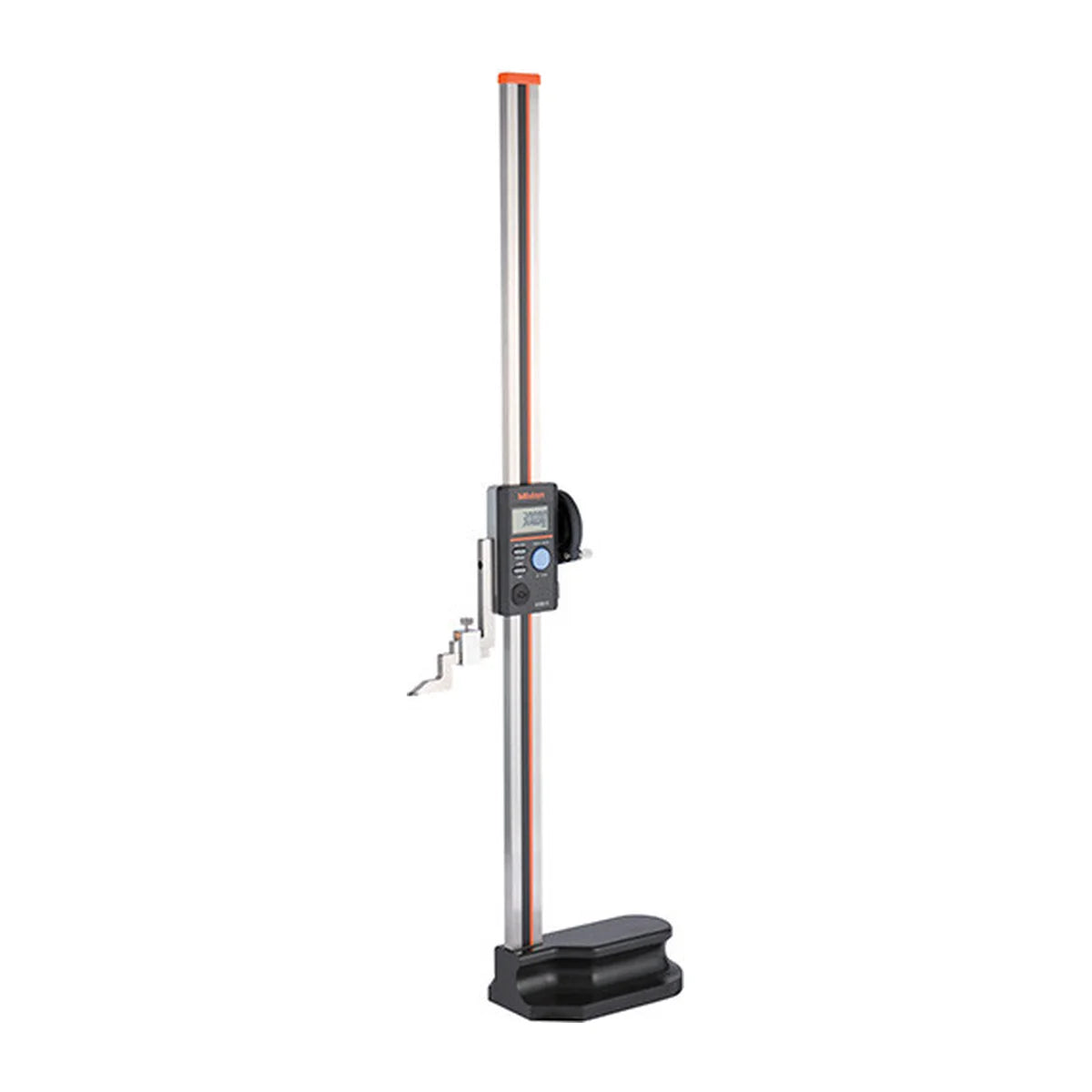

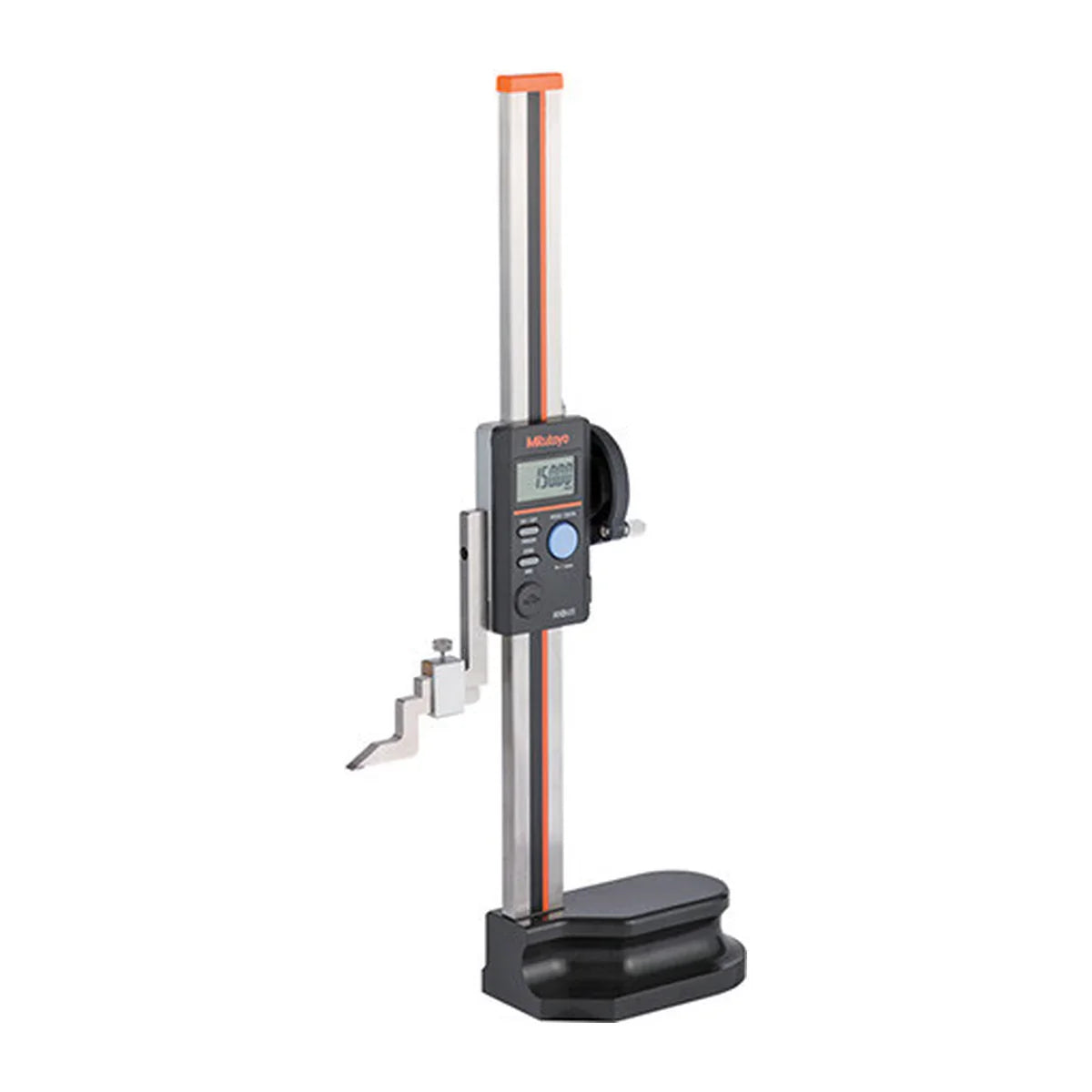

The Mitutoyo Series 570 ABSOLUTE Digimatic Height Gauge is a digital height gauge for use on a surface plate. It has an ABSOLUTE scale, a large slider feed wheel and a big 12mm display, and it reads in inches or millimetres. It comes in three sizes: 0 to 12" (300mm), 0 to 18" (450mm) and 0 to 24" (600mm). A carbide-tipped scriber and scriber clamp are supplied.

The ABSOLUTE scale remembers its origin, so you do not set the reference point at every power-on. Resolution (the smallest display step) is .0005" or 0.01mm on all three sizes. Accuracy is a separate figure: ±.0015" (±0.03mm) on the 12" size and ±.002" (±0.05mm) on the 18" and 24" sizes. The data port needs an optional cable (905338 at 1m or 905409 at 2m), which is not supplied. Choose the size by the tallest part you measure.

Where this product is used

• Height and step measuring on a surface plate
• Marking out and scribing with the carbide-tipped scriber
• Inspection and quality control of machined parts
• Logging readings through the data output with an optional cable

Features

• ABSOLUTE linear encoder with no reference setting at every power-on
• Large and smooth slider feed wheel
• Large 12mm display, which is 20% bigger than the previous model
• Three-button operation with an enlarged DATA/HOLD button
• Resolution of .0005" or 0.01mm, with inch and millimetre readings
• Digimatic d1 data output with an optional cable
• Case designed for easy fitting of the optional U-WAVE wireless unit
• Battery life of about 5 years under normal use
• Supplied with a carbide-tipped scriber, scriber clamp and SR44 battery

Key specifications

Supplied with

• Height gauge
• Carbide-tipped scriber and scriber clamp
• SR44 battery
• Not included: data cable 905338 (1m) or 905409 (2m), sold separately

Choosing the right option
